TM-600UVF UV curing machine

Model No.︰

TM-600UVF

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 SET

Share on:

Product Description



UV Curing Machine TM-600UVF   be fit to  UV curing drying ,for plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying ,  UV pritning, packing products UV drying .

 UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

1.  Model  NO. TM-600UVF
2. UV Drying  products:600*100*2000mm
3.Conveyor belt size:L2000* W600MM
4.UV Lamp power:2PCS*3KW /380V
5.Total wattage:7.5KW
6. Wind fan wattage: 500W/380V
7.motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min

9.       Speed change ways:Continue
10.     UV Machine  Dimension:L*W*H2020*800*1350
11.      Weight:350kg









Model number TM-500UVF TM-600UVF TM-700UVF TM-800UVF TM-900UVF TM-1200UVF
max product width 500mm 600mm 700mm 800mm 900mm 1200mm
max product length 2000mm 2000mm 2000mm 3000mm 3000mm 3000mm
 UV Process shine area 500*2000mm 600×2000mm 700×2000mm 800*3000mm 900*3000mm 1200*3000mm
  conveyer speed: 0-10m/min 0-10m/min 0-10m/min 0-10m/min 0-10m/min 0-10m/min
UV Lamp power 3KW ×2PCS/ 3KW ×2 PCS/ 3KW ×2 PCS/ 5KW*2pcs 5.6KW*2PCS 5.6KW*2 PCS
UV Machine  Dimension: 2020×550×1200mm  2020*650*1200mm  2020*750*1200mm  3020*850*1200mm 3020*950*1200mm 3020*1250*1200mm


Free Fitting :
TWO pcs UV lsmp(3KW)

Testing Please provide:
1. 380V power supply.



























Price Terms︰ FOB POSRT OF SHEENZHEN CHINA
Packing︰ WOODEN CASE
Lead Time︰ 7 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ uv curing ,uv shine coating ,UV oven
Gross Weight︰ 350kg
Main Parts︰ uv lamp
Free Fittings ︰ UV lamp

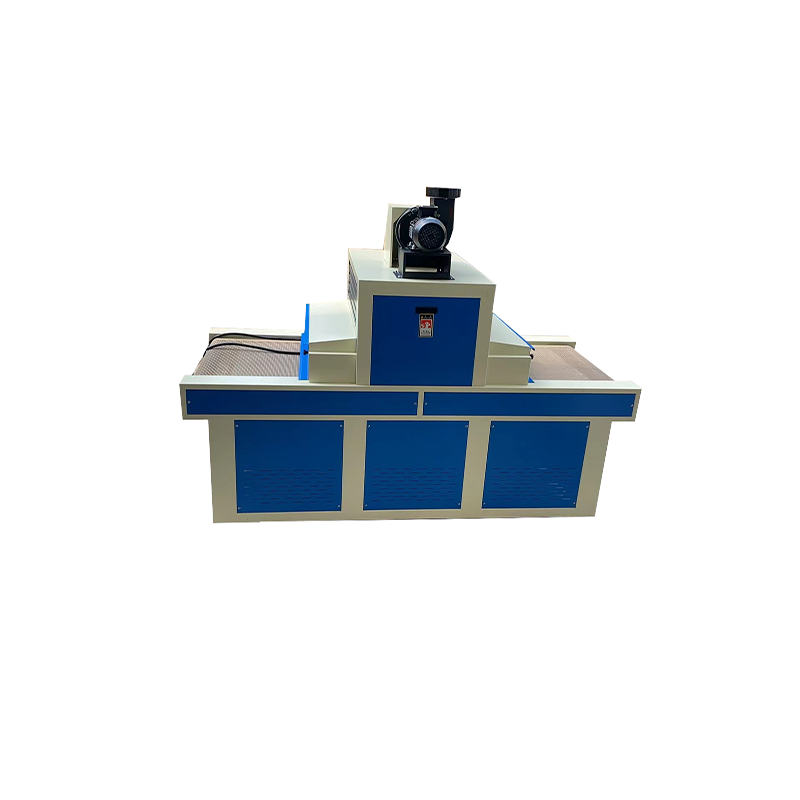

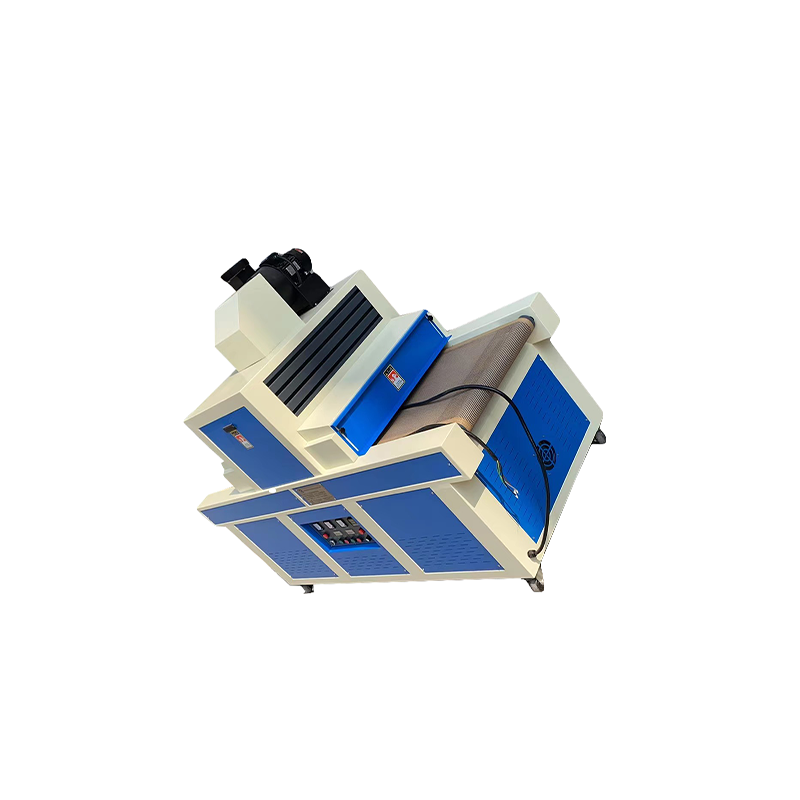

Product Image
