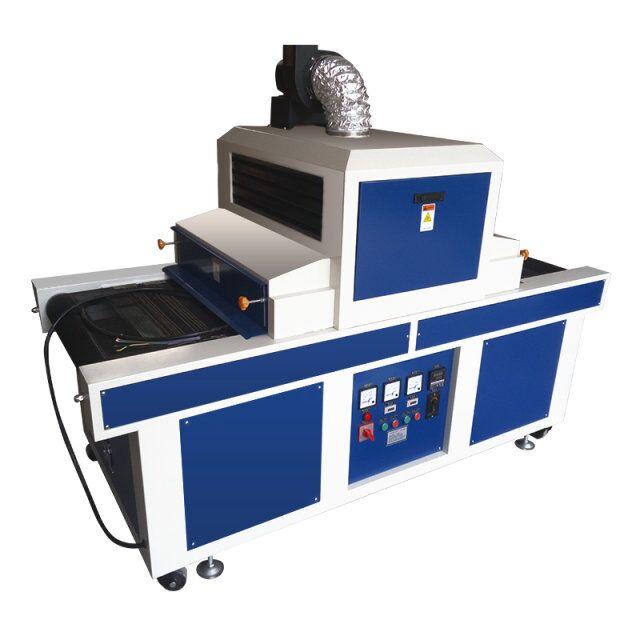

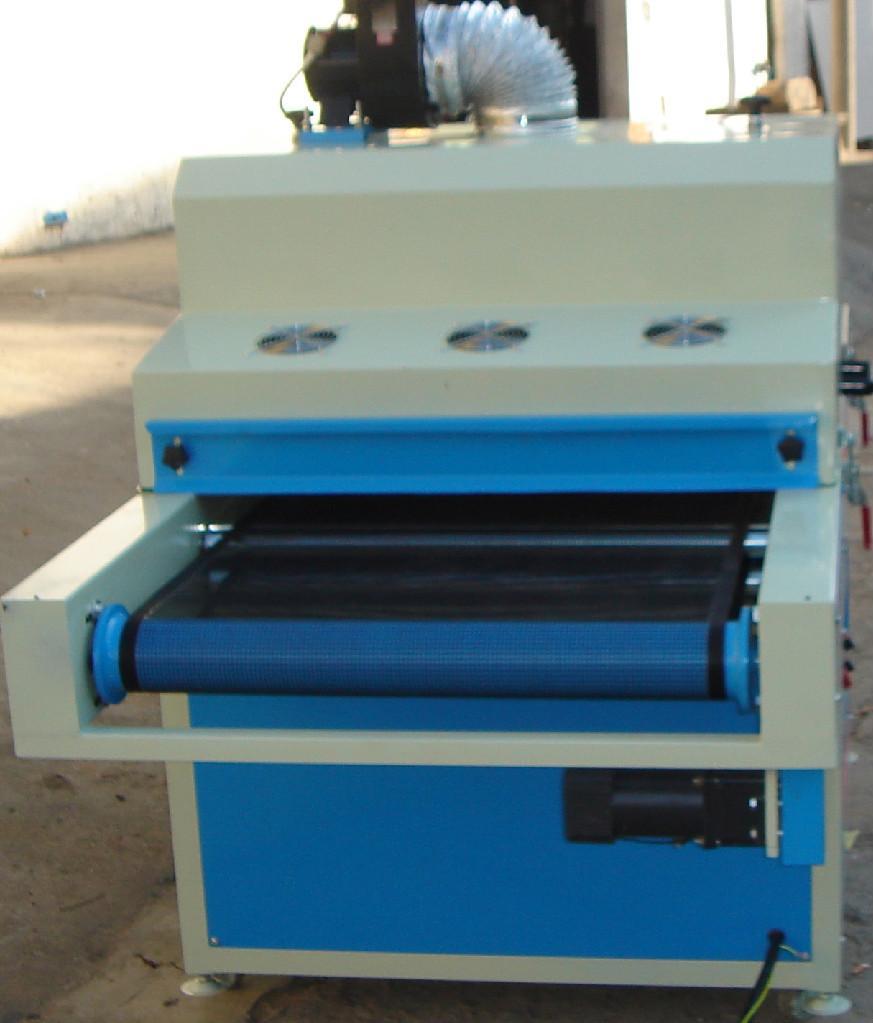

UV Drying Machine TM-500UVF

Our UV Curing Machine TM-500UVF   be fit to  UV drying , Paper UV PRITNING  ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

1. Model  NO. TM-500UVF
2. UV Drying  products：500*100*2000mm
3. Conveyor belt size：L2000* W500MM
4.UV Lamp power：2PCS*3KW /380V
5.Total wattage：7.5KW
6.Wind fan wattage: 500W/380V
7.motor wattage：1000W/1P/380V
8.Conveyor speed：0~10m/min
9.Speed change ways：Continue
10.UV Machine  Dimension：L*W*H2020*700*1350
11.Weight：250kg


 Free Fitting :
TWO pcs UV lamp(3KW)

Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.

Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----7days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 1.3
Gross Weight ---250KG
Main Parts--  2 PCS UV lamps 3KW per pcs
Application area--UV PRINTER ,UV GLUE, UV DRYING ,UV CURING
