Round/Plane Surface UV Drying Machinery

Model No.︰

LC-UV4000S2

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 unit

Share on:

Product Description

Description
LC-UV4000S2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it also can be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with diffrent bottles. Suitable for bottles made by plastic, Metal, Glass ETC.

1 .UV drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3.  UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate

parameter
1. Max UV curing round bottle high: 320mm

2. Max  UV curing Products width: 400mm

3. Container mouth diameter range: 12-24mm

4. curing size of workpiece: Cylinder  products: 320*400mm

5. Conveyor speed:0~10m/min

6. (United Kingdom)UV lamp power: 4KW

7.  UV Drying products  speed:1800~3000PCS/HR

8.Total power:5KW

9. Machine dimension: L:2000mm W:800mm H:1500mm

Package dimensions:  216*101*187cm

Package weight:  411kg



Free Fitting:
1 pcs UV lamp(4KW)
Testing Please provide:
1. 380V power supply.





Price Terms︰ FOB SHENZHEN PORT CHINA
Packing︰ PLYWOOD CASE
Lead Time︰ 7 DAYS AFTER CONFIRM PAYMENT
Standards Certificate︰ CE
Application area︰ Bottle printing UV INK ,Plane products printing UV ink
Gross Weight︰ 411kg
Main Parts︰ Primary UV lamps made by England
Free Fittings ︰ tooling & one pcs UV lamp
H.S.code︰︰ 84439000

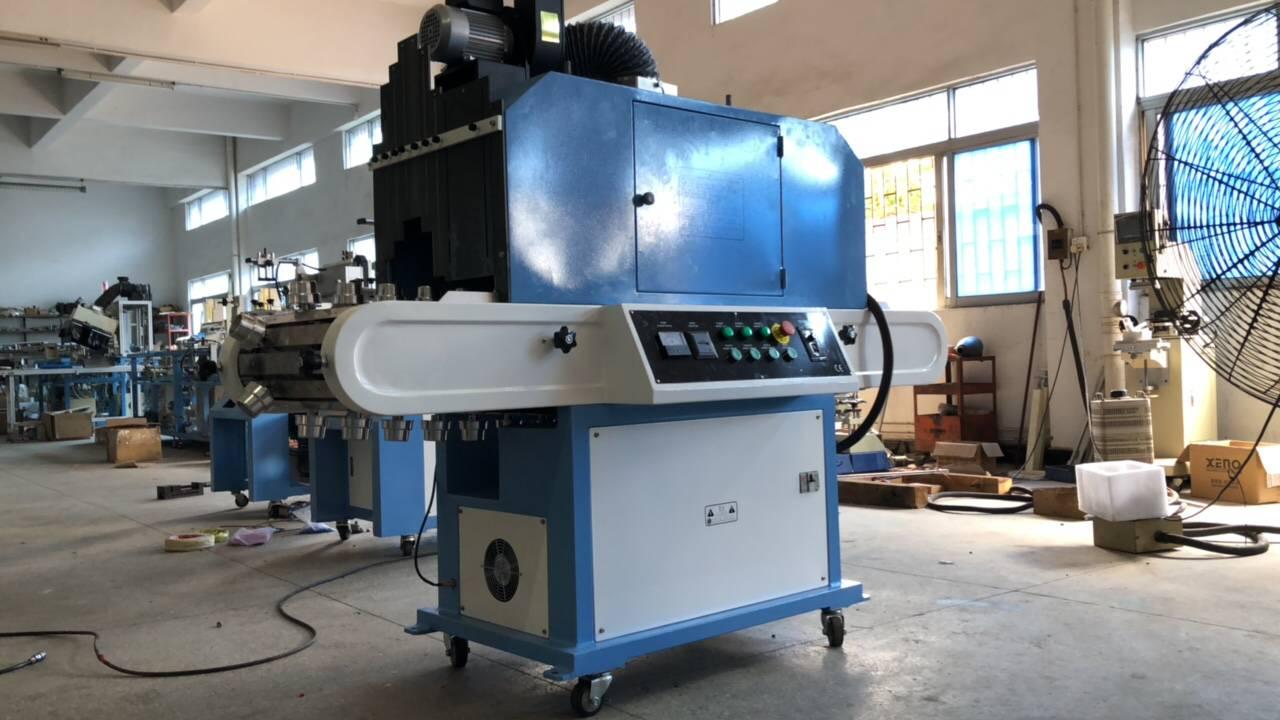

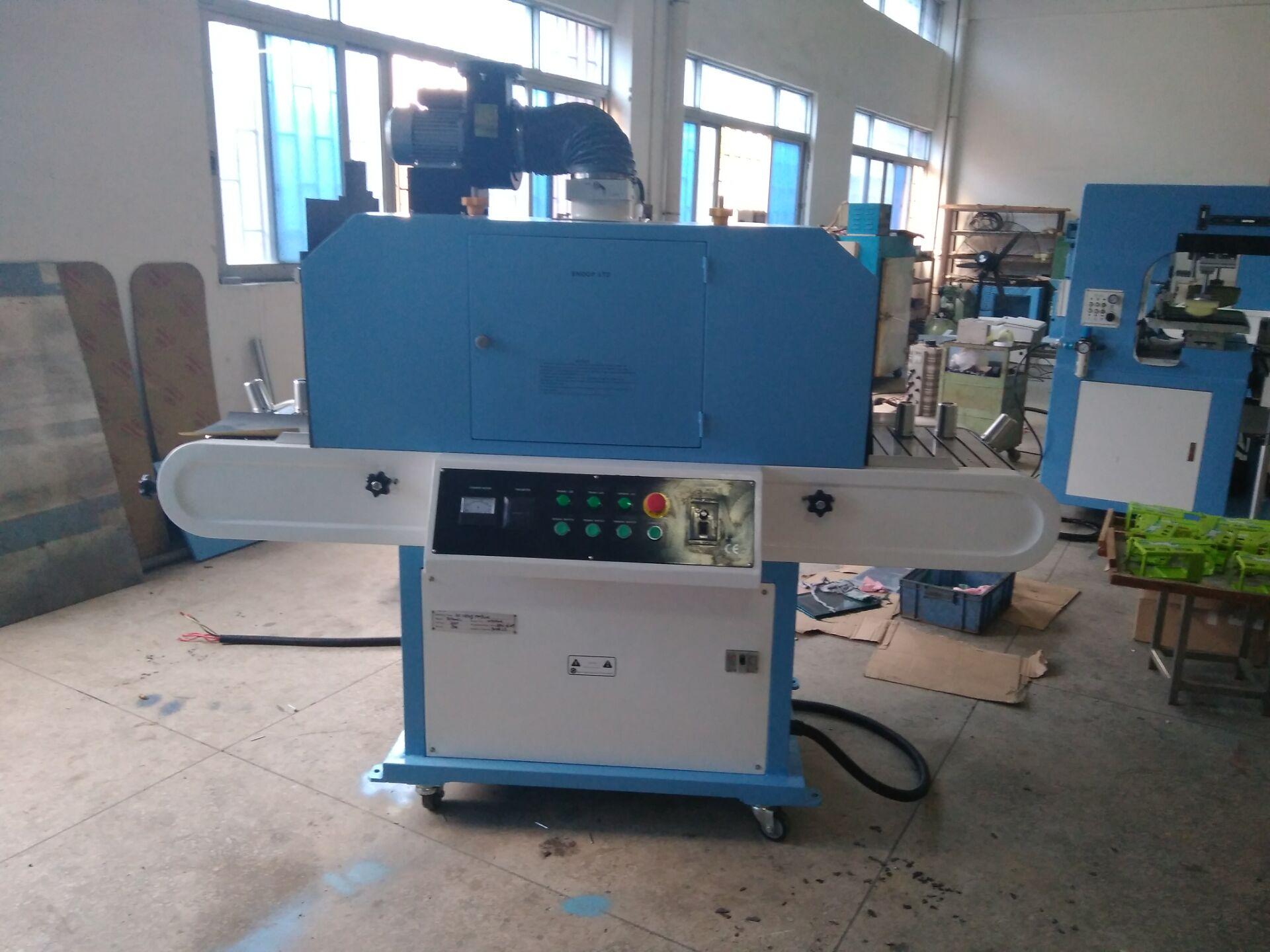

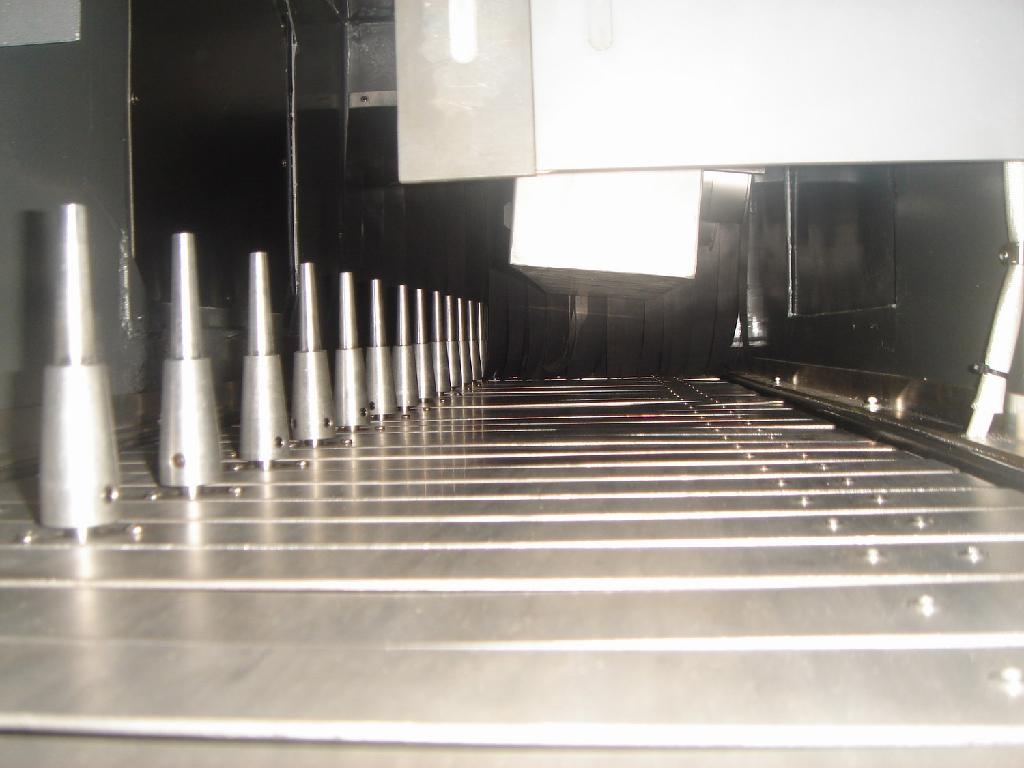

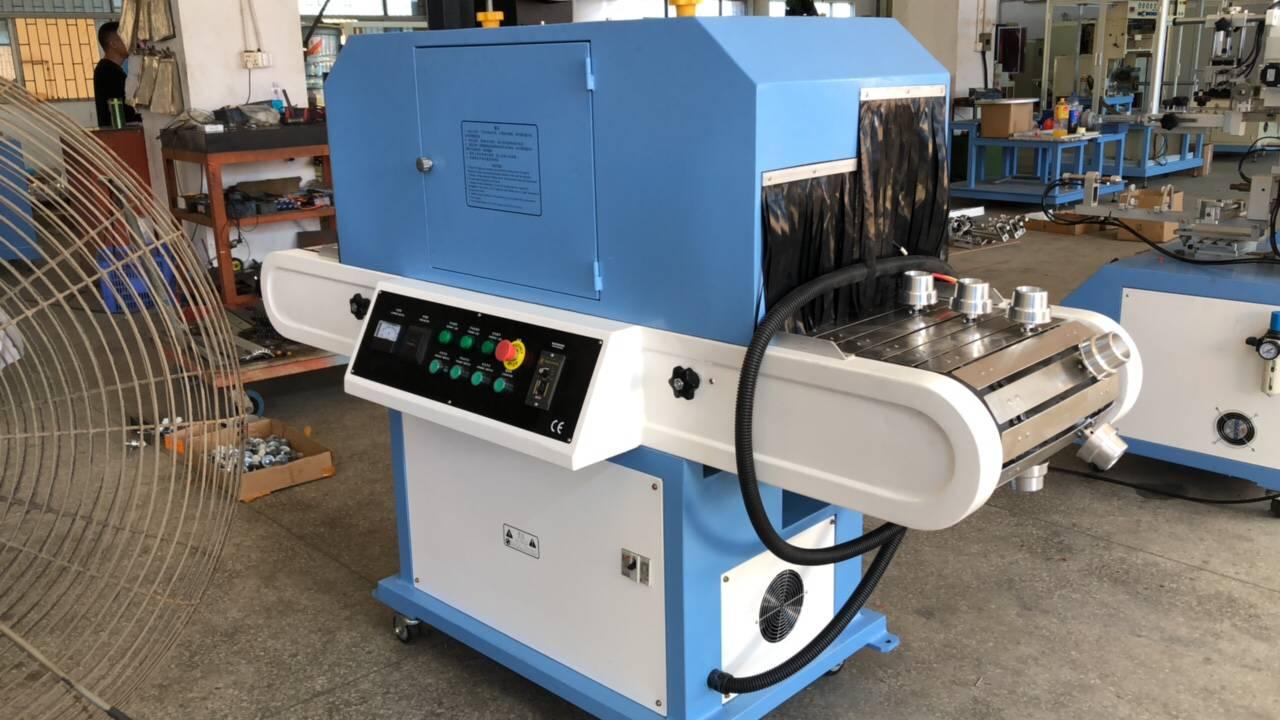

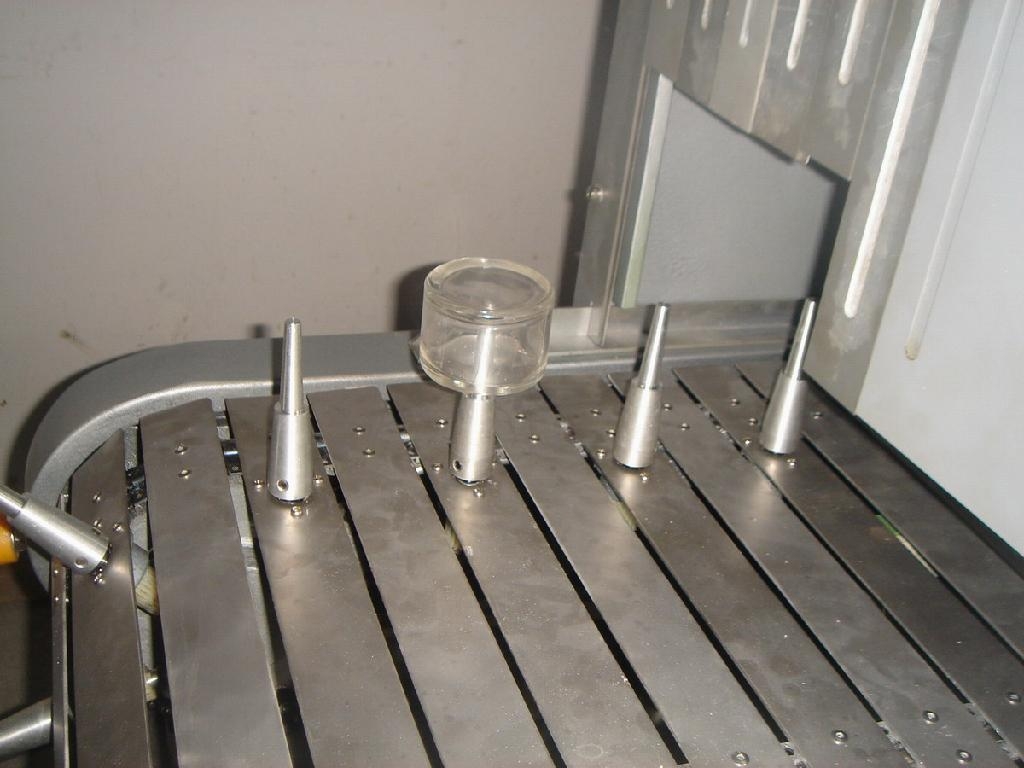

Product Image
