UV Curing Oven For Bottle

Model No.︰

LC-UV5000S2

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 6860 / set

Minimum Order︰

1 set

Share on:

Product Description

Description
LC-UV5000S2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it also  can be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with different bottles. Suitable for bottles made by plastic, Metal, Glass Etc.

1 .UV  drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3.  UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate

parameter
1.Max UV curing   round bottle  high :320mm
2.Max  UV curing Products width  :  400mm
3. UV Curing  bottle diameter : 25-100mm (customize)
4. curing size of workpiece: Cylinder  products :320X400mm
5.Conveyor speed:0~10m/min ;
6.. (United Kingdom)UV lamp power:4KW
7.  UV Drying products  speed:1800~3000PCS/HR
8.Total power:5KW
9..Machine dimension: L:2200mm W:600mm H:1700mm


Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.



Price Terms︰ FOB SHENZHEN PORT OF CHINA
Packing︰ WOODEN CASE
Lead Time︰ 7 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ bottle pritning UV INK ,PLANE Products pritning UV ink
Gross Weight︰ 310KG
Main Parts︰ Primary UV lamps made by England
Free Fittings ︰ tooling & one pc UV lamp
H.S.code︰︰ 8443198000

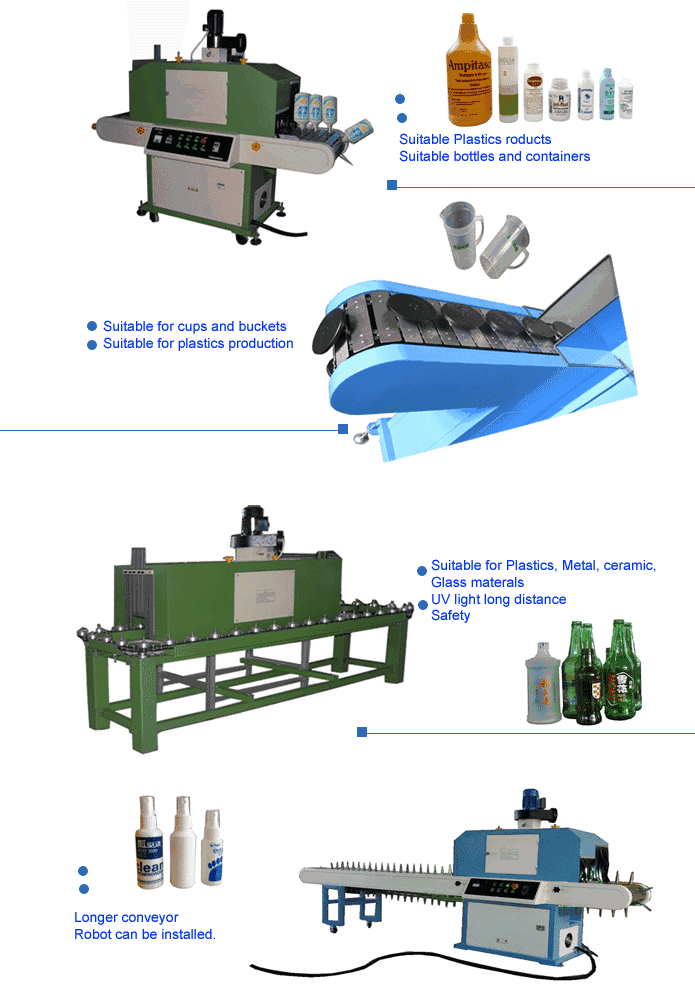

Product Image
