Automatic screen printing ink printing machine

Model No.︰

LC-RG-650

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 20800 / pc

Minimum Order︰

1 pc

Share on:

Product Description

     LC-RG650 automatic screen printing glue (ink printing) machine, is an automatic paper feeding machine developed on the manual paper feeding model, greatly reduce the manual labor intensity, a machine can save 3-5 workers, small product double channel (double station) operation can increase half of the output (equivalent to a machine on the top of two machine efficiency)

Mechanical model

LC-RG-650

Maximum product size

800X1000MM

Minimum product size

80X80MM

                          Maximum gluing area

650X650MM

Make the maximum size of glue for double products

320X600MM

Maximum size of screen frame

1000X700MM

Minimum size of screen frame

630X200MM

Machine size

2420X1800X1600MM

Printing speed

1000-1500pc/H

Power

4.2KW

Voltage power

AC380V

Selling points:

1、The main use of vacuum suction blowing paper suction, smooth and accurate delivery;Printing machine accuracy before and after: ± 0.1mm or so: 0.15mm

2、Screen printing machine adopts traditional screen printing machine network clip, adjustment, more convenient displacement

3、Control system: computer touch control, high precision servo drive, high speed PLC operation.The high speed electric eye imported from Japan is added, and the secondary detection is delivered to the high precision servo drive to calculate the size, and the precision is more accurate

4、Equipment: imported German Parker high precision rodless cylinder, Taiwan imported slide, precision guide rod combination positioning



Price Terms︰ FOB Shenzhen , China
Packing︰ Wooden case
Lead Time︰ 15 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ Hardcover gift box, hardcover book case, window color box
Gross Weight︰ 820kg
Main Parts︰ Bearing, Motor, PLC

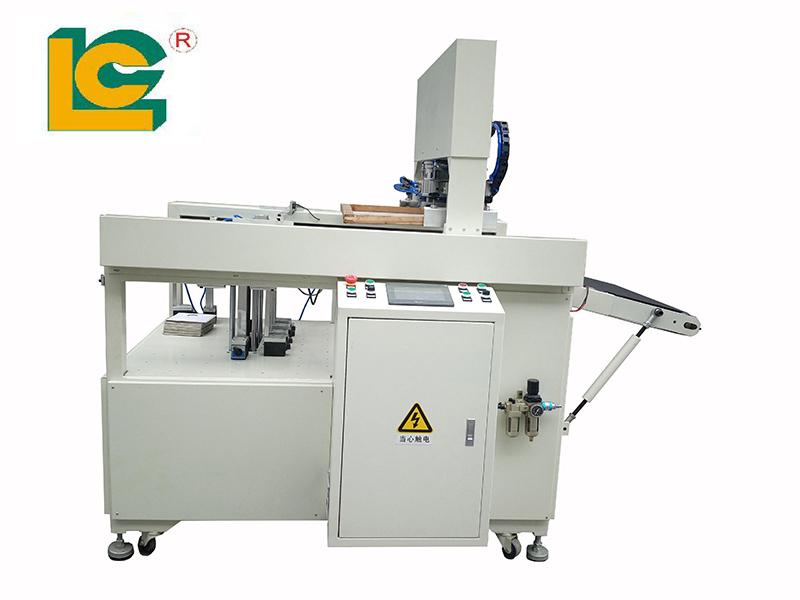

Product Image
