Large Size-Auto One Colour Screen Printer

Model No.︰

LCB-350UV-1

Brand Name︰

LC

Country of Origin︰

China

Minimum Order︰

1 unit

Share on:

Product Description



Full  Automatic One Colour Cylinder Screen Printer
LCB-350UV-1This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape. As it is made up of several individual units to form a printing chain, it can be used for the purpose of one-color printing. The materials to be printed can be plastic, glass, ceramics, metal, etc





1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;

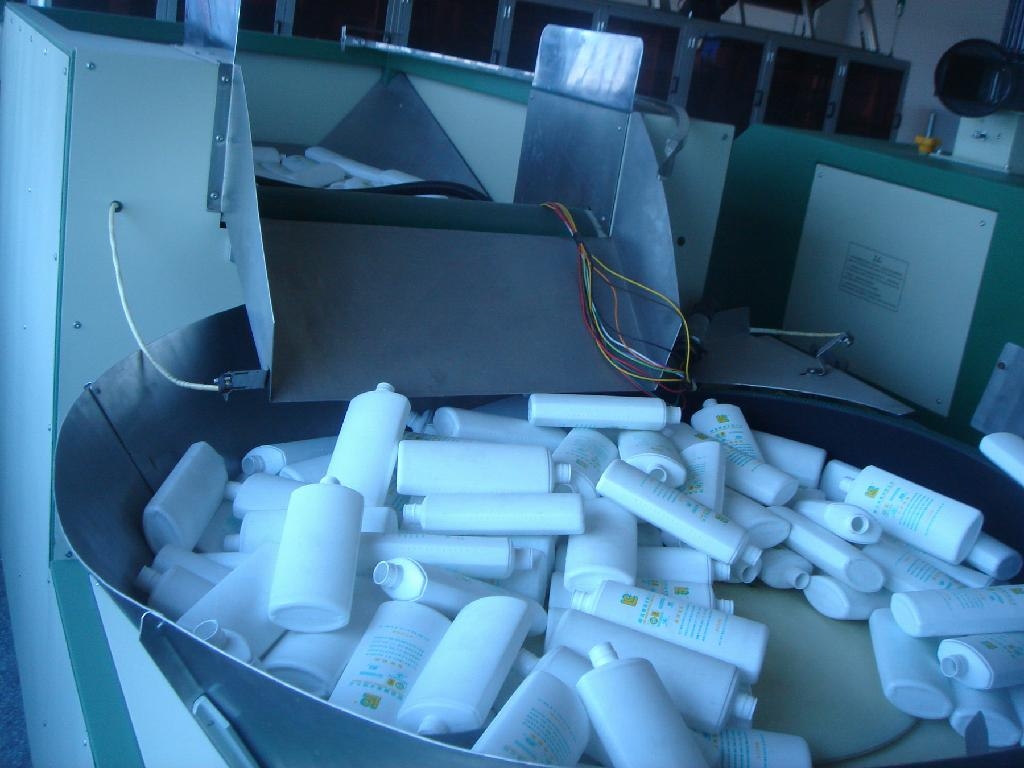

2.Coupled with auto workpiece feeding and loading system;

3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;

4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;

5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;

6.High quality UV curing system adopted to ensure fast ink drying and color registration;

7.High printing speed that up to 4000pcs/hr will bring you with high productivity;

8.Conveniently and easily fixture adjustment and change that save your valuable time;

9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system..







Mainparts
1. MAIN MOTOR: SITI(Italy)
2. PLC: Omron(
Japan)
3. SENSOR: Optex(
Japan)
4...TOUCH SCREEN: Proface(
Japan)
5. Switch: Schneider(
France)
6. (CONTACTOR): (Schneider)(
France)
7(RELAY): (Idec)(
Japan)
8. (INVERTER): Omron(
Japan)
9. (UV CURING)(Primarc)
Britain
10. (PNEUMATIC): Festo(Germany)


1 Model NoLCB-350UV-1
2Printing colors1 color
3.Product appearance:Round bottle
4OperationFull Auto
5min printing diameterround bottle: 150 mm
6max printing diameterround bottle :350 mm
7.Max Printing speed:2000Pcs/Hr
8.  Power380V
9.Weight1550(kg)

10.DimensionsL:1900×W:1000×H:1500(mm)


1-COLOUR AUTO SCREEN PRINTER



Model No

LCB-120UV-1

LCB-150UV-1

LCB-350UV-1

Printing colors

1 color

1 color

1 color

Product appearance

Round bottle

 oblate bottle

Round bottle

 oblate bottle

Round  bottle



Operation

Full Auto

Full Auto

Full Auto

min printing diameter(round bottle)

20 mm

20 mm

150 mm

Max printing diameter(round bottle)

100 mm

150 mm

350 mm

min printing radius

(oblate bottle)

25mm

25mm

/

max printing radius

(oblate bottle)

260mm

300mm

/

oblate bottle width

20-80 mm

20-100 mm

/

Max Printing speed

4000-5000Pcs/Hr

4000-5000Pcs/Hr

2000Pcs/Hr

Power

380V

380V

380V

Weight

1050kg

1360kg

1550kg

Round Bottle Printing Machine
Bottle Screen Printing Machine For Burgundy Bottle
Cosmetics Cap Screen Printing Machine
Bottle Screen Printing Machine For Burgundy Bottle
Cylindrical Tubes Screen Printing Machine
Auto Uv Screen Printer
Cylindrical Tubes Screen Printing Machine
Cosmetics Cap Screen Printing Machine
Bottle Screen Printing Machine For Burgundy Bottle
Bottle Screen Printing Machine For Burgundy Bottle
Round Bottle Printing Machine
Cylindrical Tubes Screen Printing Machine
Cosmetics Cap Screen Printing Machine
Auto Uv Screen Printer
Round Bottle Printing Machine
Bottle Screen Printing Machine For Burgundy Bottle
Bottle Screen Printing Machine For Burgundy Bottle
Cylindrical Tubes Screen Printing Machine
Round Bottle Printing Machine
Auto Uv Screen Printer
Full Servo Automatic Silk Screen Printing Machine
Logo Screen Printer Printing Machine
Logo Screen Printer Printing Machine
Bottle Cup Logo Curved Screen Printing Machine
Logo Screen Printer Printing Machine
Logo Screen Printer Printing Machine
Perfume Bottle Jar Logo Screen Printer
Auto Cylindrical Screen Printer For Water Bottle
Bottle Cup Logo Curved Screen Printing Machine
Bottle Cup Logo Curved Screen Printing Machine
Auto Cylindrical Screen Printer For Water Bottle
Logo Screen Printer Printing Machine
Logo Screen Printer Printing Machine
Glass Uv Printing Machine
Perfume Bottle Jar Logo Screen Printer
Bottle Cup Logo Curved Screen Printing Machine
Auto Cylindrical Screen Printer For Water Bottle
Automatic Uv Screen Printer For Plastic Bottle
Auto Cylindrical Screen Printer For Water Bottle
Auto Cylindrical Screen Printer For Water Bottle
Bottle Cup Logo Curved Screen Printing Machine
Logo Screen Printer Printing Machine





Price Terms︰ EXW,dongguan ,china
Packing︰ wooden crate
Lead Time︰ 35 days after deposit
Standards Certificate︰ CE
Application area︰ package of cosmetic, lipstick, bottles.
Gross Weight︰ 1360KG
Main Parts︰ 1. MAIN MOTOR: SITI(Italy) ,3. SENSOR: Optex(Japan)
Free Fittings ︰ SILK SCREEN PLATE ,SQUEEGEE,

Product Image
