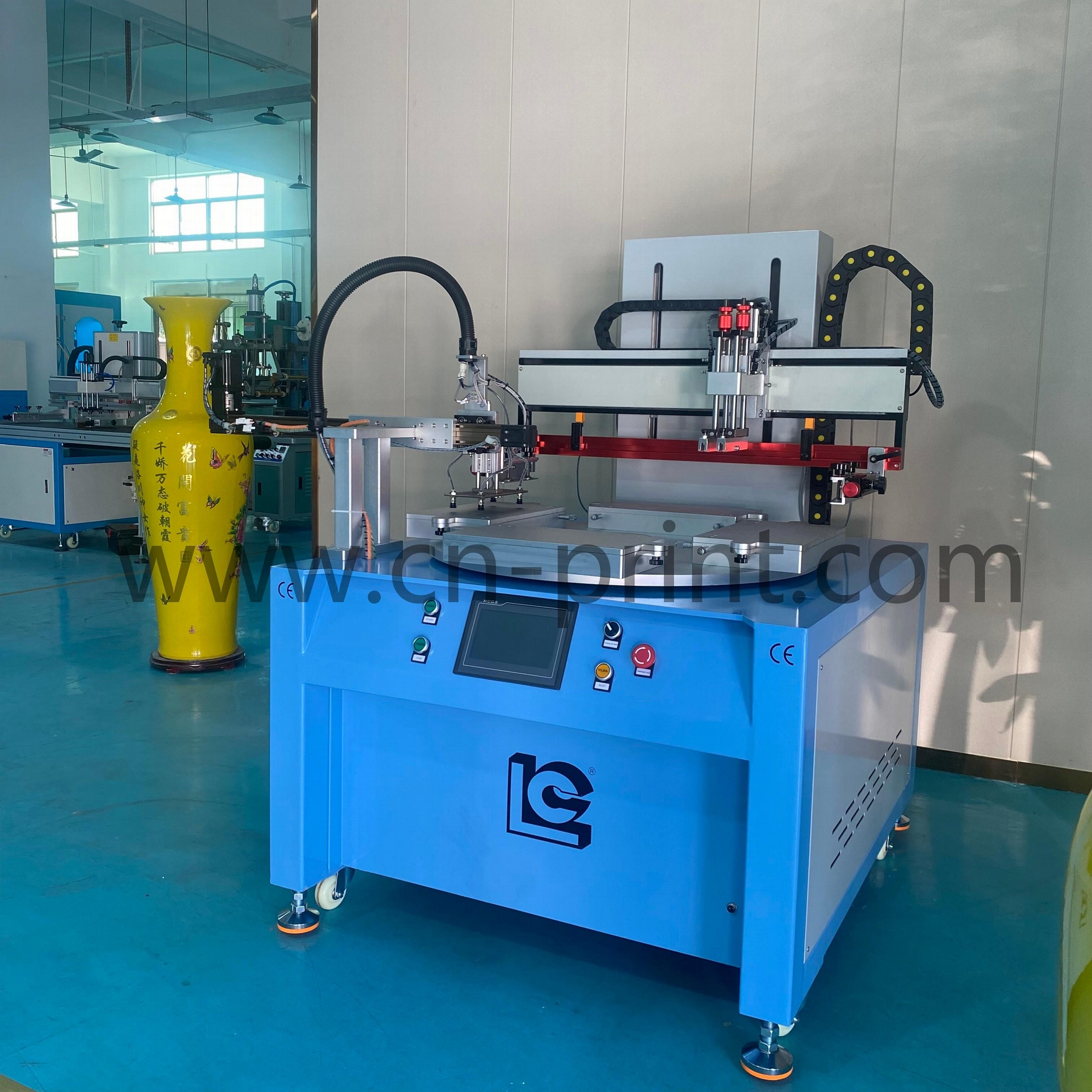

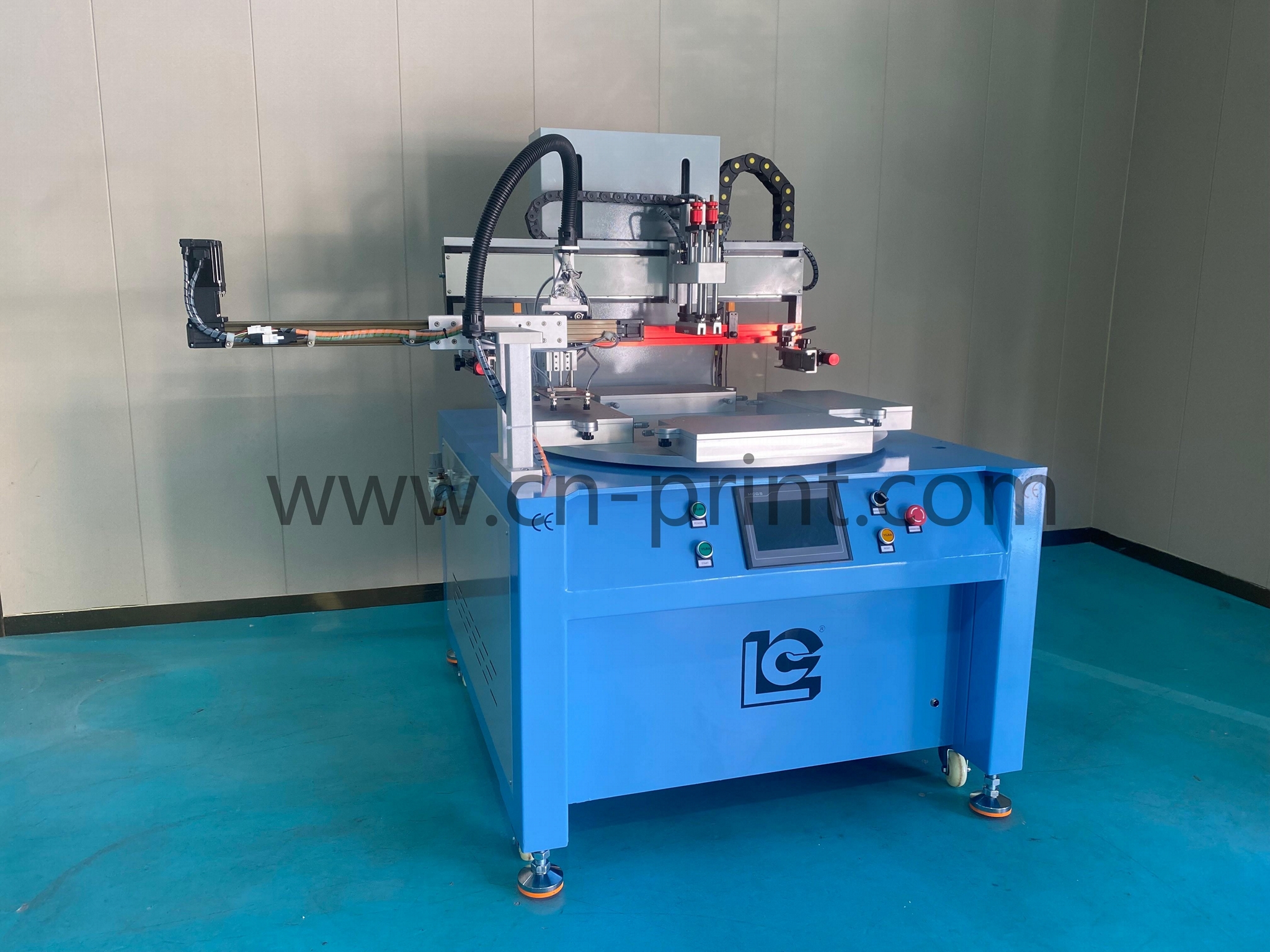

Rotating Working Table Screen Printer & Sevro Mechanical Arm

Model No.︰

LC-RS800/4

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 7730 / pc

Minimum Order︰

1 pc

Share on:

Product Description

The machine is equipped with the functions of product conveying, silk screen printing, mechanical arm unloading, drying and other functions, which can be customized according to the requirment of customers.


  The worktable of the turntable screen printing machine is generally controlled by a precision divider. There are different numbers of stations such as 4-6-8-10. The diameter of the turntable is determined according to the size of the workpiece. With the development of the market, the rotary screen printing machine has entered a booming stage.





Function:

  • Rotating table to facilitate the production of  platics;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  •  Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;

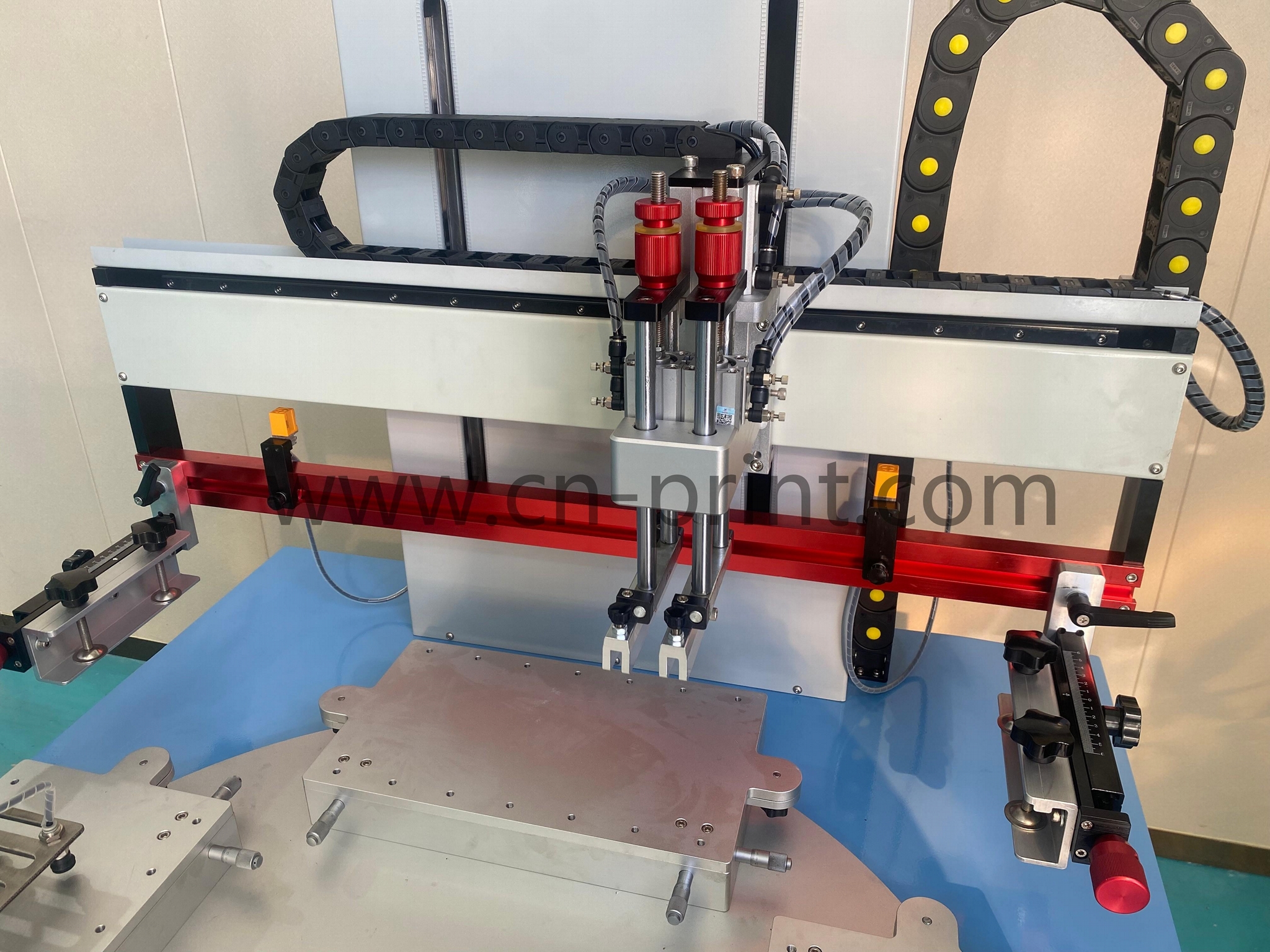

  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  •  Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing.

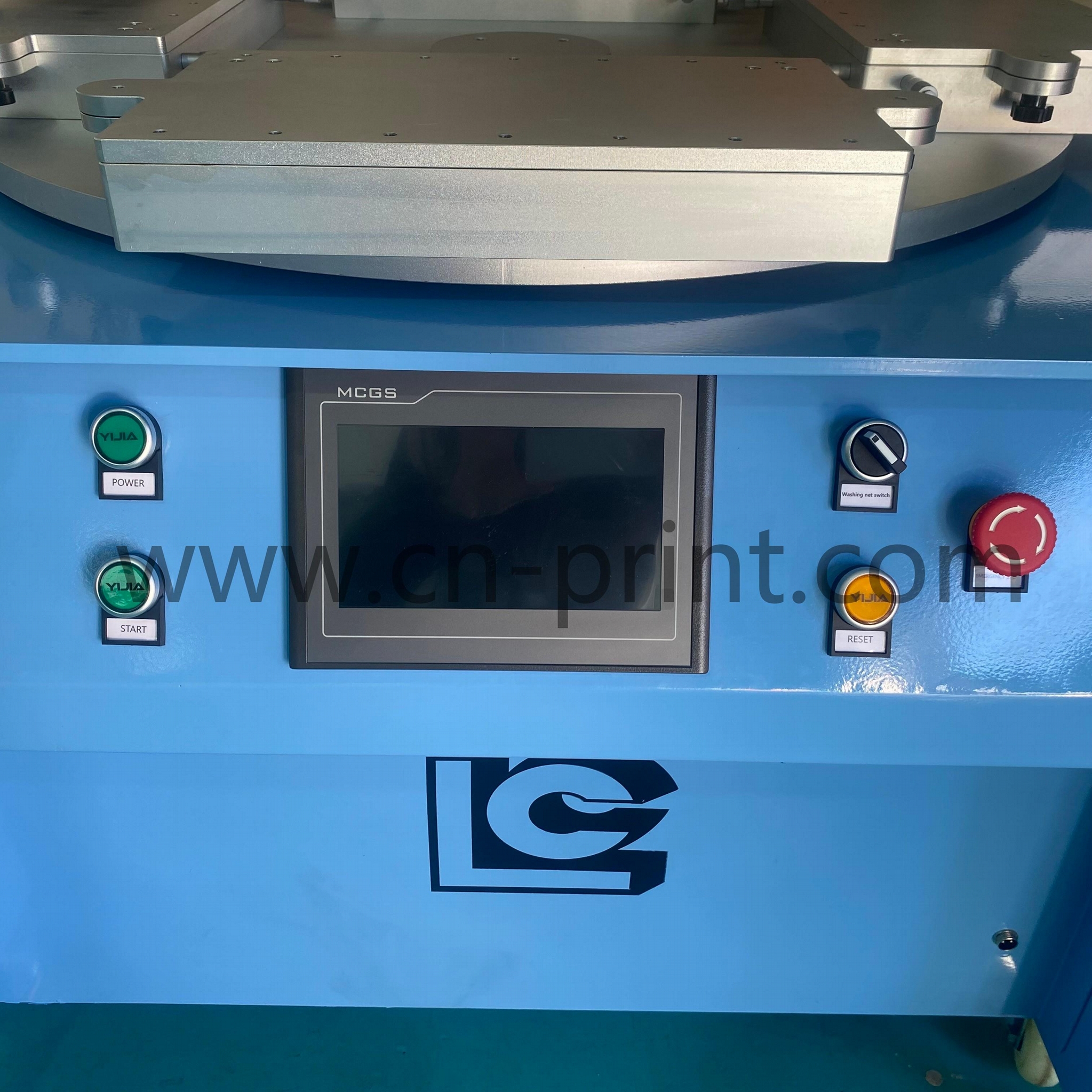

  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.



Parameters:

  • working station : 4 position
  • Max printing thickness: 260 mm
  • Dimeter of working tabel : 800mm
  • Dimension of working table: 200*350mm
  • Max printing areas:250*300mm;
  • Max printing speed: 1200Pcs/H;
  • Max frame dimension: 300*500mm;
  • Compress air: 5-7 bar;


Price Terms︰ FOB Shenzhen
Packing︰ Wooden case
Lead Time︰ 18 Days After Deposit
Standards Certificate︰ CE
Application area︰ The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case.
Gross Weight︰ 480kg

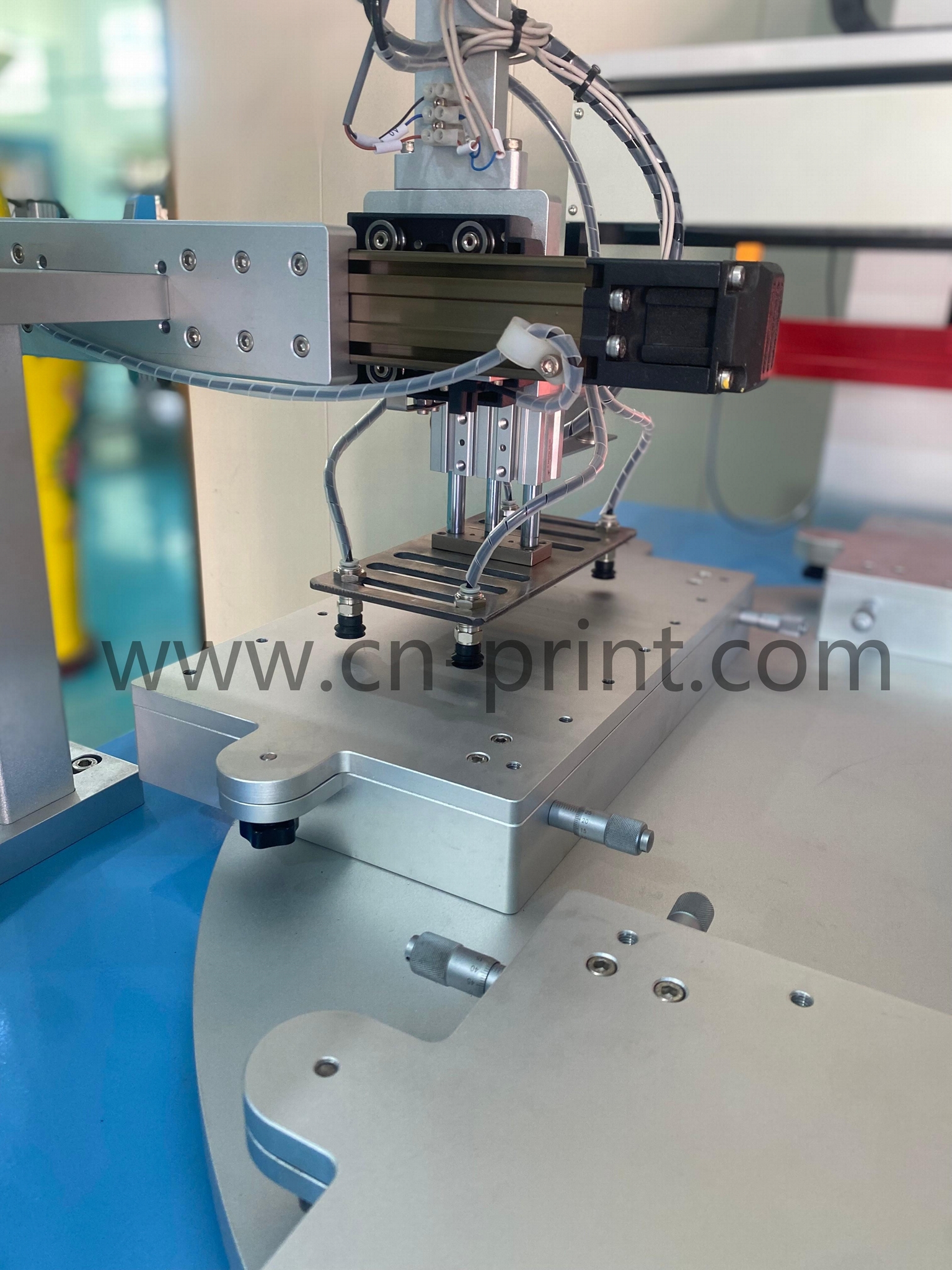

Main Parts︰ PLC +Screen Touch + Rotating Working Table+Sevro Mechanical Arm
Free Fittings ︰ Squeege + screen flame
H.S.code︰︰ 8443192190

Product Image
