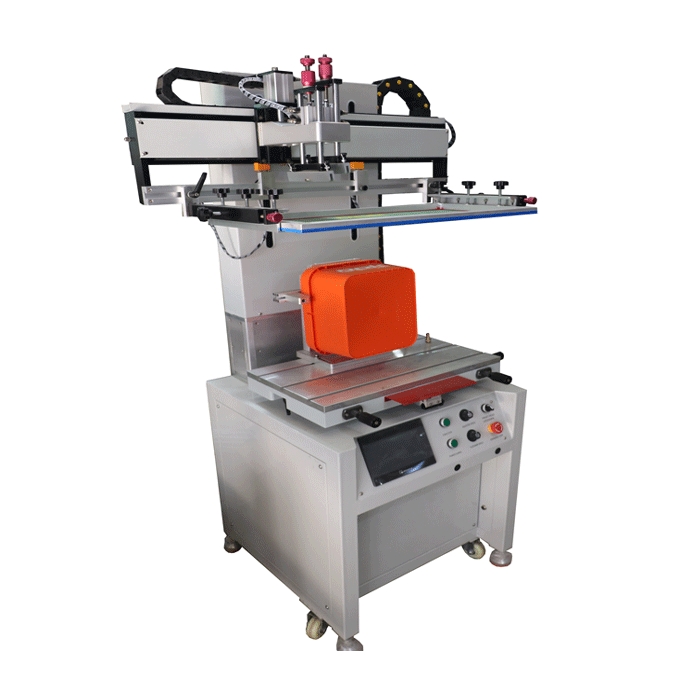

Flat precision screen printing machine with t table

Model No.︰

LC-3050PTB

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 3999 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Structure:

Working table Size 400*600mm
Actions Up-down of screen plate
To be printed  Plain objects
Squeegee stroke Adjust the Limited switch
Squeegee and screen plate control   High precision linear guideway



Usage and characters:

Guide

· Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;

· Also widely used in Glass plate, Machine panel screen printing; With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;

· Suitable for printing sheet-fed adhesiving sticker;

· Suitable for printing water transfer label and heat transfer label through diffrent process;

· Max Printing area: 300*500mm;

· High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Application

· Widely used in Glass printing field;

· With UV curing machine, Can finish many UV special printing process for UV package industry.

· Suitable for printing Mobile windows ;

· Suitable for printing water transfer label and heat transfer label through diffrent process;

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit.

Function

· High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;

· Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

· Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

· Screen forme Clamping device free to adjust to fit different sizes of screen;

· Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

· Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

· Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

· Microcomputer program control operations;

· 4-Digit auto counter; to facilitate the measurement of production efficiency.



Parameters:

·  Max printing thickness: 150 mm

·  Air consumption: 80Litre/Min

·  Dimension of working table: 400*600mm

·  Max printing areas: 300*500mm;

·  Max printing speed: 1000Pcs/H;

·  Max frame dimension: 500*850mm;

·  Compress air: 5-7 bar;

·  Stroke of cylinder up and down:160mm

·  Stroke of Squeegee: 500mm;

·  Table Precision: 0.05mm;

·  Rang adjustment of table: 10mm.

·  Power supply: 110V-220V

·  Compress air:  5-7Bar

· Machine size: 800*1130*1800mm

· Net weight: 276kg;

· Package size: 850*1200*1930mm

· Gross weight: 336kg;



Price Terms︰ FOB Shenzhen
Packing︰ Wooden case
Lead Time︰ 7 Days After Payment
Standards Certificate︰ CE
Gross Weight︰ 336kg
H.S.code︰︰ 8443192190
