Description:

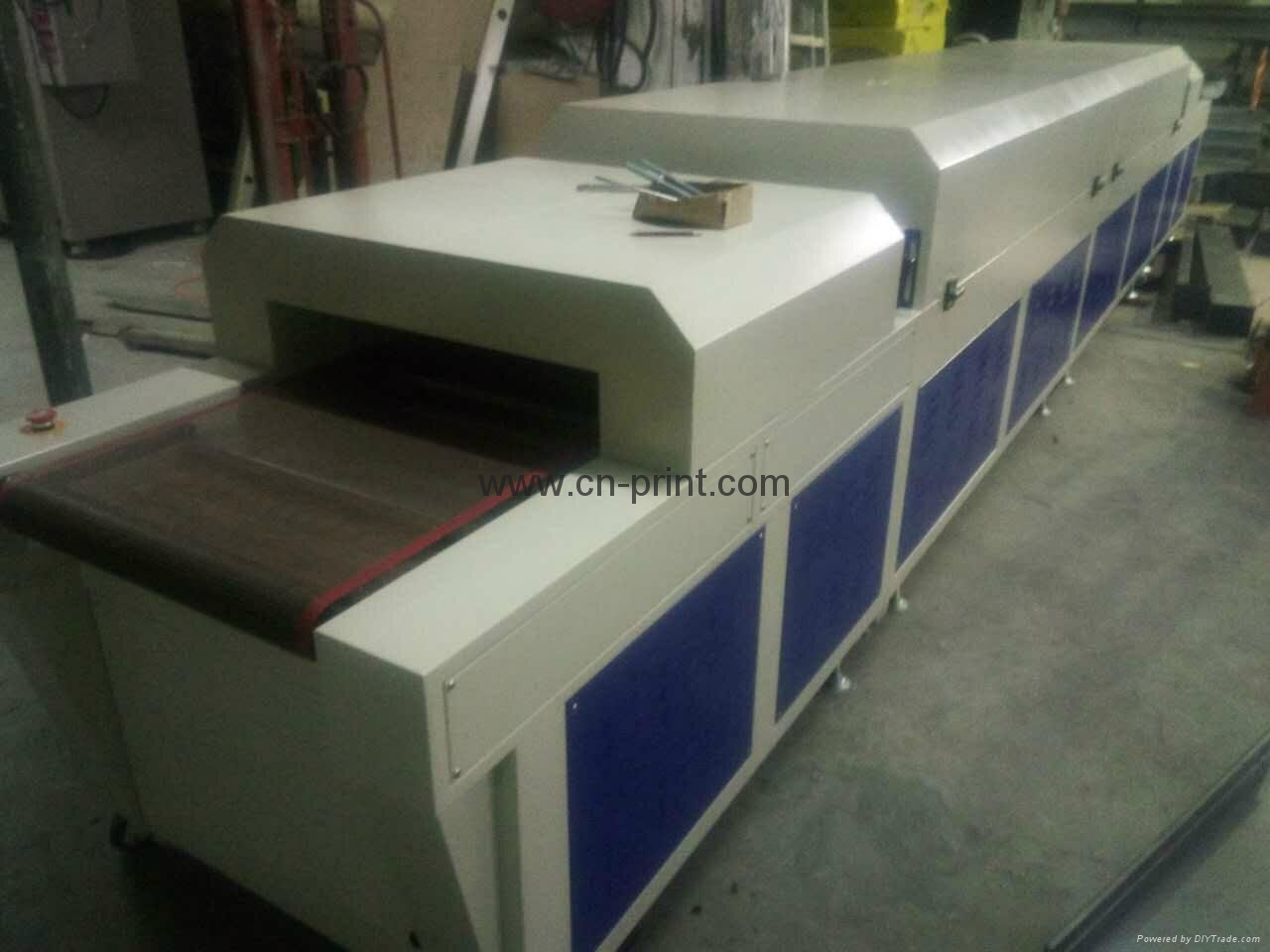

This machine total 7M, 2 heating zone 2m*2, with one preheating zone and cooling zone.
The machine length7M,width:960mm,height:800mm(from the ground to crossbeam),IR oven size 2000mm*350mm *2, input and output size 1500mm*150mm,there with 800mm preheating oven at entrance,800mm cooling zone at output area. IR heating oven with 12pcs heater 8.4KW,preheating oven 3pcs heater 2.4KW,cooling zone draught fan 370W
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:

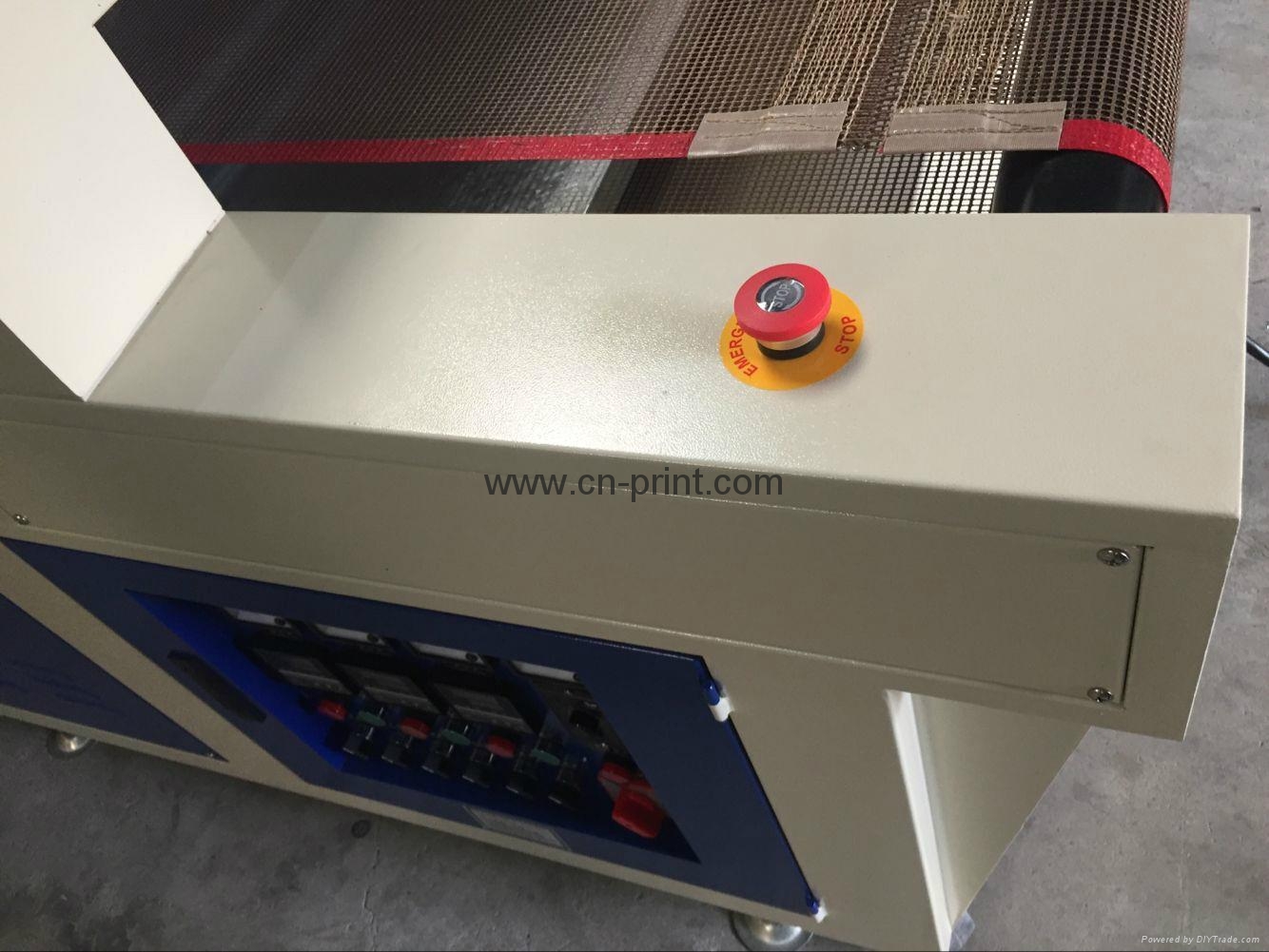

1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.
3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
|
1．
|
Conveyor length :7000
|
|
2
|
Conveyor width:960mm
|
|
3
|
machine size: (L)7100x(W)1050x(H)1260mm Hight of the entrance :120mm
|
|
4
|
working power: AC 380V 50HZ
|
|
5
|
Temperature adjustment: 0-200 Centigrade
|
|
6
|
constant temperature will be 2º C more or less
|
|
7
|
temperature resolution: 1º C
|
|
8
|
Belt speed adustment: 0-10M/MIN
|
|
9
|
Gross weight: 870 KG
|
|
Warranty
|
For all our machines, we provide one-year warranty.
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
Any warranty shipping cost to us is responsible by buyer.
Any shipping cost to buyer is responsible by us.
|
