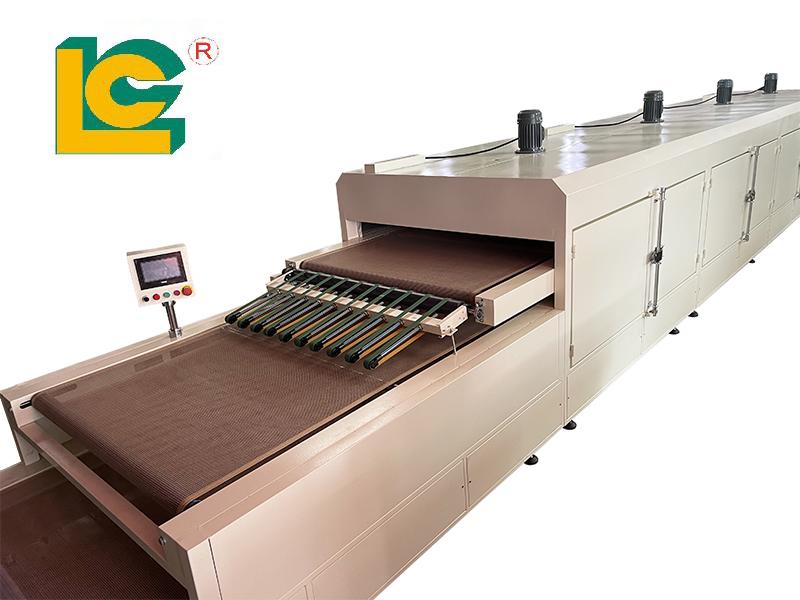

3layered drying machine

Model No.︰

LC-SD12000-3

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 23079 / pc

Minimum Order︰

1 pc

Share on:

Product Description

         This machine is very rare, and the machine also has some technical difficulties. Three layers of circulating IR lines with different temperatures, the motion trajectory is similar to the superposition of z-shape.Suitable for high precision paper, sheet, PCB, channel light, transfer paper, clothes.

Features

  • The machine has memory function to save the set speed parameters of each product

  • Emergency switch required in 4 corners, both in delivery and feeding side,greatly improve the safety, to ensure the safety of workers

  • The machine is equipped with a touch screen, speed control and all other functions can be operated directly from the touch screen

  • Add 3 frequency conversion motors, so that the three-layer drying line can be independently controlled and changed direction (Note: can be independently controlled on the touch screen)

  • Conveyor belt speed can be adjusted to 30 meters/min, high efficiency

Temperature range Normal~200º C
The first floor  Entrance length:1M ;Exit length:1M
The Second floor Entrance length:1M ;Exit length:0.5M
The third floor Entrance length:1M; Exit length:1M
Drying box area 8M length
Conveyor total length 12M
Conveyor width 1.2M
Belt material 2*2.5mesh glass fiber Teflon
Enter high 120mm
Working Power Supply AC 380V 50HZ
Belt speed adjustment 0-30M/MIN
Galvanized iron bracket 2pcs

The height of the bottom most belt 400mm



Price Terms︰ FOB Shenzhen , China
Packing︰ Plywood case
Lead Time︰ 30 working days after confirming
Standards Certificate︰ CE
Application area︰ High precision paper, sheet, PCB, channel light, transfer paper, clothing
Gross Weight︰ 2000 KG

Product Image
