LC-HR6006

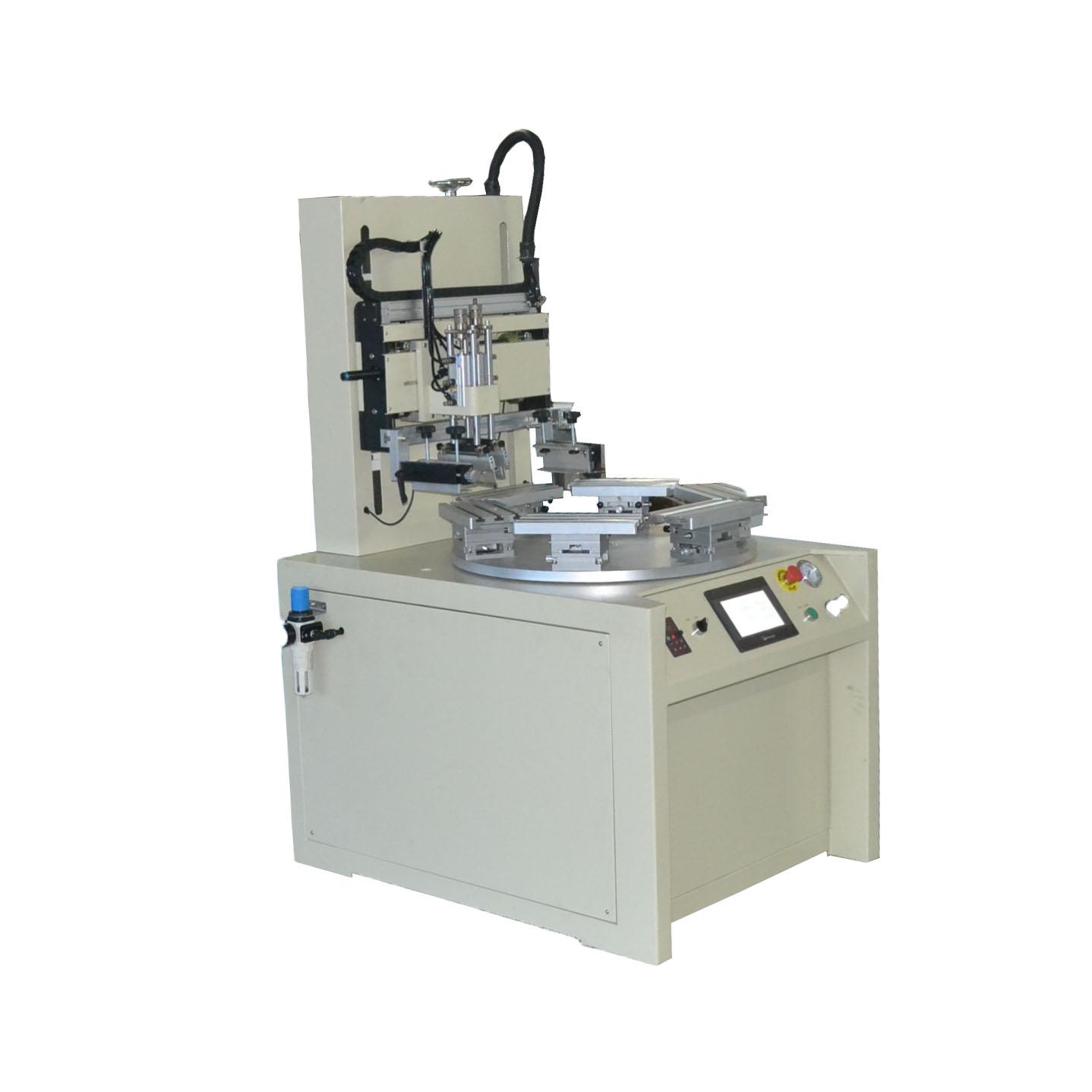

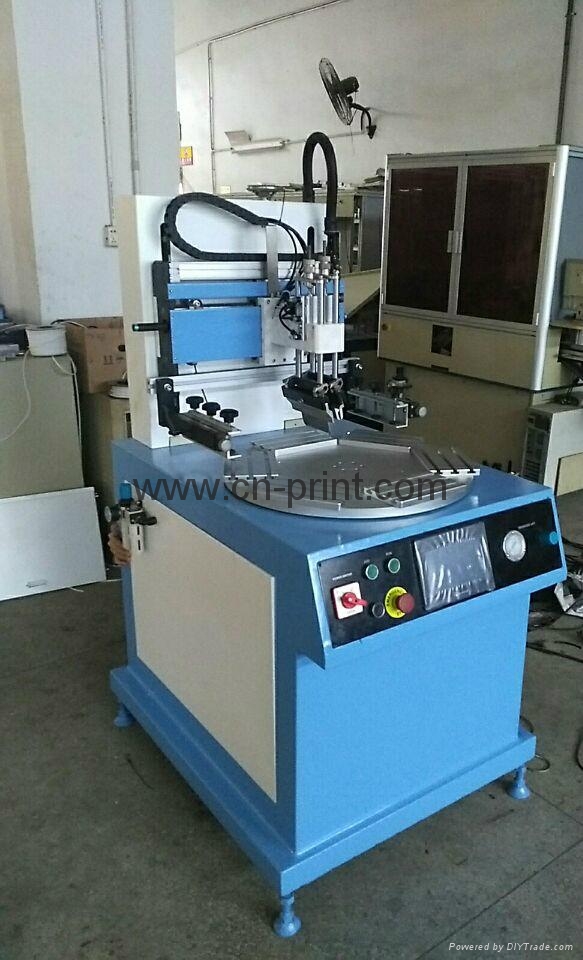

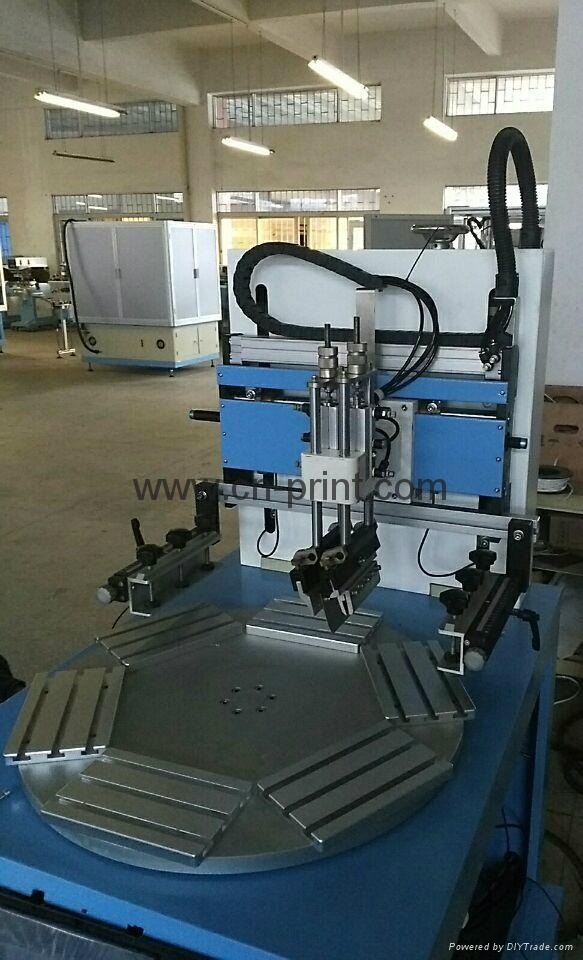

The pneumatic plane screen printing machine with conveyor with PLC contorl system
Here is the vdieo show the machine working
https://www.youtube.com/watch?v=ppqUc756-SM&feature=youtu.be
This machine suitable for precision printing a variety of materials plane products , such as Metal, glass, ceramic, plastic, wood, leather and other materials. Widely used in: electronics, advertising, packaging, printing, sports equipment, toys, stationery, gifts and other industries. Such as PCB, LCD, EL, IC, SMT, etc. Meanwhile, the machine is also suitable for other precision printing, stickers, ceramic flower paper, membrane switch (button), posters, automotive glass, instrumentation, building plaques, nameplates, billboards and other signs.
Function and features:
1. PLC control, easy to operate, accurate and reliable.
2. It consists of four counters.
3. The Body parts are die-cast aluminum, very durable.
4. The scraping, independent power backing ink, and with a separate precision Trimming travel and speed device.
5. Adjusting horizontal and vertical directions of the table independently
and moving angle rotation
6. Up and down long travel design in case of easy handling the workpieces.
7. Using imported pneumatic components

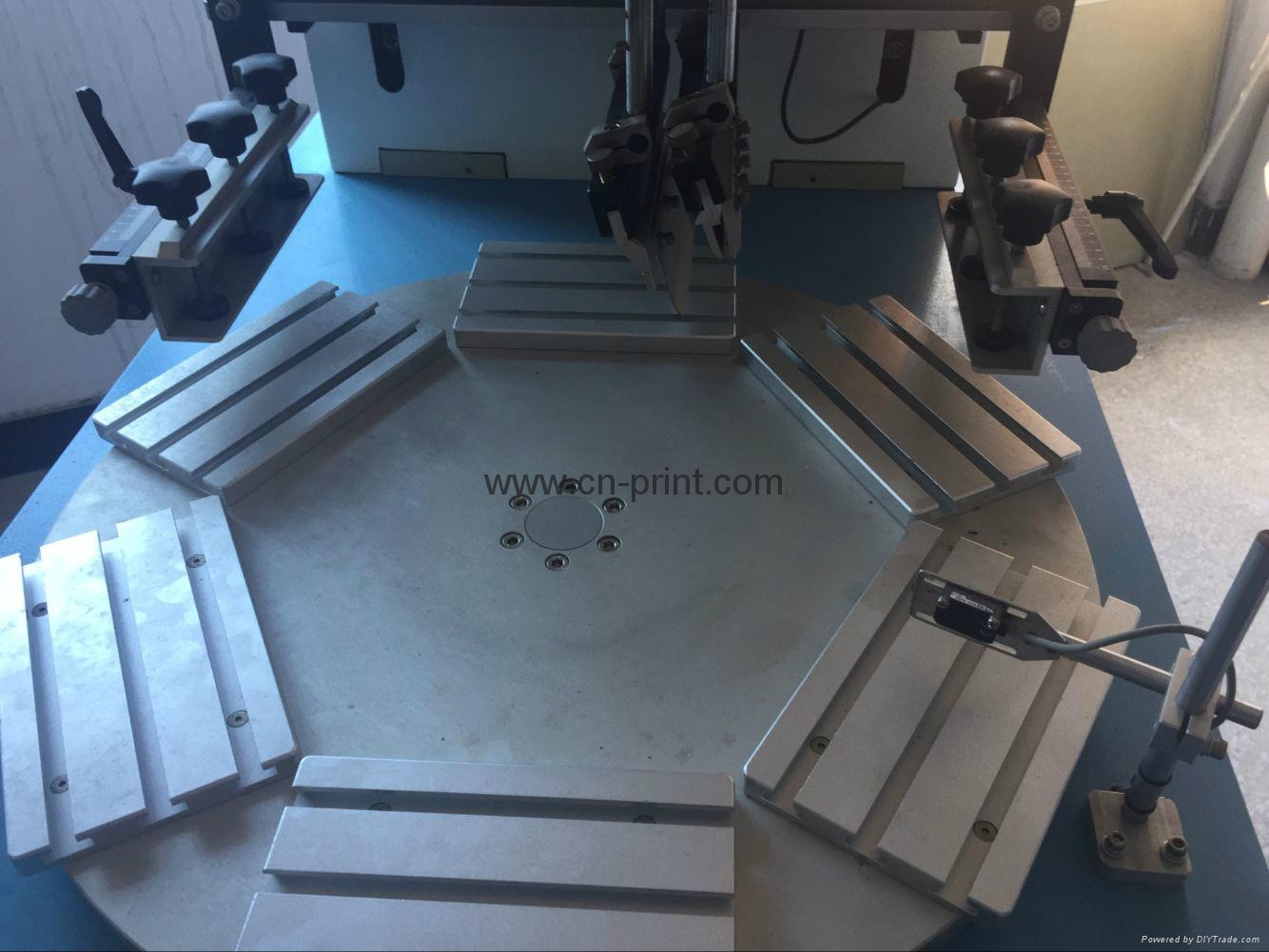

8. Setting up the Rotary station, easy to pick and place the workpiece.
Printing station: 6pcs
Max. printing height : 60mm
Max printing area:200×150mm
Maximum printing speed:1500pcs/hour
Air supply: 6 Bar
Power supply:220V /50Hz
