IR Hot Drying Tunnel(stainless screen belt )
  • IR Hot Drying Tunnel(stainless screen belt )
  • IR Hot Drying Tunnel
  • Drying Tunnel(stainless screen belt )
  • IR Tunnel(stainless screen belt )
  • IR Hot Drying Tunnel

IR Hot Drying Tunnel(stainless screen belt )

Model No.︰

-

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 SET

Share on:

Product Description

Description:

IR Drying tunnel  for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This  tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.

 Features:

1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.

2.  adopt hot circulating system,save energy effectivly.

3. stainless stealscreen belt , customers' designs are welcome

4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.

5.Adjustable belt speed and tunnel temperature controls.

 Parameters:

1

Conveyor length :5000mm

2

Conveyor width:600mm

3

machine size: (L)5100x(W)1050x(H)1260mm

4

working power: AC 380V 50HZ

5

Temperature adjustment: 0-200 Centigrade

6

constant temperature will be 5º C more or less

7

temperature resolution: 1º C

8

Belt speed adustment: 0-10M/MIN

9

 Gross weight: 450KG

Warranty

For all our machines, we provide one-year warranty.
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
Any warranty shipping cost to us is responsible by buyer.
Any shipping cost to buyer is responsible by us.





Price Terms︰ EXW PORT OF SHENZHEN CHINA
Packing︰ PLYWOOD CASE
Lead Time︰ 15 DAYS AFTER PAYMENT
Standards Certificate︰ ISO-9001
Application area︰ DRYING plastic products ,metal ink .spary painting ing solvent INK ,IR DRYING TUNNER
Gross Weight︰ 600KG
Main Parts︰ ceramic heating tube & Quartz Heating tube

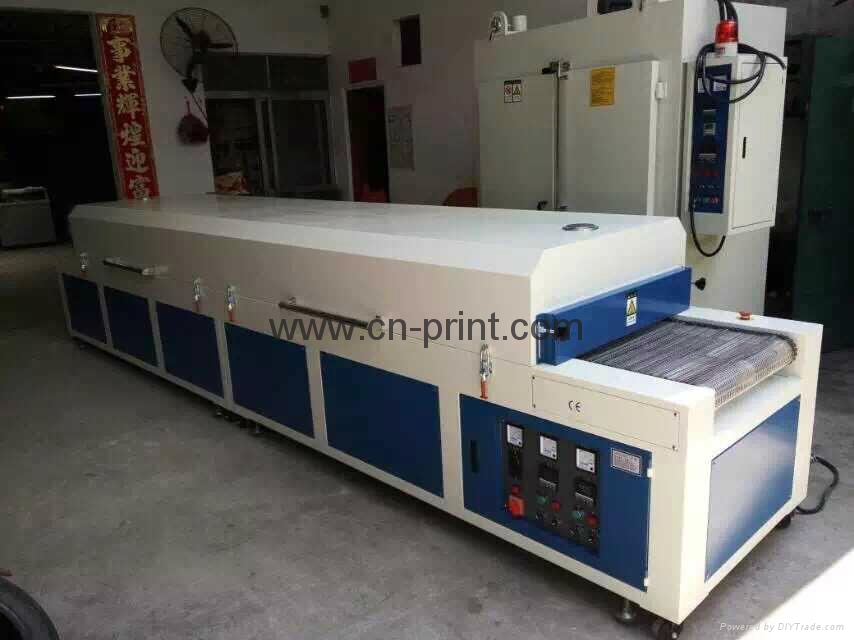

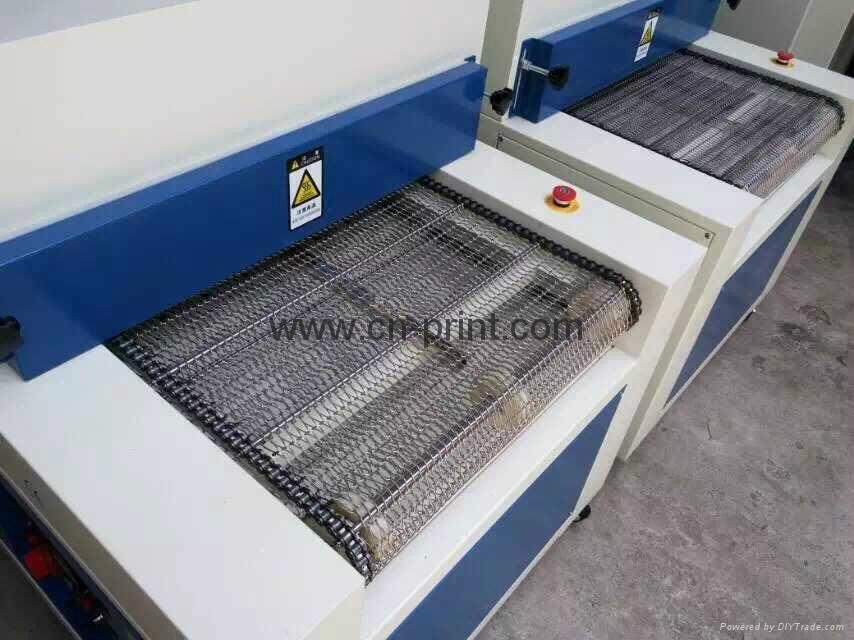

Product Image

IR Hot Drying Tunnel(stainless screen belt )IR Hot Drying Tunnel(stainless screen belt )

IR Hot Drying TunnelIR Hot Drying Tunnel

Drying Tunnel(stainless screen belt )Drying Tunnel(stainless screen belt )

IR Tunnel(stainless screen belt )IR Tunnel(stainless screen belt )

IR Hot Drying TunnelIR Hot Drying Tunnel
