Single-Colour Pad Printing Machine Tampografica Pad Printing Machine

Single-Colour Pad Printing Machine Tampografica Pad Printing Machine

Model No.︰LC-PM1-200

Brand Name︰LC

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 unit

Inquire Now

Product Description

 Feature
LC-PM1-200 Single color pad printer it is standard model in pad printing line. Widely use for  Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware Parts.
1. Model NO: LC-PM1-200
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*200mm
5. Printing area; 85*185mm
6. Jigs: 1
7. Max printing speed: 1500PCS/H
8. Wattage: 220V/ 50HZ:
9. Air pressure: 0.4-0.6Mpa
10. Machine size(LxWxH): 830x530x1400mm
11. Machine weight: 130kg





Model No

LC-PM1-100

LC-PM1-150

LC-PM1-200

LC-PM1-250

LC-PM1-300

Printing Colors

1

1

1

1

1

station

1Pcs

1Pcs

1Pcs

1Pcs

1Pcs

Plate area

100×100mm

100×150mm

100×200mm

150×250mm

150×300mm

Workbench size

200×125mm

250×125mm

300×125mm

400×165mm

400×165mm

Max printing speed

2000pcs/hr

1800 pcs/hr

1500 pcs/hr

1200 pcs/hr

900 pcs/hr

Air pressure

6bar

6bar

6bar

6bar

6bar

Wattage:

AC110V/220V

AC110V/220V

AC110V/220V

AC110V/220V

AC110V/220V

Machine size

860×460×1400

860×460×1400

1250×530×1420

1350×560×1470

1450×560×1470

Machine weight

94kg

103kg

135kg

170kg

182kg


1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable


Machine fitting:
1. One pcs steel plate
2. Two pcs rubber pad
3. Work box
4. English operating instruction

Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----5 days after confirm Payment
SKU ----15 SETS
Standards Certificate ---CE
Cubic Meter---- 1.2
Gross Weight ---130KG
Main Parts ----FESTO cylinder made by Germany



tanpon printer
pad printing machine 6 color
tank pad printing machine
multi color pad printing machine
servo motor 4 color pad printing machine helmet
golftee pad printing machine
pad printing machine automatic
automatic plastic pad print machine
pvc ball pad printing machine
pad printing for teflon tape
8 color pad printing machine
pad for printing machine
pad printing machine plastic caps
2 color bottle cap pad printing machine plasma
shoe two colors pad printing machine with shuttle
4color shuttle pad printing machine
Tampografica Pad Printing Machine
neck label pad printing machine
perfume bottle pad printing machine
tampo printing machine
pad printing machine pvc

Price Terms︰ EXW DongGuan

Packing︰ PLYWOOD CASE

Lead Time︰ 7 DAYS AFTER PAYMENT

Standards Certificate︰ CE

Application area︰ toys, pens, keyboard, plastic products, laber, hardwa

Gross Weight︰ 135KG

Main Parts︰ FESTO CYLINDER MADE BYGERMANY

Free Fittings ︰ one steel plate & one silicone rubber pad

H.S.code︰︰ 84439000

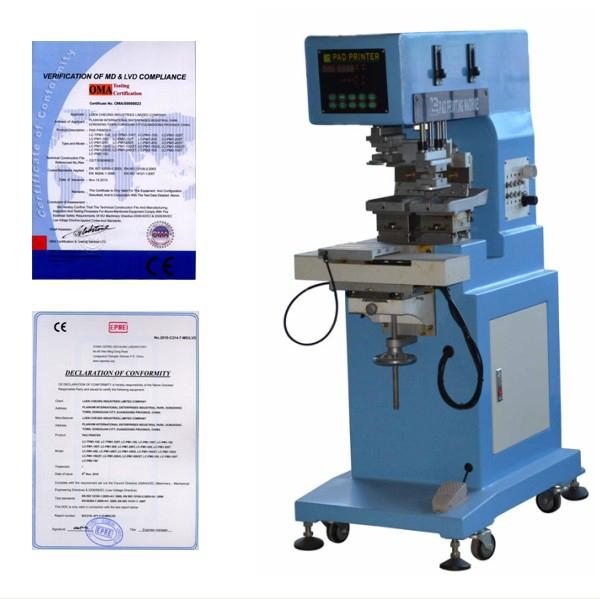

Product Image
