Double Head 1- Colour Pad Printing Machine tanpon printer

 Double Head 1- Colour  Pad Printing Machine  tanpon printer

Model No.︰LC-PM1-100/2

Brand Name︰LC

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description

The pneumatic double –head pad printer could be acted as two pieces of single colors pad printer, it is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color’s printing. Widely used for logo printing on surface such as electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.

1-Color Double Head Pad Printing machinery
1. Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Specifications
1. Model NO: LC-PM1-100/2
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*100 mm
5. Max Printing area: 80*80mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Machine size: 860x460x1400mm(LxWxH)
11. Machine weight: 100KG

1. Model NO: LC-PM1-150/2
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*150 mm
5. Max Printing area: 80*130mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Machine size: 860x460x1400mm(LxWxH)
11. Machine weight: 110KG

1. Model NO: LC-PM1-200/2
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*200 mm
5. Max Printing area: 80*180mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Aachine size: 860x460x1400mm(LxWxH)
11. Machine weight: 120KG

Free Fitting:
1. One pcs steel plate
2. Two pcs rubber pad
3. A suit tool
4. English operating instruction

Pad Printers
extra large pad printing machine
golf ball logo pad printing machine
lc pad printing machine
1-colour pad printing machine
pad print machin
round pad printing machine
tampography machine
tanpon printer
pad printing machine 6 color
tank pad printing machine
multi color pad printing machine
servo motor 4 color pad printing machine helmet
golftee pad printing machine
pad printing machine automatic
automatic plastic pad print machine
pvc ball pad printing machine
pad printing for teflon tape
8 color pad printing machine
pad for printing machine
pad printing machine plastic caps

Price Terms︰ EXW DongGuan

Packing︰ WOODEN CASE

Lead Time︰ 5 DAYS AFTER PAYNEBT

Standards Certificate︰ CE

Application area︰ toys, pens, keyboard, plastic products, laber, hardwa

Gross Weight︰ 130kg

Main Parts︰ FESTO CYLINDER MADE BY GERMANY

Free Fittings ︰ PRITNING PADS ,PRINTING PLATES

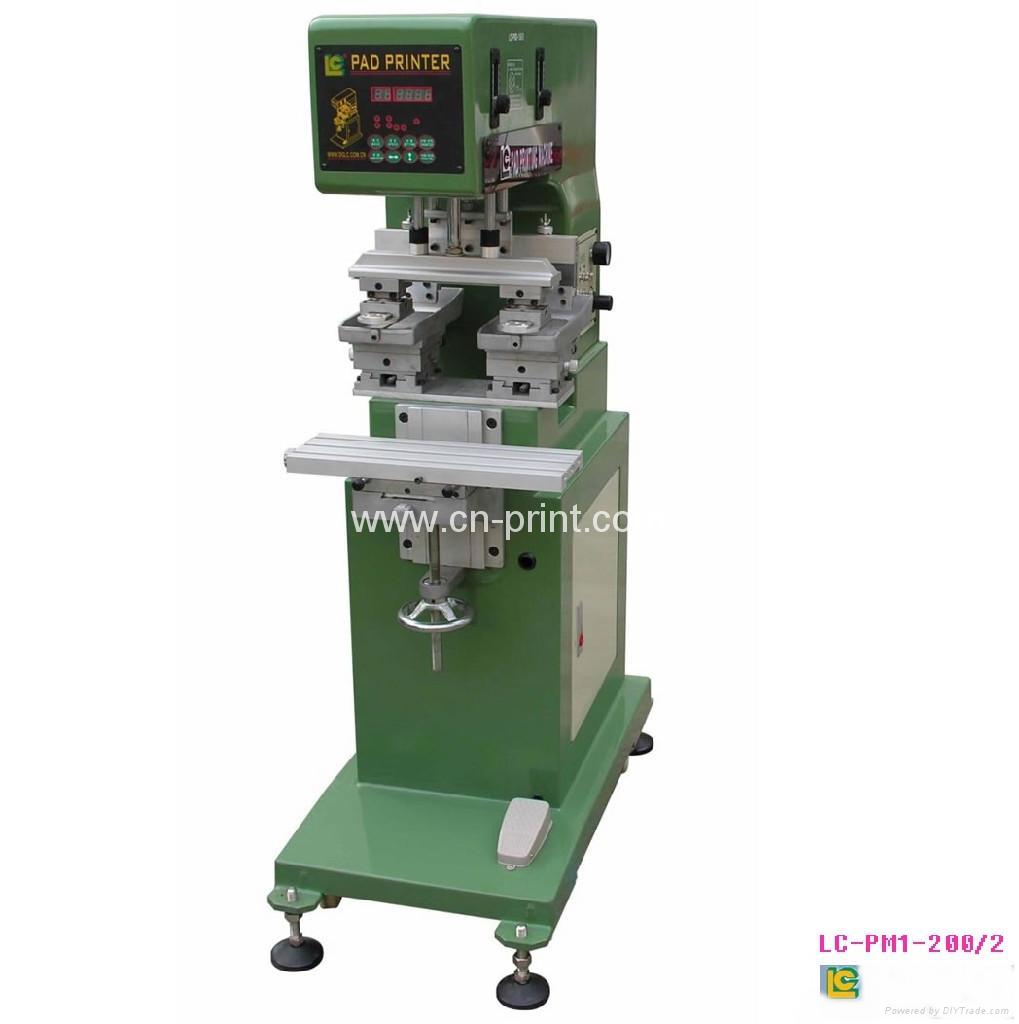

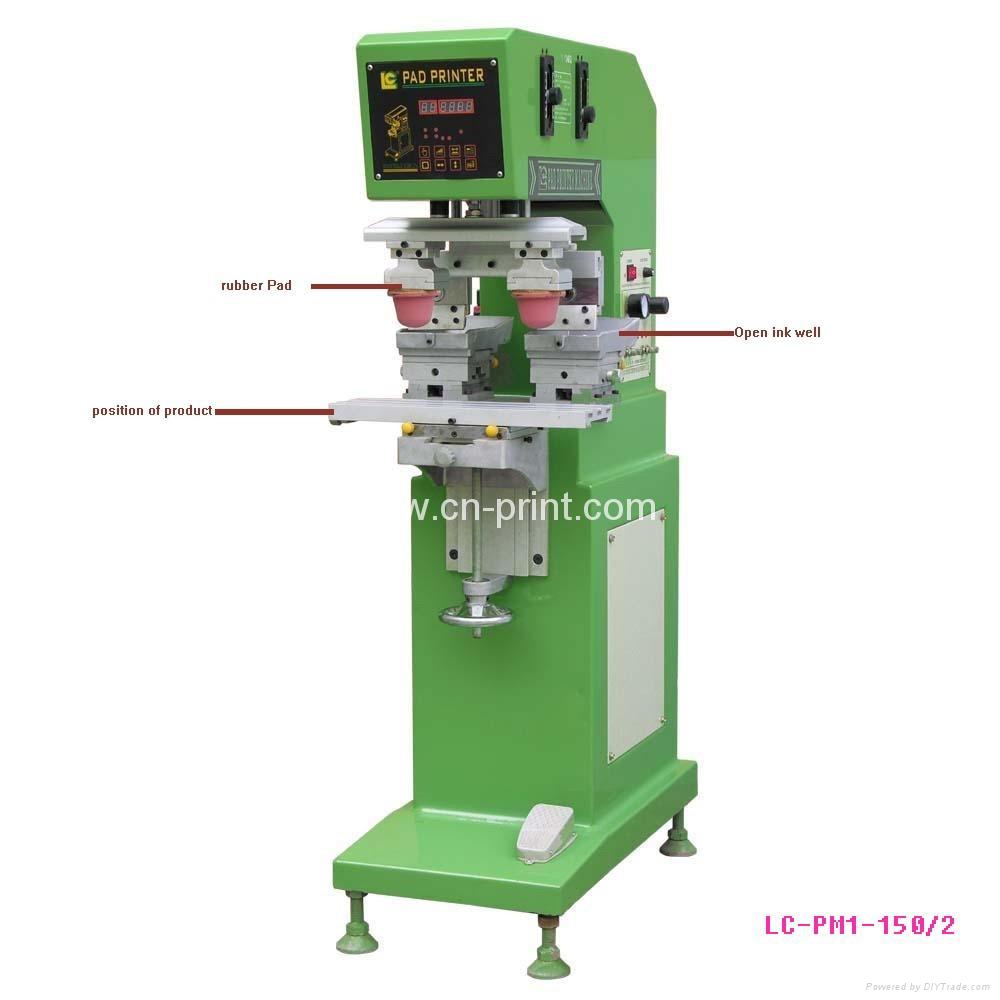

Product Image
