Single Transverse Roll to Roll Pad Printer

Single Transverse Roll to Roll Pad Printer

Model No.︰LC -P1/CG

Brand Name︰LC

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description


1. Suitable for cotton/ plastic/ non-woven ribbon and other ribbon roll to roll printing
2.Adjustable roller frame, suitable for various widths of ribbon printing. The feeding speed of the   roller is also adjustable.

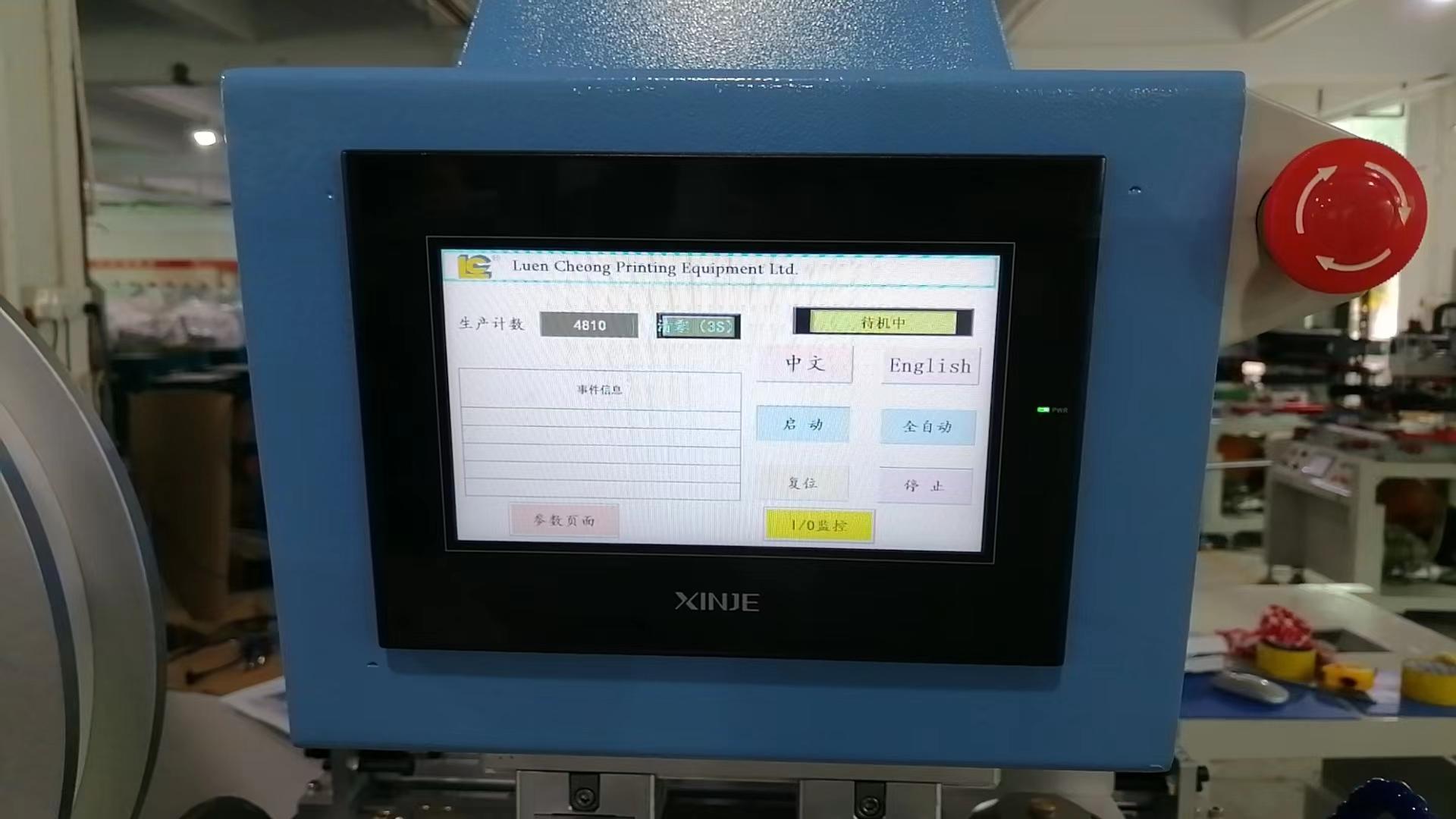

3. PLC touch screen control, easy to operate
4. the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful and practical.
5. the oil ink roller assembly and disassembly, and easy to clean.
6. independently adjustable plastic head up and down stroke and speed.
7. automatic balanced squeegee, scraping the oil neat.
8. each of the ink disk blocks can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.



1.Model No :LC -P1/CG
     With feeding and collection  function roll frame
2.operation :pneumatic
3.Printing Colors:1
     Designed assembled 1 silicone pad
4.  Max. printing area :85x450 mm
5.Plate area 125×500 mm2
6.Sealed  ink cup diameter:¢110mm
7.   Max  printing speed:1400PCS/H
8.Wattage: 110V/60HZ
9.Air pressure: 6 Bar
10.  Machine size:960x660x1400mm(LxWxH)
11.  Machine  weight :158kg


Free fitting:
1. 2 silicone pads
2. 1 set of toolings
3. 1 blank steel plate

Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 35 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Gross Weight︰ 220kg

Main Parts︰ Bearing, Motor, PLC

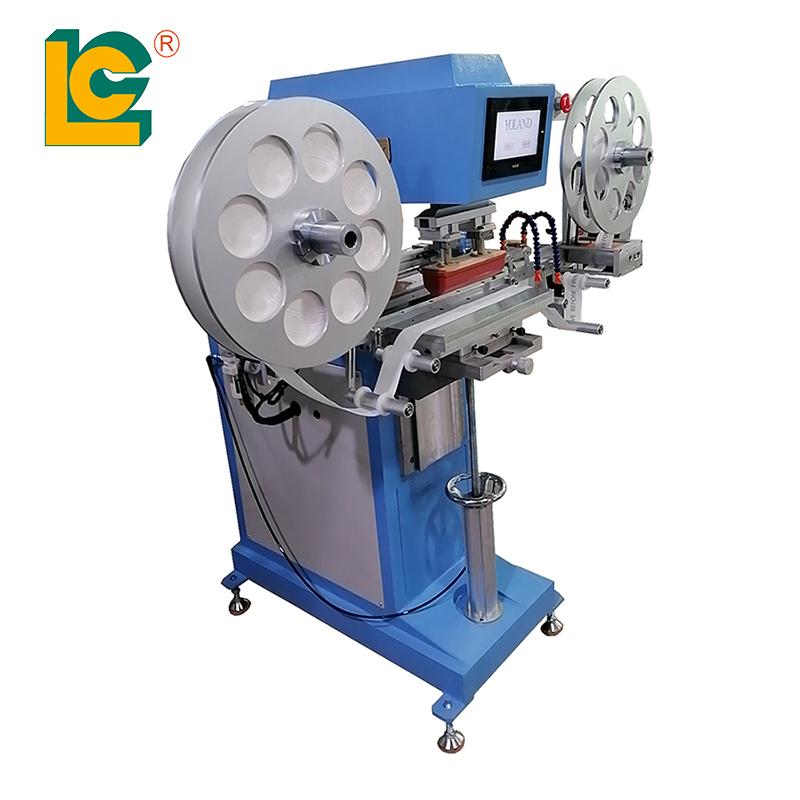

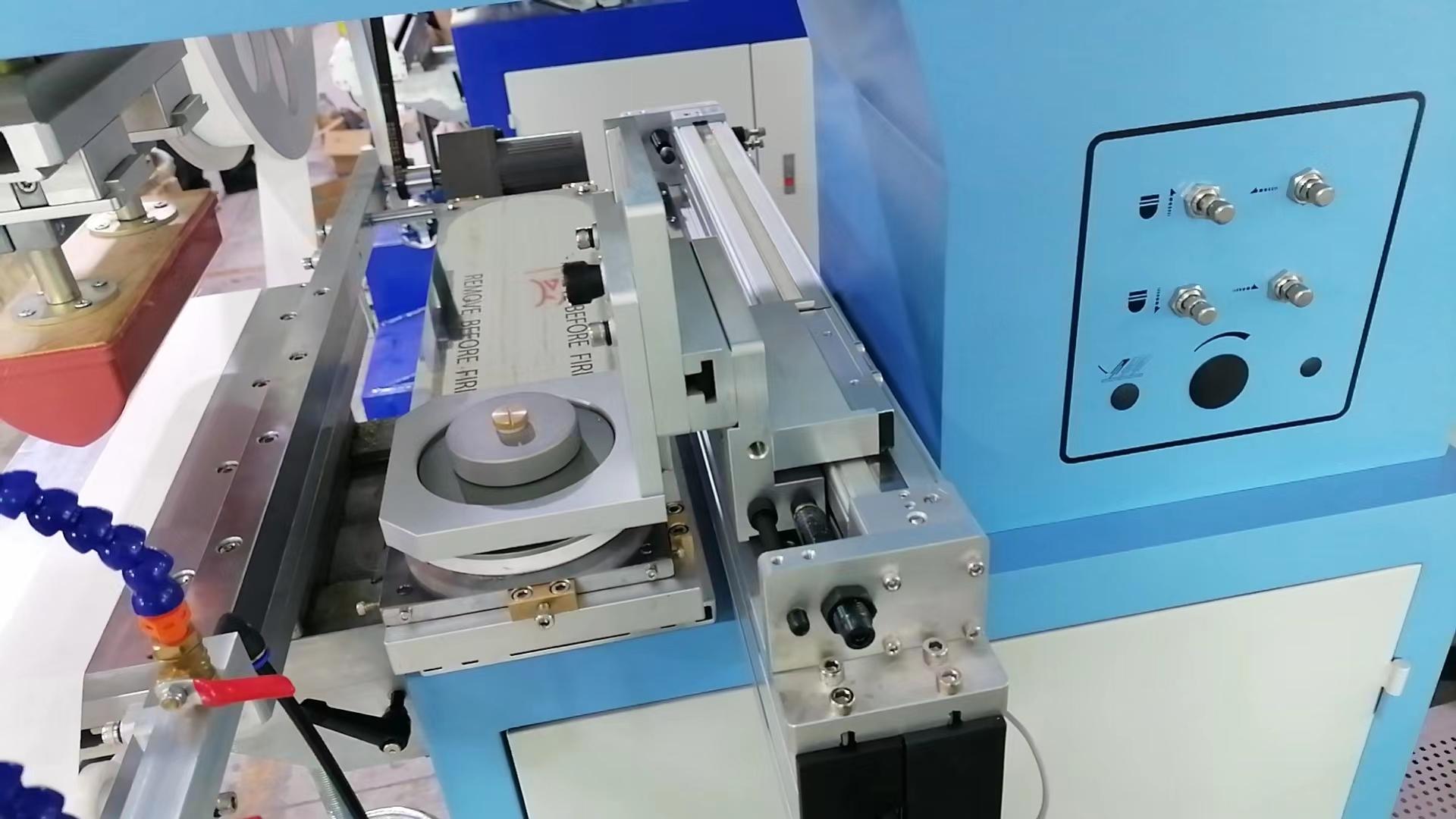

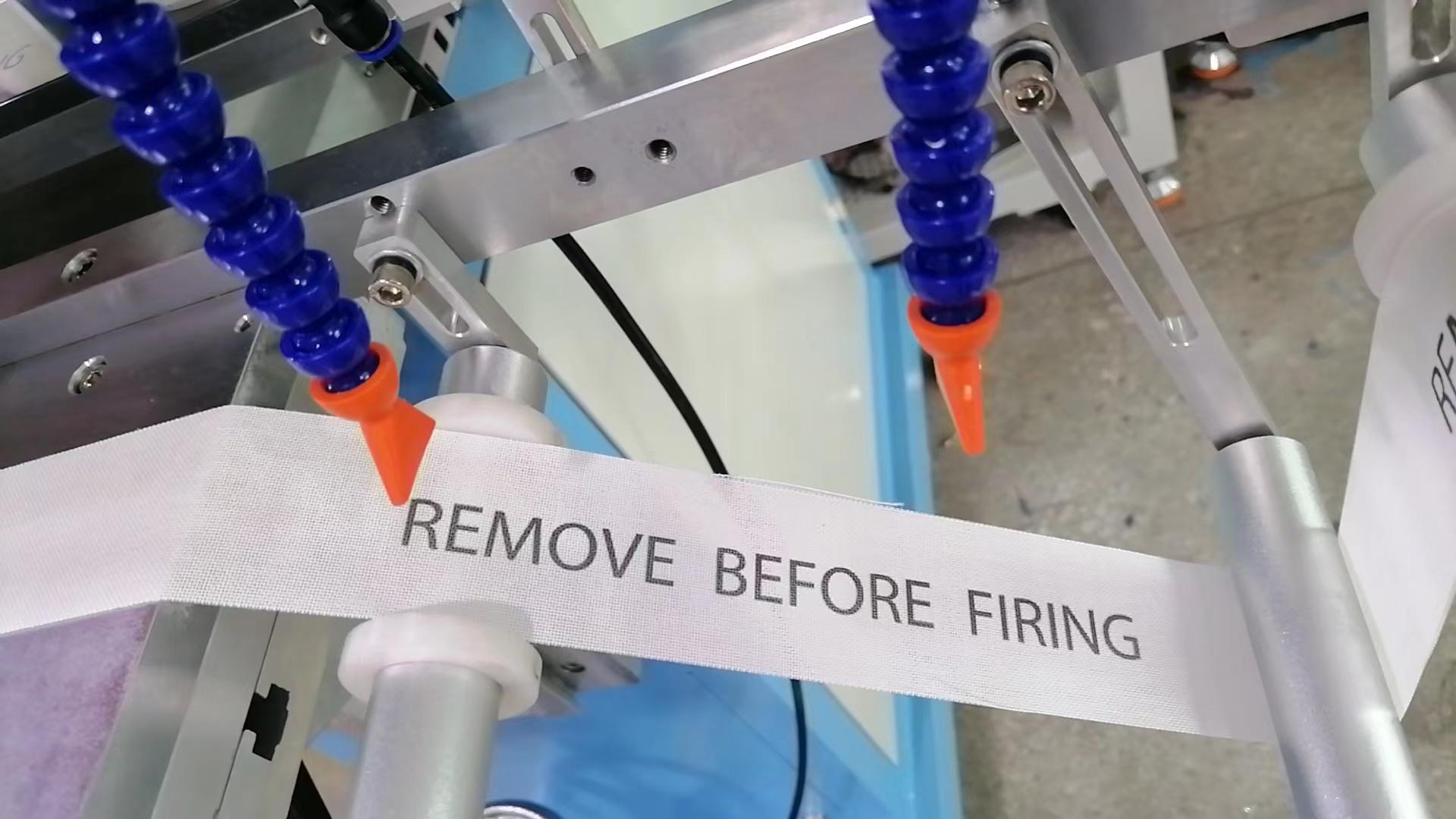

Product Image
