Automatic Italy Beer Glass Bottle Screen Printer Servo-controlled Screen Printin

Automatic Italy Beer Glass Bottle Screen Printer Servo-controlled Screen Printin

Model No.︰LC-CNC208

Brand Name︰LC

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description

Product description

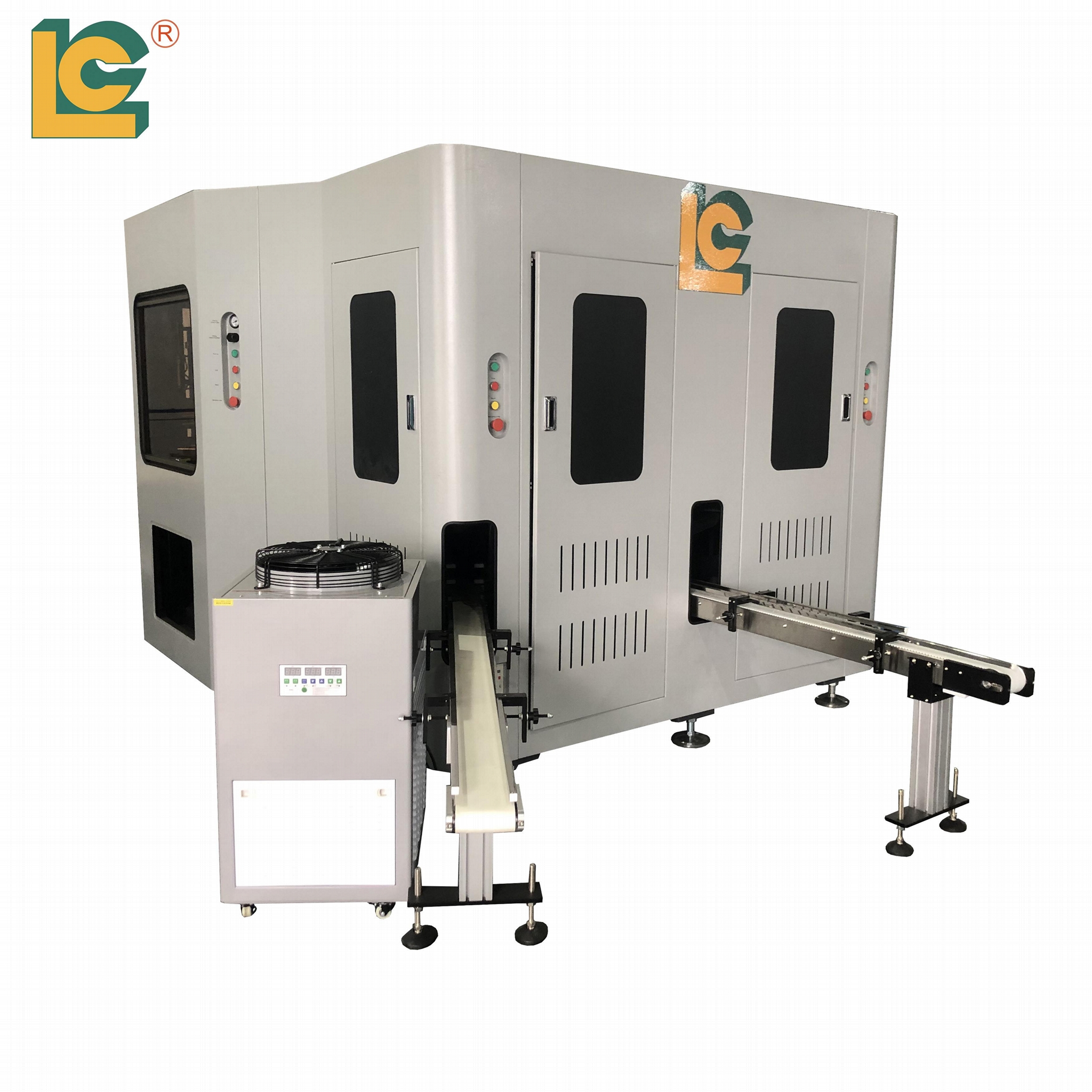

Fully servo-controlled automatic screen printing machine for plastic or glass bottles jars cups tubes container

It can screen print from 1 to 17 colours



Fast, Innovative, Convenient and Green

This full servo printing machine can print round, oval, square, polygonal plastic and glass products. The visual positioning system can locate the bottle bottom or bottle body.
Compact look and reduced overall dimensions make it suitable for small-sized companies as well.
User-friendly interface.

screen printing head can be replaced to hot stamping head,make multi color screen printing and hot stamping in one line.

Completely servo-assisted, it can print up to 17 colours on plastic or glass multi-format containers.
Thanks to servo-assisted printing adjustments that afford a 0.1mm adjustment tolerance between colours.

Features

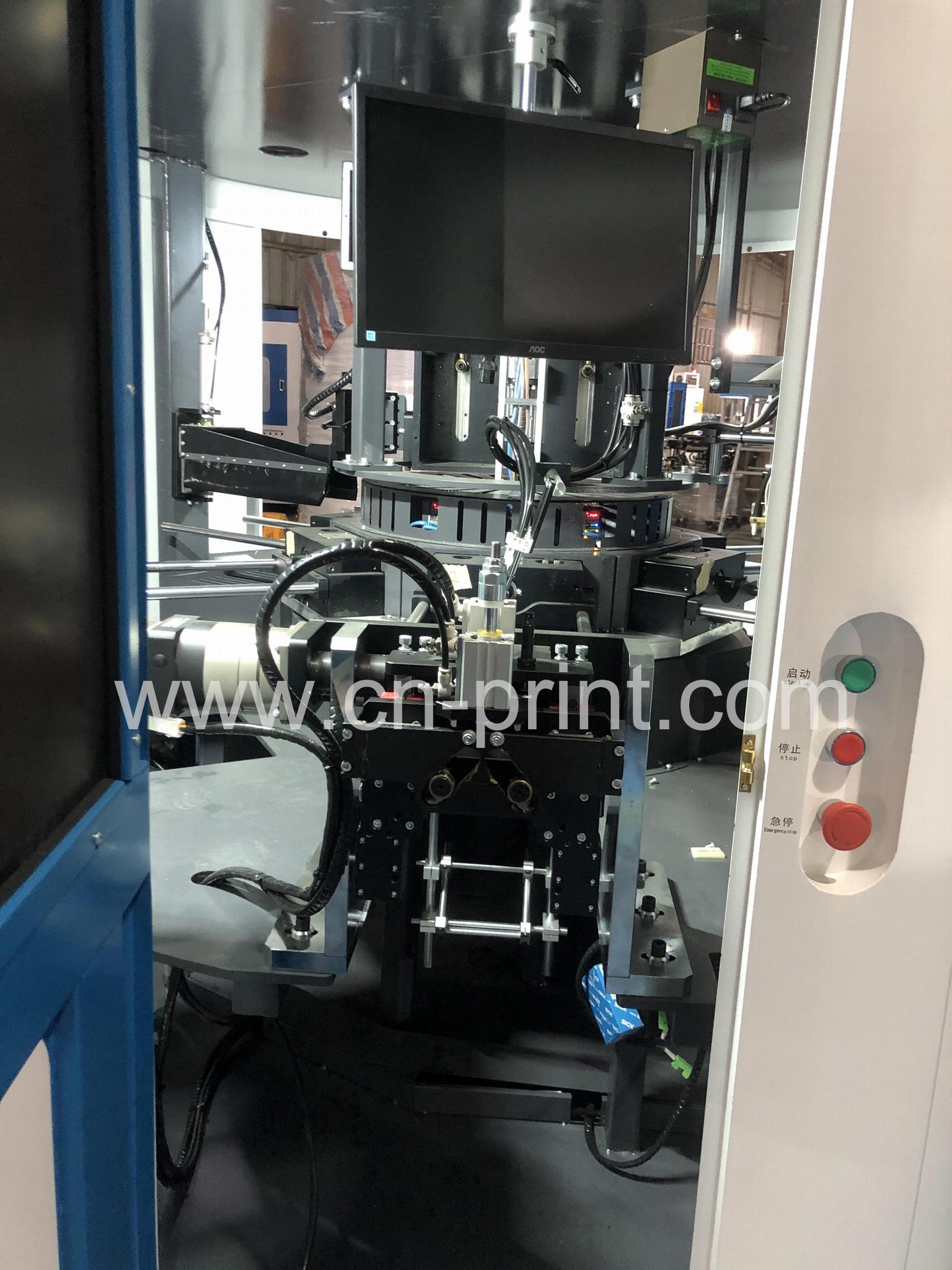

1.Auto loading and unloading with multi axis servo robot.
2.Dust clean

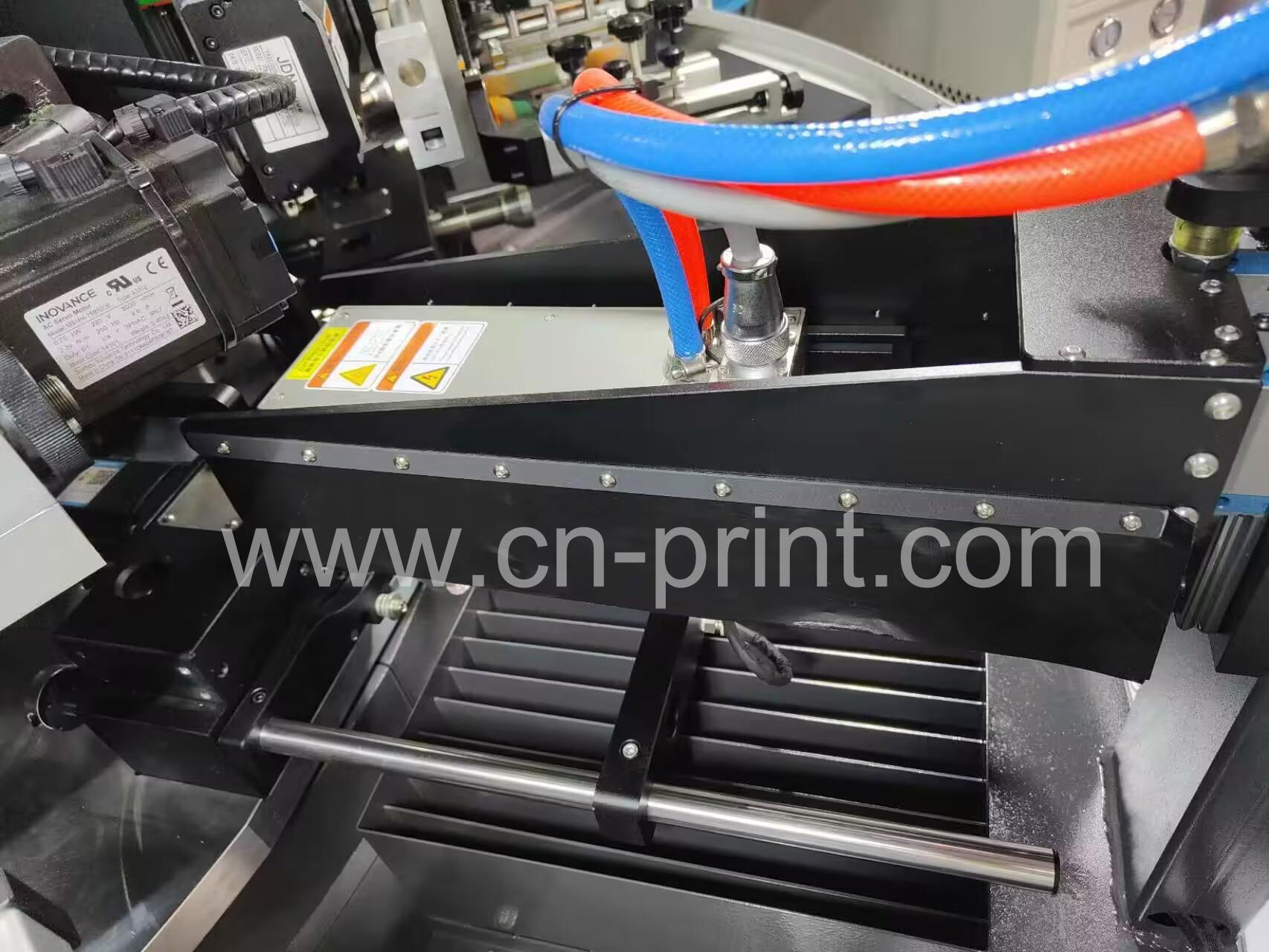

3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.

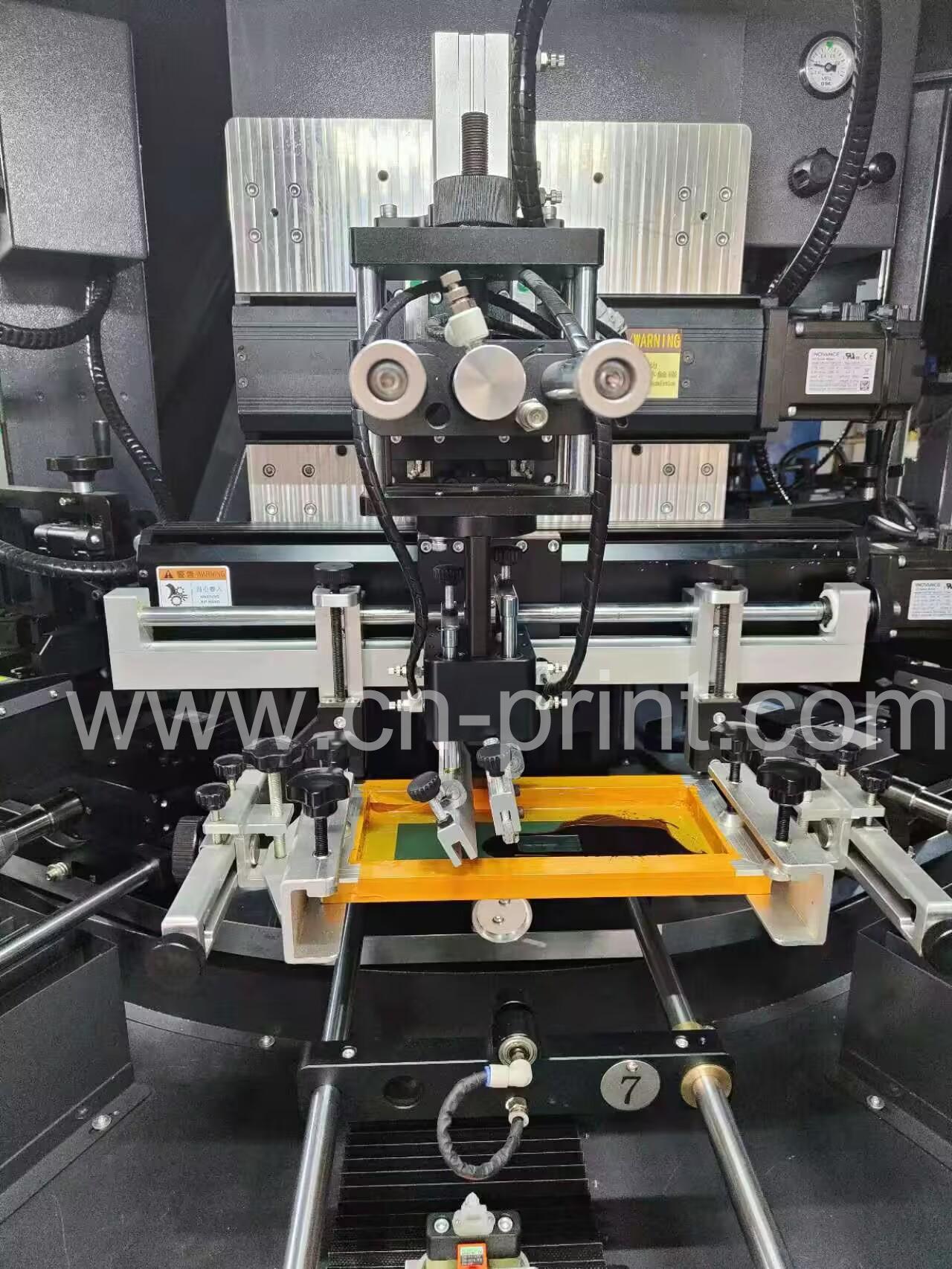

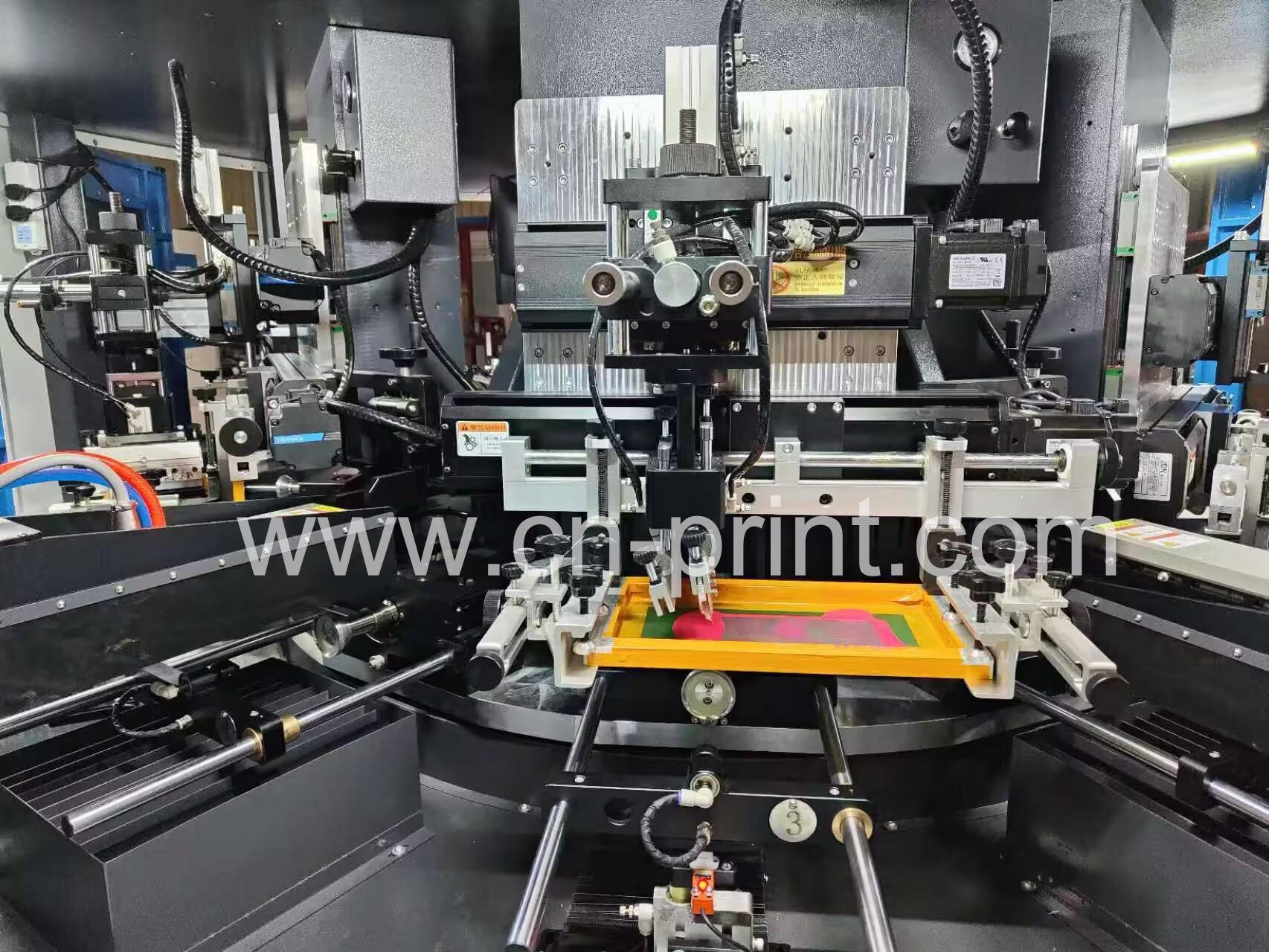

4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.

Specifications

  • 1.Moel :LC-CNC208
  • 2. Printing color:2color
  • 3. Printing speed: 2700-3600pcs/hr
  • 4.. Max Product size: round diameter 100mm, length 310mm
  • 5. Applicable products: Round ,Square,Oval and other special shape glass plastic bottles,jars,cans ,cups.
  • 6. Left and right stroke of scraper:355mm
  • 7. Scraper, oil return knife up and down stroke:Cylinder control 20mm, adjustable screw stroke 50mm
  • 8. Compressed air:5-6BAR
  • 9. Power supply: 380V/50HZ
  • 10. Total power: 20KW
Screen Printing Bottles Machine
Automatic Bottle Screen Printing Machine
Auto Discharge Serigrafa Screen Printing Machine
3 Colors Screen Printing Machine
Silk Screen Bottle Printing Machine
Automatic Plastic Bottle Screen Printing Machine
Automatic Bottle Screen Printing Machine Trade
Bottle Silk Screen Printing Machine
Bottle Screen Printing Machine
Screen Printing Bottles Machine
Screen Printing Machine Shampoo Bottles Uv Dryer
Automatic Plastic Bottle Screen Printing Machine
3 Colors Screen Printing Machine For Bottle Cup
Automatic Bottle Screen Printing Machine
Automatic Plastic Bottle Screen Printing Machine
Silk Screen Bottle Printing Machine
Automatic Bottle Screen Printing Machine
Silk Screen Bottle Printing Machine
Plastic Cup Printing Machine



Price Terms︰ FOB Shenzhen, China

Packing︰ Wooden case

Lead Time︰ 35 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Gross Weight︰ 2000 KG

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
