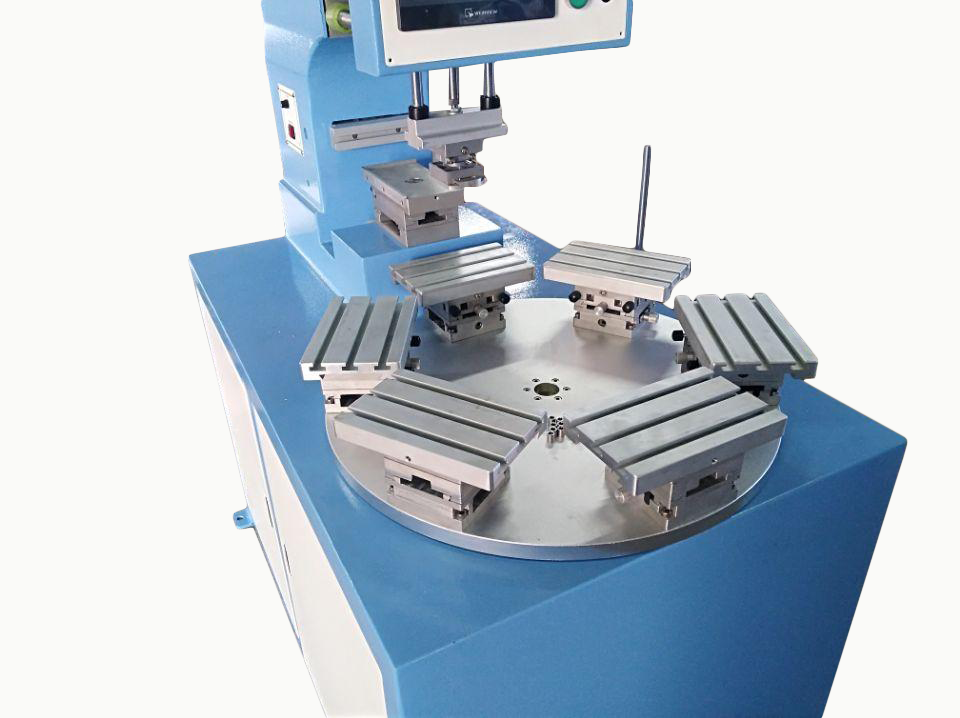

6 station rotary pad printing machine optical frame pad printing machine

6 station rotary pad printing machine optical frame pad printing machine

Model No.︰RPM106

Brand Name︰LC

Country of Origin︰China

Unit Price︰US $ 10971 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Our new 6-station rotary pad printing machine is cost-effective, can be customized for multiple stations, can also be customized for multiple colors, and can be installed with automatic unloading. It has a cam mechanism and a splitter. Printing is pneumatic or servo. And can be extended, fast and safe.

Motor + cam divider drive, fast speed, accurate positioning, maintenance-free, long service life
Fewer workstations, saving fixture costs, quick changeover and adjustment.

Suitable for metal, glass, ceramic, plastic, wood, leather and other materials in the printing area is relatively small flat or curved and irregular surfaces precision printing products. Such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, heel and so on.

Seal type oil cup pad printer using the latest nano-technology oil cup made of tungsten steel cutting ring, surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction, this machine than the traditional oil pan machines more fuel-efficient and more environmentally friendly.
Monochrome printing machine is the product of monochrome printing machinery, simple operation, easy maintenance and repair, and they are cheaper to use for most passenger use.

Advantage:

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Technical Parameters:

LC-RPM104

Printing colors: 1 color (can be cased)
Printing station: 4Pcs
Cylinder head up and down stroke: 75mm
Glide around the cylinder stroke: 125mm
Front and rear cup oil cylinder stroke: 100mm
Plate area: 100 × 200mm (4 '× 8')
Oil cup diameter: 60 (optional), 90mm
Table size: 200 × 125mm*4
The fastest speed: 2500 Pcs / Hr
Power: 110V / 220V 50Hz
Power: 35W
Pressure: 6 Bar
Air consumption: 56 Liter / Min

LC-RPM106
Printing colors: 1 color (can be cased)
Printing station: 6Pcs
Cylinder head up and down stroke: 75mm
Glide around the cylinder stroke: 175mm
Front and rear cup oil cylinder stroke: 150mm
Table size: 250 × 125mm
Plate area: 100 × 250mm (4 "× 10")
Oil cup diameter: 60 (optional), 90mm
The fastest speed: 2500 Pcs / Hr
Power: 110V / 220V 50Hz
Power: 35W
Pressure: 6 Bar
Air consumption: 58 Liter / Min
perfume bottle pad printing machine
tampo printing machine
pad printing machine pvc
shoe logo pad printing machine
led bulb pad printing machine
garment label pad printing machine
hard hat pad printing machine
super primex pad printing machine
ink cup pad printing machine
professional electronic single color printing pad
mini pad printing machine semi-automatic use
garment pad printing machine
pad printing machines for round applications
eraser pad printing machines
shoe pad printing machine
insole pad printing machine
nail pad printing machine
multicolor pad printing
lego pad printing
aluminium pad printing machine
high quality pad printing



Price Terms︰ EXW DongGuan

Packing︰ wooden case

Lead Time︰ 15 days after payment

Standards Certificate︰ CE

Application area︰ Label Printer,Tube Printer,Card Printer etc.

Main Parts︰ Splitter,Plc+ touch screen

Free Fittings ︰ 1.one pcs pad steel plate 2.one pcs silicone rubber pad 3.one pcs jig 4.tooling box 5.Englishi specifications

H.S.code︰︰ 8443198000
