PLC System Transverse Flow tampografia for insole with pad cleaning system

PLC System Transverse Flow tampografia for insole with pad cleaning system

Model No.︰LC-PM1-200MT

Brand Name︰LC

Country of Origin︰China

Unit Price︰US $ 6500 / unit

Minimum Order︰1 unit

Inquire Now

Product Description

LC-PM1-200MT PLC Transverse Flow Pad Printer for insole with pad cleaning system and vacuum table

This machine made with PLC control system, pad cleaning system and vacuum table for insole

Here is the video show the machine working

https://www.youtube.com/watch?v=L-zc5KmIRdY

https://www.youtube.com/watch?v=iPKSHWYISiA

https://www.youtube.com/watch?v=Lm4jNSZzFcU

Applications:
Suitable for insole,metal, glass, ceramic, plastic, wood, leather and other materials in the printing area is relatively small flat or curved and irregular surfaces precision printing products. Such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, heel and so on.


Parameters:
Seal type oil cup pad printer using the latest nano-technology oil cup made of tungsten steel cutting ring, surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction, this machine than the traditional oil pan machines more fuel-efficient and more environmentally friendly.


This machine is specially developed for long workpieces new oil cup machine, suitable for printing long pattern.


1, the PLC control, easy to operate, accurate and reliable.
2, consists of four counters.
3, the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful and practical.
4, can be adjusted up and down stroke and speed relatively independent plastic head.
5, part of the installation of the cylinder to promote oil cup that glide more smoothly.
6, each of the ink disk blocks can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.
7, a printing ink can stick two in order to obtain a larger printing ink.
8, you can not drop empty lines before and after the glue to prevent the pause when the ink to dry.
9, pneumatic components of Germany FESTO pneumatic components, the movement speed can be adjusted independently.


Technical Parameters:
Printing colors: 1 color (can be cased)
Printing station: 1Pcs
Cylinder head up and down stroke: 75mm
Glide around the cylinder stroke: 275mm
Table size: 400 × 165mm
Plate Size: 100 × 500mm
Oil cup diameter: 90mm
The fastest speed: 1200 Pcs / Hr
Power: 110V / 220V 50Hz
Power: 35W
Air consumption: 62 Liter / Min
Pressure: 6 Bar
Dimensions: 1300 × 530 × 1470mm
Body weight: 180Kg

print pad machin
PAD PRINT MACHIN
toy printing machine
pad printer machine
two color pad printing machine
pad printing machine for toys
pen pad printing machine
ball pen pad printing machine
safety helmet pad printing machine
2 color Golf tee pad printer
2 color manual pad printer
2 color toothbrush pad printin
Pad Printers
extra large pad printing machine
golf ball logo pad printing machine
lc pad printing machine
1-colour pad printing machine
pad print machin
round pad printing machine
tampography machine

Price Terms︰ EXW DongGuan

Packing︰ Plywood case

Lead Time︰ 10days after confirm payment

Standards Certificate︰ CE

Application area︰ insole,shoe-pad

Gross Weight︰ 198kg

Main Parts︰ PLC

H.S.code︰︰ 844319800

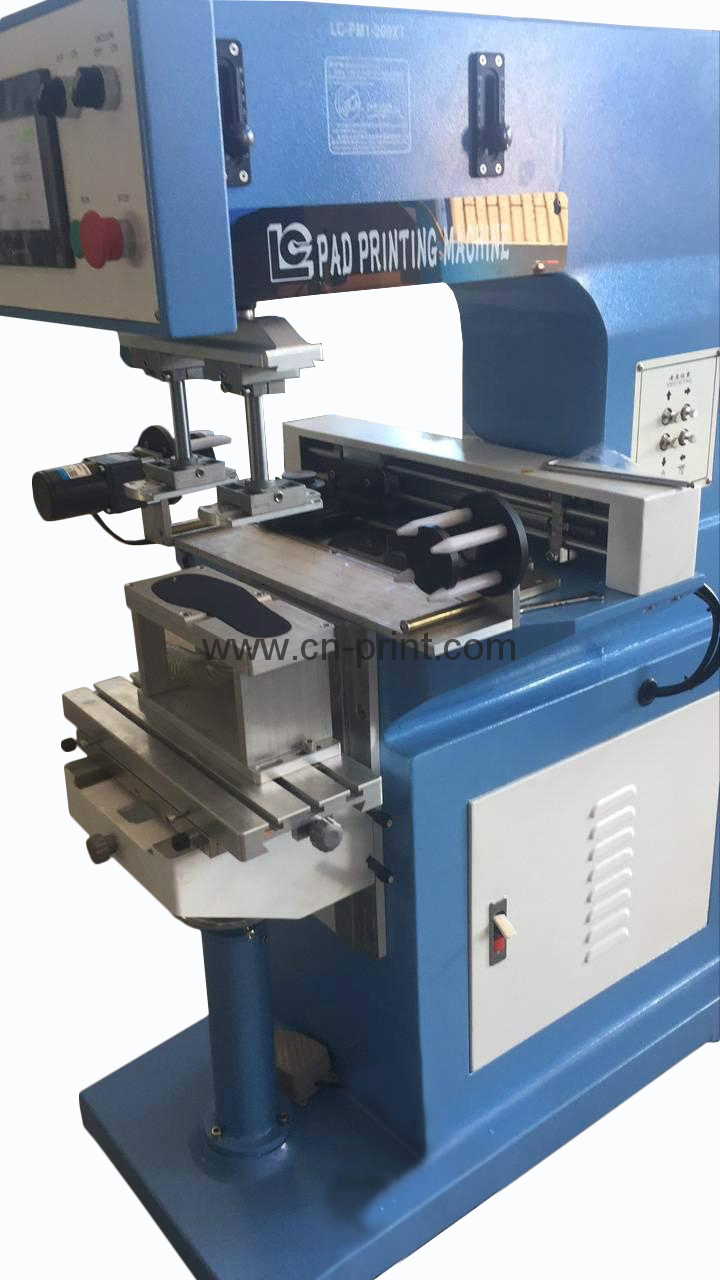

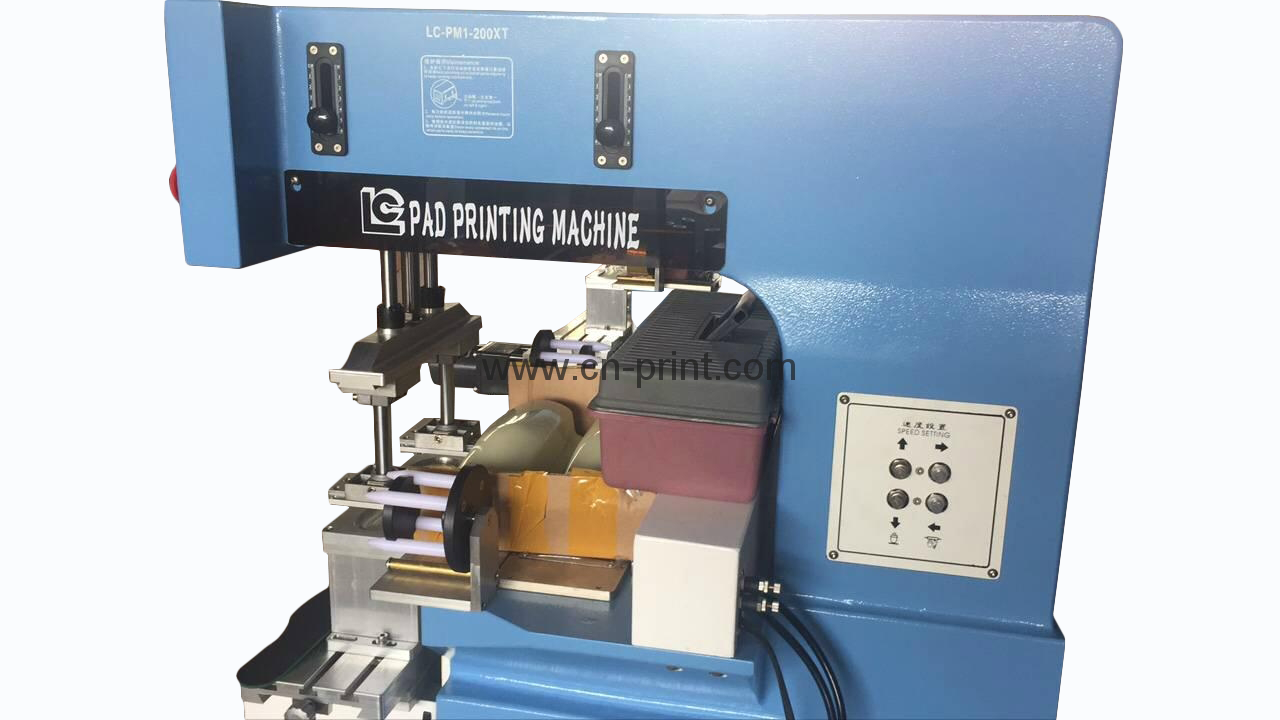

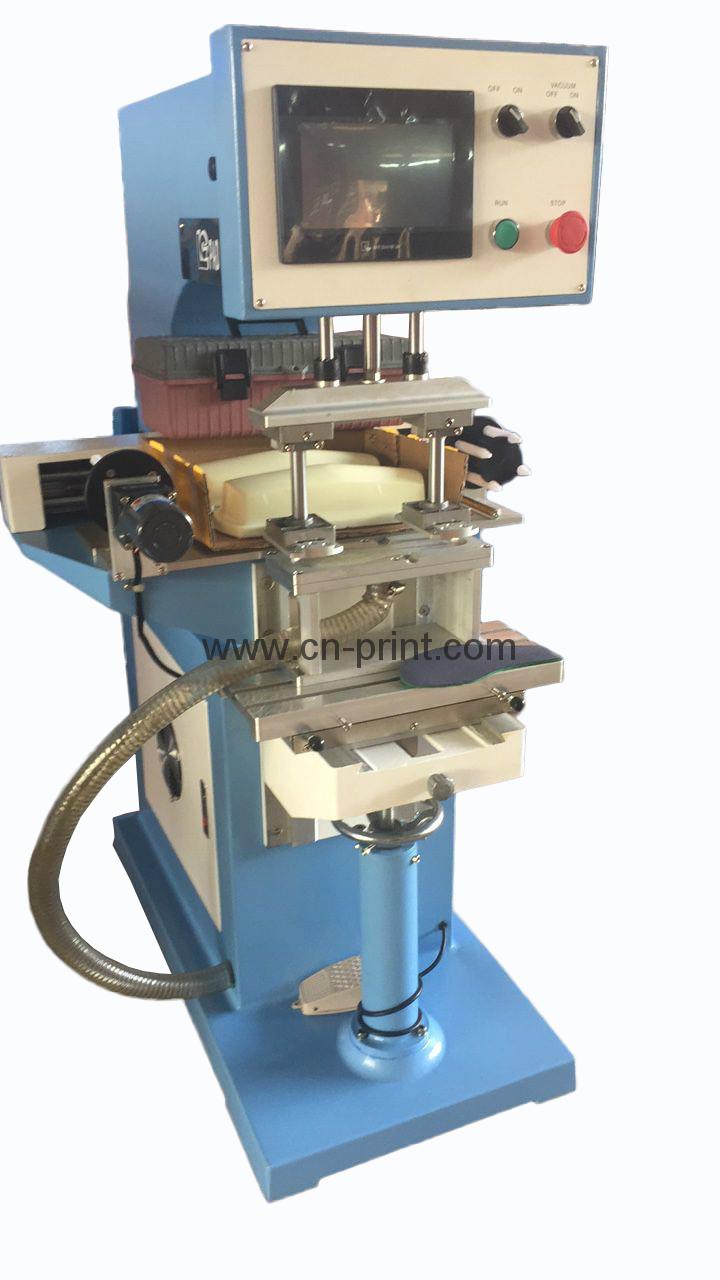

Product Image
