Four Colour Pad Printing presses pad for printing machine

Four Colour Pad Printing presses pad for printing machine

Model No.︰LC-SPM4-150/16

Brand Name︰LC

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 unit

Inquire Now

Product Description

Function
1. Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.

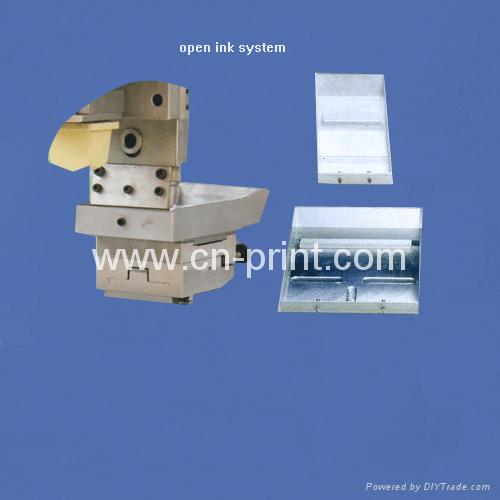

7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

1. Model No: LC-SPM4-150/16
2. Operation: Pneumatic
3. Printing Colors: 4
4. Max Plate area: 100*150mm2
5. Max printing area: 80*130mm2
5...Printing position: 16
6. Max printing speed: 1400PCS/H
7. Wattage: 220V/ 50Hz
8. Air pressure: 6 Bar
9. Machine size: 105*110*135cm
10. Machine weight: 200kg

1. Model No: LC-SPM4-200/16
2. Operation: Pneumatic
3. Printing Colors: 4
4. Plate area: 100*200 mm2
5. Max printing area: 80*180mm
5...Printing position: 16
6. Max printing speed: 1400PCS/H
7. Wattage: 220V/ 50Hz
8. Air pressure: 6 Bar
9. Machine size: 105*110*135cm
10. Machine weight: 220kg

free match :
4 pcs steel pad plates.

4 pcs rubber pad
English operating instructi


Main Parts ----FESTO cylinder made by Germany

shoe two colors pad printing machine with shuttle
4color shuttle pad printing machine
Tampografica Pad Printing Machine
neck label pad printing machine
perfume bottle pad printing machine
tampo printing machine
pad printing machine pvc
shoe logo pad printing machine
led bulb pad printing machine
garment label pad printing machine
hard hat pad printing machine
super primex pad printing machine



آلة طباعة وسادة الملابس
آلات طباعة الوسادة للتطبيقات المستديرة
ماكينات طباعة وسادة الممحاة
آلة طباعة وسادة الأحذية
ماكينة طباعة وسادة النعل
آلة طباعة وسادة الأظافر
طباعة وسادة متعددة الألوان
طباعة وسادة ليغو
آلة طباعة وسادة الألومنيوم
طباعة وسادة عالية الجودة

Price Terms︰ EXW DongGuan

Packing︰ Plywood case

Lead Time︰ 7 days after confirm deposit

Standards Certificate︰ CE

Application area︰ toys, pens, keyboard, plastic products, laber, hardware

Gross Weight︰ 230kgs

Main Parts︰ Festo cylinder made by germany

Free Fittings ︰ 4 pcs steel pad plates.

H.S.code︰︰ 84439000

Product Image
