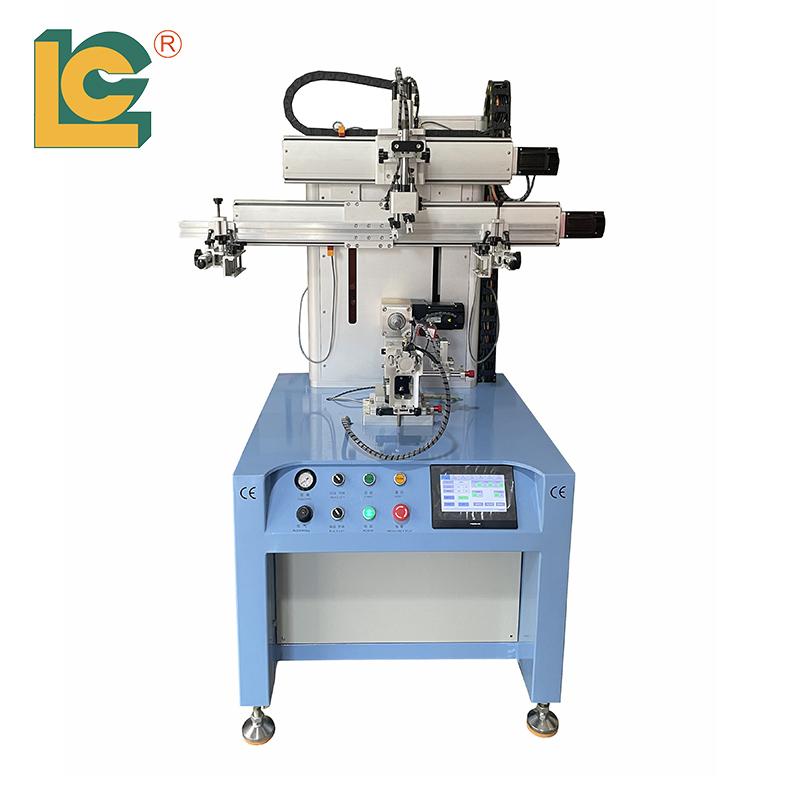

CNC servo special-shaped bottle screen printing machine Multi Color Screen Print

Model No.︰

LC-PA-400RS

Brand Name︰

LC

Country of Origin︰

China

Minimum Order︰

1 pc

Share on:

Product Description

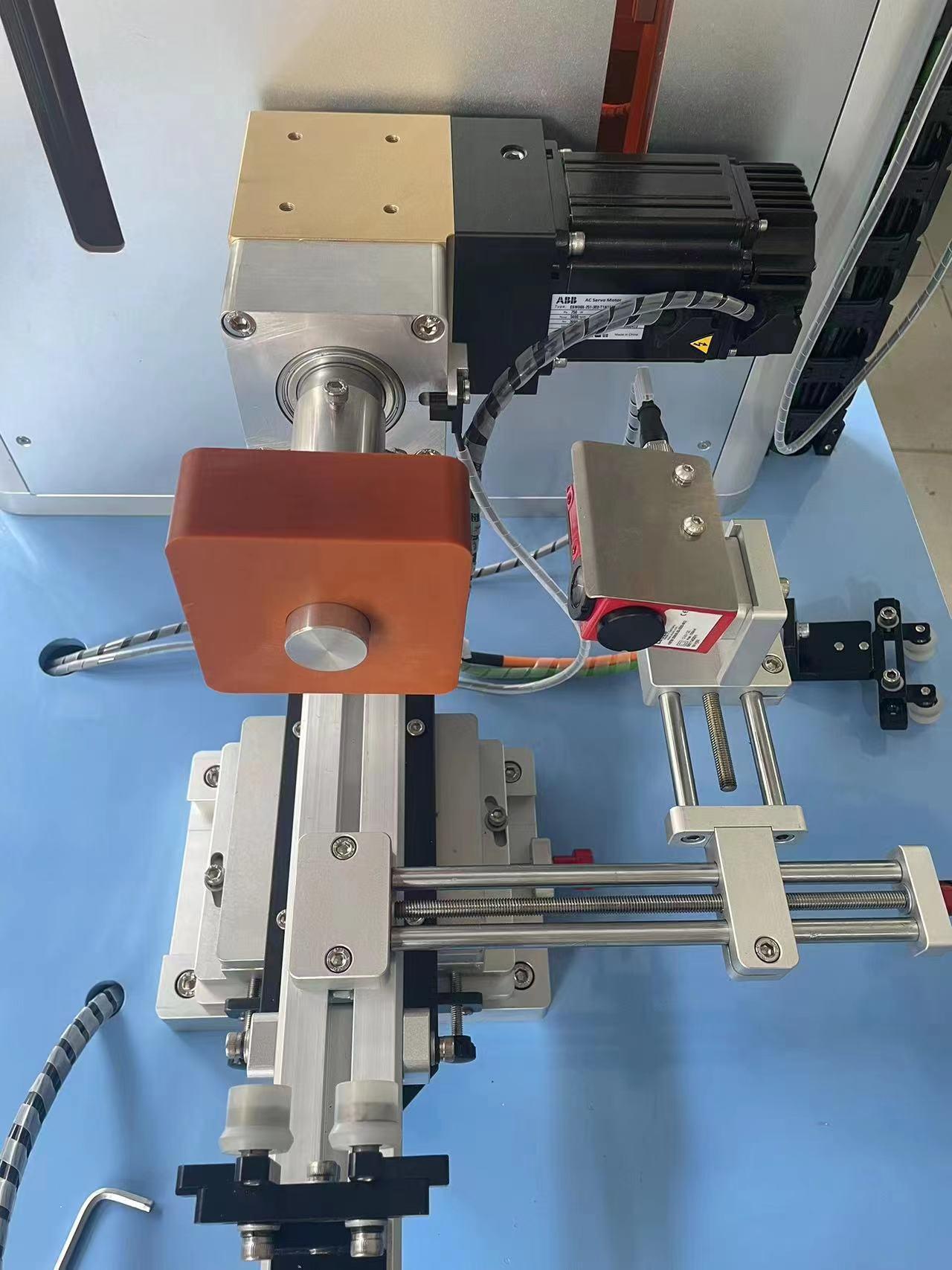

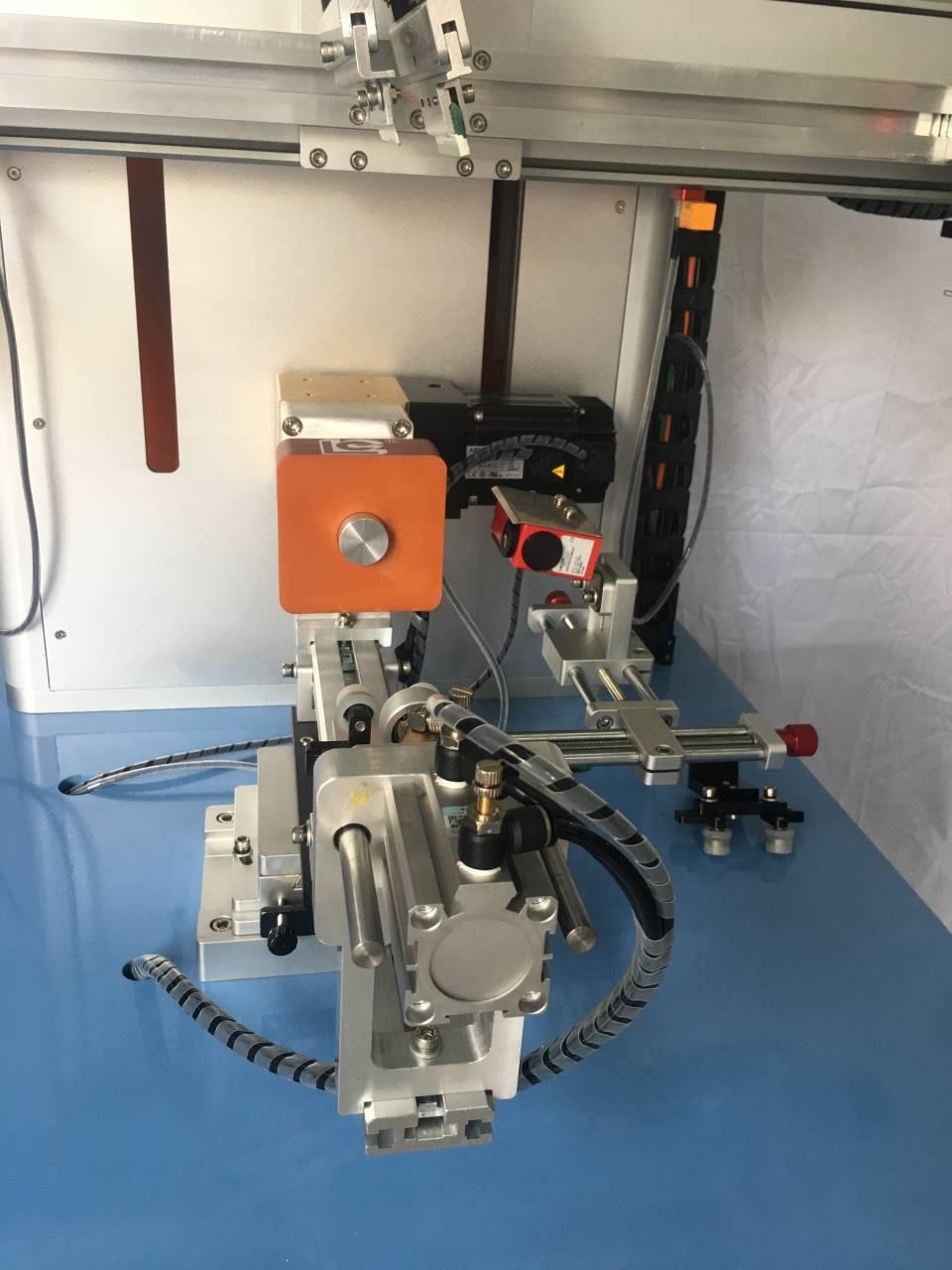

The machine can print round, oval,square,Triangle and Alien shape bottles and other more than 10 kinds of special-shaped bottles, the machine with Four-axis servo can print on four sides at one time, the machine with sensor system can print multi colors and register the color automatically .

Function:

1.High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;

2.Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

3.Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

4.Screen forme Clamping device free to adjust to fit different sizes of screen;

5.Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

6.Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

7.Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

8.Microcomputer program control operations;

9.4-Digit auto counter; to facilitate the measurement of production efficiency.

Specification:

1.Model number: LC-400RS

2. Product appearance:round, oval,square,Triangle and Alien shape bottles and other more than 10 kinds of special-shaped bottles.

3.(Round)Max. Printing diameter: Φ120mm

4.(Round)Max printing arc length: L: 370mm

5.Max Printing area:350*670mm

6.Printing Speed: 800-1200PC/H

7.Machine/ Weight: 400kg

8.Machine size: 98*88*139cm

9.Air pressure: 0.6Mpa

10.Air consumption:600 liter/min

11.Voltage power: 220V/ 60HZ

12.Packing size:1450*1150*1850mm



Mechanical parts and structure material selection:

Name

Specification

Brand

Place of production

printing speed

800~1000 PC/H





power

 220V 50-60HZ 2KW





Air pressure

4~6KG





Iron

Standard imported cold-drawn steel





Aluminum

National standard 6061 aluminum alloy





Up and down drive mode

1KW servo motor + ball screw

ABB

Switzerland

Left and right plate drive mode

750W servo motor + ball screw

ABB

Switzerland

Left and right printing head drive mode

750W servo motor + ball screw

ABB

Switzerland

Rotary drive mode

750W servo motor

ABB

Switzerland

Touch screen

TS 8070K2-21QT

Wigerlon

America

Motion controller

HX-CP1S08M

Hitachi

Japan

Power module

EH-PSA

Hitachi

Japan

Input module

EH-XD16

Hitachi

Japan

Output module

EH-YT16

Hitachi

Japan

The base plate unit

EH-BS3A

Hitachi

Japan

Servo driver

MFE190-04UP-06A0-2+N8020

ABB

Switzerland

Electromagnetic valve

DC24V

Mindman

Taiwan

Color mark sensor

KRTM 20M/N-20-3320-S12

Leuze

Germany

The print head cylinder

40-30

XINGCHENQIDONG

China

sliding block

HGW15

TBIMOTION

Taiwan

linear guideway

HGW15CC

TBIMOTION

Taiwan

3 Colors Screen Printing Machine For Bottle Cup

Cylindrical Screen Printing Machine

Cylindrical Screen Printing Machine Bottle Stand

Water Color Pen Marker Screen Printing Machine

Color Pensleeve Silk Screen Printing Machine

Ballpoint Pen Screen Printing Machine

Multi Color Screen Printing Machine

Multi Color Screen Printing Machine

Automatic Bottle Screen Printing Machine Trade

Automatic Bottle Screen Printing Machine Trade

3 Colors Screen Printing Machine

High Speed Bottle Screen Printing Machine

Automatic Bottle Screen Printing Machine Trade





Price Terms︰ FOB Shenzhen , China
Packing︰ Wooden case
Lead Time︰ 18 Days After Deposit
Standards Certificate︰ CE
Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C
Gross Weight︰ 480kg
Main Parts︰ Bearing, Motor, PLC
