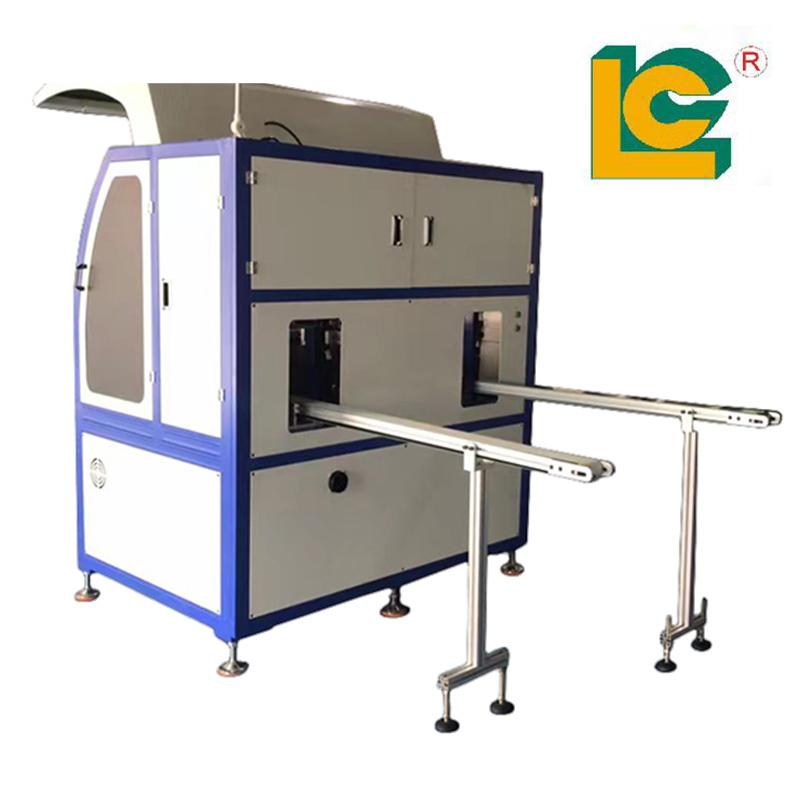

Automatic screen printing machine for glass bottle

Model No.︰

LC-CNC102

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 36360 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Features:

1.This machine is suitable for screen printing of round, oval, square, special-shaped bottles (radians on both sides are different) and double-sided two colors and other special-shaped containers

2.It has the advantages of convenient debugging and installation, stable and reliable operation, strong versatility and high printing efficiency.

3.This machine can be equipped with screen heating, ink scraper heating function and UV light fixing furnace at any time, can use ordinary self-drying ink printing, UV ink printing, high temperature solid ink printing brush, with high adaptability.



Outstanding advantages for the following bottle shapes and situations:

  • The elliptical bottle can be printed on both sides of the same color at the same time, greatly improving the printing speed, and can also be printed on one side.
  • The square plane bottle can realize one side to four sides of the same color one-time printing, can also choose one side to four sides of any printing surface.
  • The triangular bottle can be printed one time from one side to three sides of the same color, or choose one side of any printing surface from one side to three sides.
  • Bottles with hexagons, octagons and other polygons can be printed in one time with the same color from one side to eight sides, or one side of any printing surface from one side to eight sides.

Specifications

Circle printing diameter ф15mm~ф100mm
Circular printing height 20mm~240mm
Flat printing diameter R20mm~R180mm
Flat printing height 20mm~240mm
Power requirements AC220V 1Phase/AC380V 3Phase 50Hz /60Hz
Rated power 7.5KW
Pressure requirements 5 ~ 8bar
Machine size about L2700 * W2000 * H1700 (specific in kind)
mechanical weight about 1240kg
  • The fastest printing speed: when printing circular products, the fastest printing speed is about 50-60pcs/min, when printing flat bottles, the fastest printing speed is 70Pcs/ min (note: with bronzing function, the fastest printing speed is 40-50pcs/min).​

application:

This machine is suitable for glass packaging, bottle packaging, cosmetic packaging, medicine and food packaging containers, materials can be glass, plastic, ceramic, metal and so on.

Products Description:

  • It is mainly composed of automatic bottle feeding structure, automatic dust removal device, automatic feeding structure of manipulator, transmission structure of full servo system, automatic printing and brushing main body (printing system).
  • Using modular programmable processor and touch screen display control system, running more smoothly.
  • The fixture is  easy to replace the bottle shape, simple debugging and installation, more convenient operation.
  • Machine stability, high precision;  You can also choose to install UV light solid treatment system and screen heating system, suitable for UV ink and high temperature ink arbitrary switch.
Silk Screen Bottle Printing Machine
Cylindrical Screen Printing Machine
Automatic Bottle Screen Printing Machine
Water Color Pen Marker Screen Printing Machine
Glass Bottle Screen Printing Machine
Bottle Silk Screen Printing Machine
Automatic Plastic Bottle Screen Printing Machine
Automatic Bottle Screen Printing Machine
Cylindrical Screen Printing Machine Bottle Stand
Automatic Bottle Screen Printing Machine
Multi Color Screen Printing Machine
Silk Screen Bottle Printing Machine
Multi Color Screen Printing Machine
Water Color Pen Marker Screen Printing Machine
Color Pensleeve Silk Screen Printing Machine
Automatic Plastic Bottle Screen Printing Machine
Automatic Plastic Bottle Screen Printing Machine
3 Colors Screen Printing Machine For Bottle Cup
High Precision Screen Printing Machine
Automatic Plastic Bottle Screen Printing Machine
Automatic Bottle Screen Printing Machine Trade
Automatic Plastic Bottle Screen Printing Machine
Automatic Bottle Screen Printing Machine Trade
High Speed Cup Printing Machine
Cup Printing Machine
High Speed Cup Printing Machine
Automatic Bottle Screen Printing Machine Trade
Automatic Plastic Bottle Screen Printing Machine
Round Bottle Printing Machine
Auto Uv Screen Printer
Full Servo Automatic Silk Screen Printing Machine
Full Servo Automatic Silk Screen Printing Machine
Automatic Loading System Auto Screen Printer
Cylindrical Tubes Screen Printing Machine
Best Sale Auto Screen Printer
Auto Uv Screen Printer
Auto Uv Screen Printer
Best Sale Auto Screen Printer
Automatic Loading System Auto Screen Printer
Round Bottle Printing Machine
Bottle Screen Printing Machine For Burgundy Bottle
Cosmetics Cap Screen Printing Machine
Bottle Screen Printing Machine For Burgundy Bottle





Price Terms︰ FOB Shenzhen , China
Packing︰ Wooden case
Lead Time︰ 35 Days
Standards Certificate︰ CE
Application area︰ glass bottle
Gross Weight︰ 1240kg
Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning

Product Image
