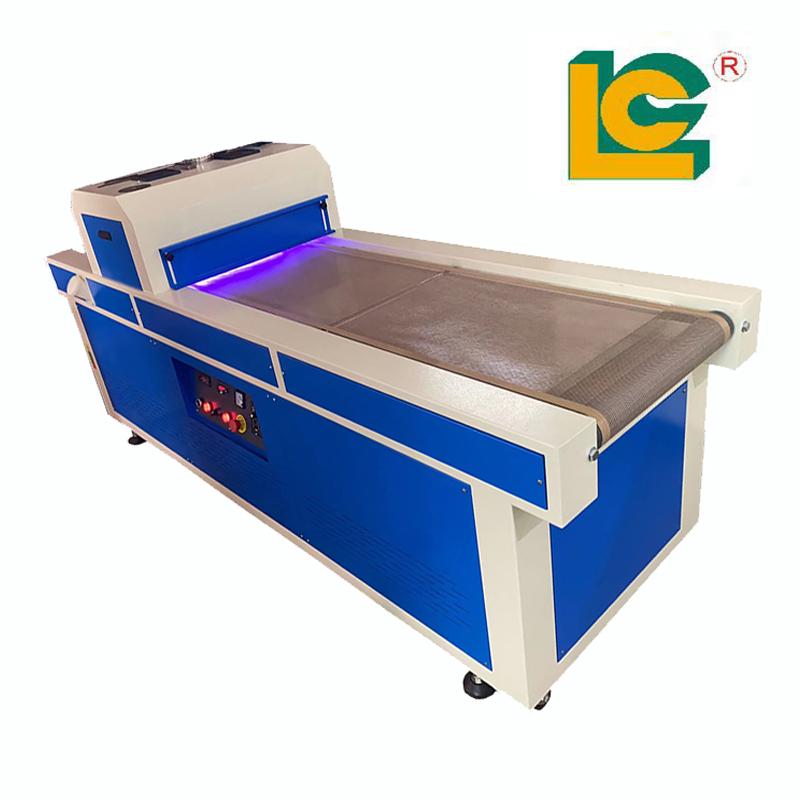

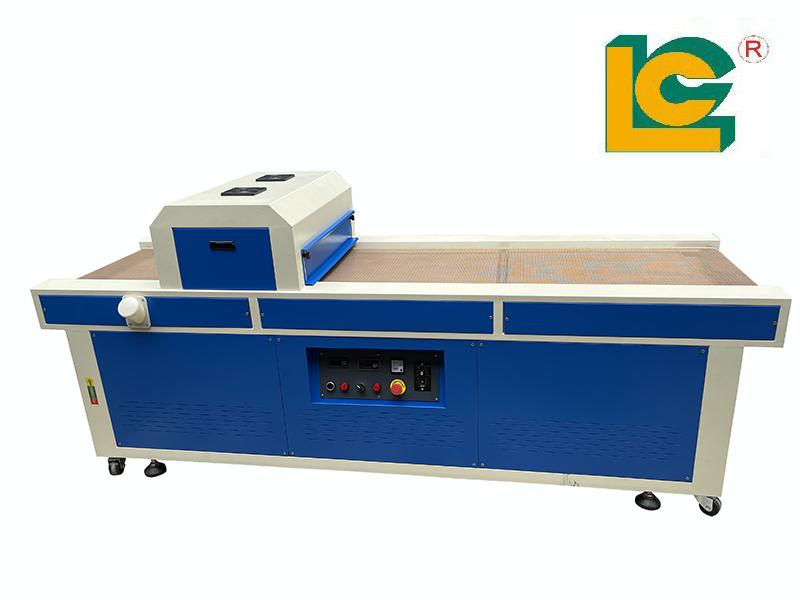

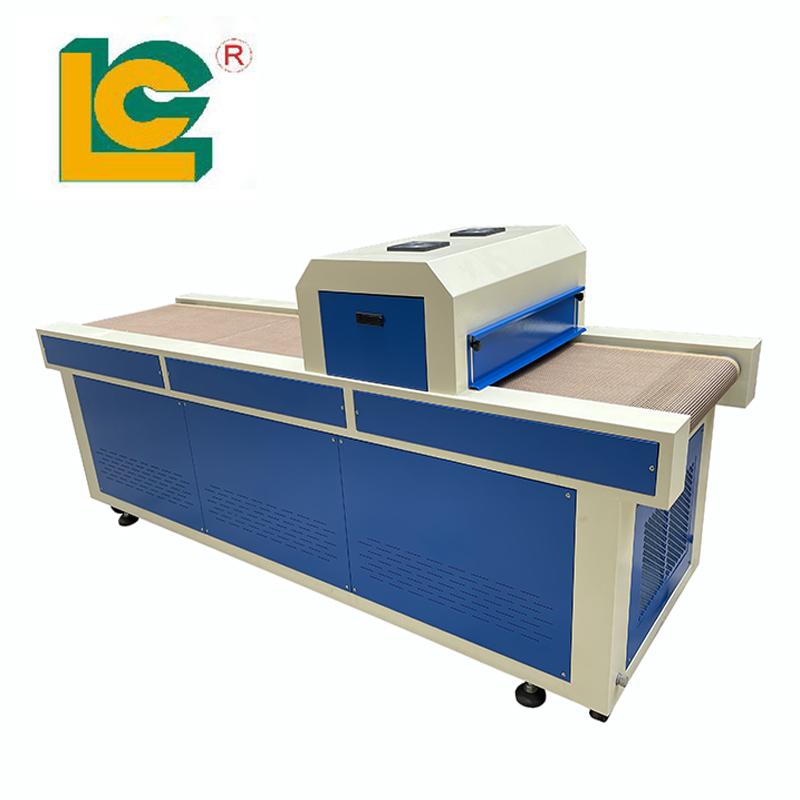

Our last new LED UV Curing Model is TM-500LEDUVF.The appearance is neat and generous. The LED water tank is inside the cabinet. The white one is the water inlet, and there is an LED UV lamp inside.
Suitable for high precision electronic products, sheet, plastic low temperature LED UV curing.LED lights can last for ten years.Environmental protection and energy saving.
1. Cold light source, no heat radiation, suitable for bonding heat sensitive materials
2. Immediately on and off, no preheating is required, and the irradiation intensity can reach 500mw/cm2--12000mw/cm2 or more.
3. Compact size, making it easy to integrate into fully automated production lines and equipment
4. UV LED has no infrared radiation, no harmful gas, and meets ROHS standards. Safer and more environmentally friendly than traditional mercury lamps
5. The service life is over 20,000 hours, which can greatly reduce operating costs and maintenance work hours.
6. The connecting cable is a bending-resistant cable, which can be installed at the movable part at will, to meet the needs of repeated movement.
Conveyor belt size
L2500x W500MM
Infeed length
1500MM
UV curing area length
500mm
Exit length
500mm
UV Process shine area
500×400mm
Conveyer speed
0-10m/min
UV Lamp power
3.5KW x1 PC
Conveyer belt size
2500x500 (LxW)
UV light power supply
220V/50 HZ
UV Machine Dimension（LxWxH）
2500×520×1350mm
Net Weight
180kg
Price Terms︰
FOB Shenzhen , China
Packing︰
Wooden case
Lead Time︰
18 Days After Deposit
Standards Certificate︰
CE
Application area︰
Electronic products, sheet, plastic low temperature LED UV curing
