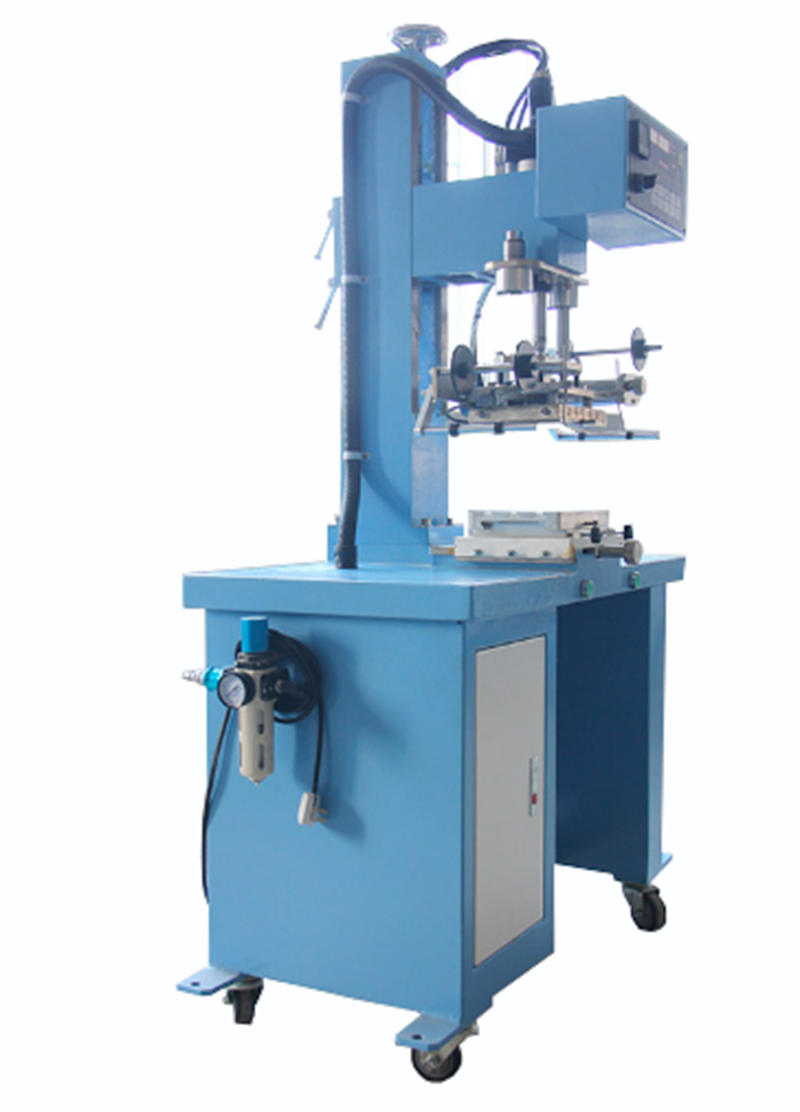

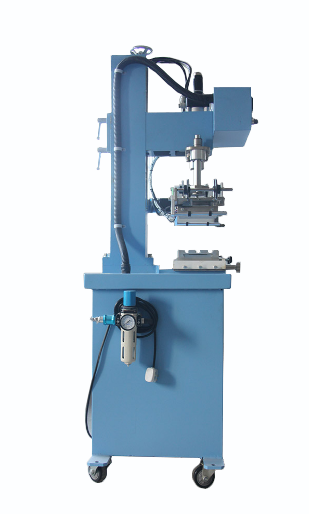

Pneumatic Embossing Stamping Machines TC-200

Model No.︰

TC-200

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 2030 / set

Minimum Order︰

1 set

Share on:

Product Description

TC-200  Hot stamping machine is suitable for surface plastic shell, PVC bag, wood, furniture, electrical products, paper, toys and other hot stamping processing.

1.With the crank design,which has powerful stamping pressure and little consumption of air pressure.
2.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
3.Stamping pressure,temperature and time are adjustable.
4.Automatic foil feeding and rolling with adjustable function.
5.Height of the stamping head is adjustable.


Parameter

1. Name:Pneumatic Plane hot stamping machine.
2. Model NO: TC-200

3. Product shape:Plane

4. Hot stamping  size--200*150mm

5. power:220V/50Hz
6. Electrothermal Power:1500W
7. Air Pressure:0.6-0.8 Mpa
8. operation:Pneumatic
9. system control:automatic
10.Stamping foil winding length - < 120 mm
11.Stamping speed: 1300 PCS/H
13.Machine Outline Dimensions: 700*620*1600mm
14.Machine Weight:190KG



Package dimensions: 125*76*177cm

Package weight: 210kg









Price Terms︰ FOB SEA PORT CHINA
Packing︰ PLYWOOD CASE
Lead Time︰ 5 DAYS AFTER PAYMNET
Standards Certificate︰ CE
Application area︰ PLASTIC TOYS, SPARE PARTS
Gross Weight︰ 210kg
Main Parts︰ Germany cylinder ,heating panle
Free Fittings ︰ gold foil
