TM-500UVF-B high speed UV dryer machine suit for heidelberg printing machine

Model No.︰

TM-500UVF-B

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 4300 / unit

Minimum Order︰

1 unit

Share on:

Product Description

This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc

UV curing machine supporting offset printing must meet to UV lamp curing temperature should not exceed 45 ° C, it does not make prints telescopic deformation, curing speed must reach 9000 / hour

Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV  curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing,

Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light emitting electrode, filled with high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance

This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%

High Speed UV curing machine

Quick Details

  • Condition: New
  • Type: UV curing machine
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LC
  • Model Number: TM-500UVF-B
  • Voltage: AC380V
  • Power(W): 7.5kw
  • Dimension(L*W*H): 500*100*2000mm
  • Weight: 380kg
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Power(W): 7.5kW
  • Wattage: 380V
  • standard: CE,ISO-9001-2000
  • Brand: LC,China
  • Price Terms: FOB SHENZHEN CHINA
  • Lead Time: 7 DAYS AFTER PAYMENT
  • Warranty: 1 year
  • Weight: 330kg
  • Dimension(L*W*H):: 500*100*2000mm

Packaging & Delivery

Packaging Details: wooden case
Delivery Detail: 7 days

Specifications

Flat uv dryer machine for printing ink
1,UV Lamp lifetime can reach 1000-1200 hr
2,UV lamp operating temperature is 50 degree.



Product Description



Product name

TM-500UVF-B Plane Surface UV dryer machine for printing ink with heidelberg printing machine transmit bridge

Model No

TM-500UVF-B

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description



Our UV Curing Machine TM-500UVF-B  be fit to  UV drying , Paper UV PRITNING  ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating
energy is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area

Parameter

1. Model  NO. TM-500UVF-B
2. UV Drying  products---500*100*2000mm
3. Conveyor belt size---L2000* W500MM
4. UV Lamp power---2PCS*3KW /380V
5. Total wattage---7.5KW
6. Wind fan wattage---500W/380V
7. motor wattage---1000W/1P/380V
8. Conveyor speed---0~30m/min
9. Speed change ways---Continue
10. UV Machine  Dimension---L*W*H2020*700*1350
11. Weight---330kg

Usage

This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc

High Speed UV curing machine

Free fittings

1Set/Sets

customer

USA, UK, Germany, Spain, South Africa,

Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term



100% T/T in advance(negotiation)



Price Terms︰ FOB Shenzhen
Packing︰ wooden case
Lead Time︰ 7 working days after comfirm the payment
Standards Certificate︰ CE
Application area︰ This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc High Speed UV curing machine
Gross Weight︰ 400kg
Main Parts︰ UV lamps
Free Fittings ︰ 2 UV lamps
H.S.code︰︰ 841939090

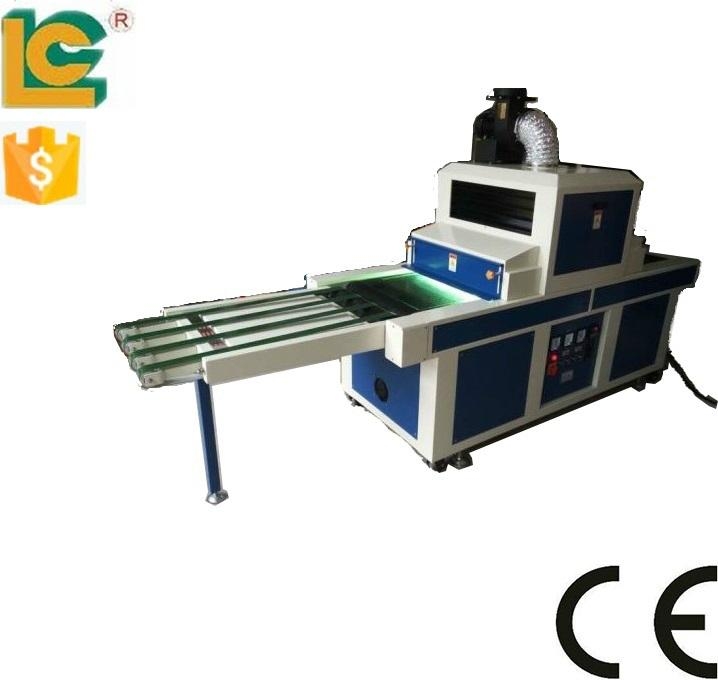

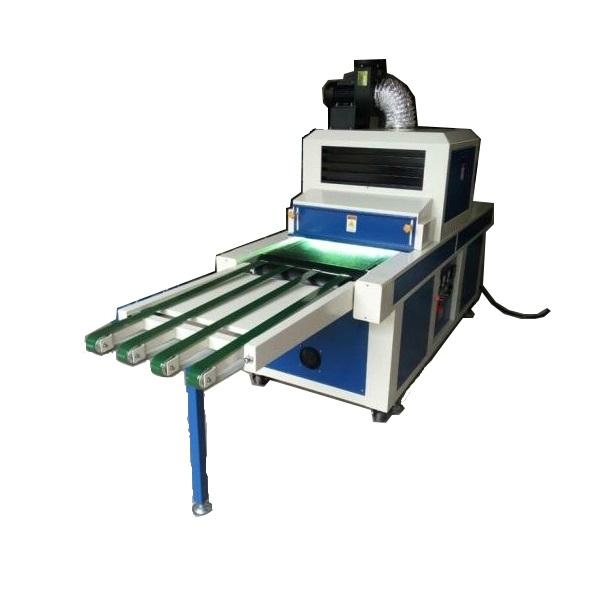

Product Image
