PLC Control Servo Positioning Hot Stamping Machine

Model No.︰

HS300S

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 9500 / pc

Minimum Order︰

1 pc

Share on:

Product Description

This hot stamping machine is designed for stamping on the surface of round objects like tube, bottles.Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, etc....It adds servo system for color registration to ensure the stamping position is accurate.With fast speed and low energy consumption.

Function:
1. Add servo system for color registration. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor .

2.With the crank design,which has powerful stamping pressure and little consumption of air pressure.

3.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.

4.Stamping pressure,temperature and time are adjustable.

5.Automatic foil feeding and rolling with adjustable function.

6.Height of the stamping head is adjustable.

Specification:

1. Model number---HS300S

2.Sensor---Germany Brand Color Sensor

3.Core---SERVO Motor & PLC

4.Hot Stamping plane plate size---200*150mm

5.Cylinder size---60mm

6.Wattage---3500W

7.Max.stamping pressure---4900N

8.Max.stamping speed---1000 pcs/hr

9.warranty---one year

10.Gross dimension---124*89*166cm

11.Gross weight---300KG



Price Terms︰ FOB ShenZhen, China
Packing︰ WOODEN CASE
Lead Time︰ 15 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ GIFT, TOYS, Plastic , package case , box ,craft,fabric handbag,leather,paper and plastic.
Main Parts︰ HEATING PLATE 、PLC Control Servo System

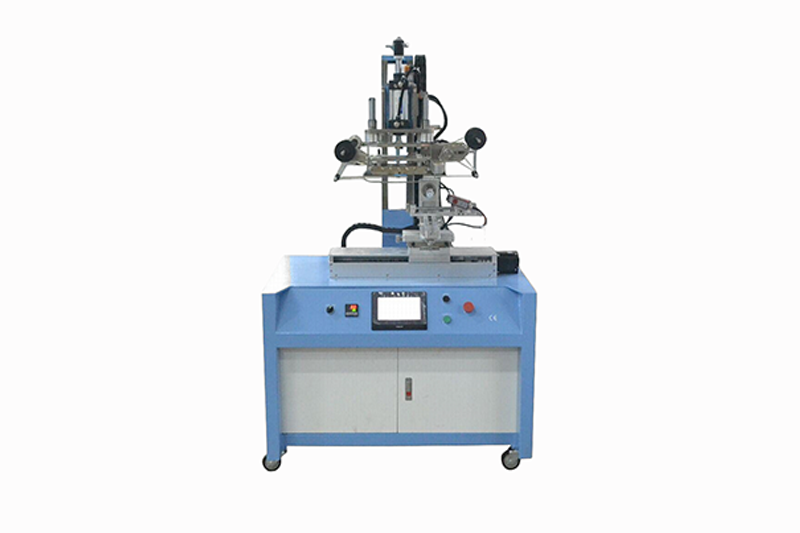

Product Image
