Rotary Single color Transverse Flow Pad Printer

Model No.︰

LC-PM1-200RT

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 unit

Share on:

Product Description

LC-PM1-200RT is use for some pad printing special parts, too lenth, too width, ink cup could transverse flow moving, so that, a most big size pars it is can pad printing also.

PLC contorl, can printing round object 360 degree,do not need people adjust the speed of the machine and adjust the produtct station

The transverse closed cup with a print area of 90 mm diameter. Is an ideal for synchronizing with our rotary indexing systems. It is ideal for Printing onto rulers, catheters, syringes, pen clips, pen barrels, reflector tubes, electrical, electronic housings, badminton rackets, pvc/rubber pipes and pvc casing etc. The system is capable to print images as long as o 380-400 mm x 15-20 mm Application specific synchronization and mounting packages can be tailor made to meet your specific requirements.

The model comes with a standard working table for product up-down setting and a fabricated base as a standard feature


1.Model  NO  :LC-PM1-200RT
2.operation :pneumatic
3.Printing Colors:1
4.  Max. printing area :85x450 mm
5.Plate area 100*500 mm2
6.Sealed  ink cup diameter:¢90mm
7.   Max  printing speed:1600PCS/H
8.Wattage:220V/ 50HZ 110V/60HZ

9.Air pressure: 6 Bar
10.  Machine size:860x460x1400mm(LxWxH)

11.  Machine  weight :148kg


Free Fitting :
1.one pcs  pad steel plate
2.one pcs silicone rubber pad
3.one pcs jig
4.tooling box

5.Englishi specifications



Price Terms︰ EXW DongGuan
Packing︰ WOODEN CASE
Lead Time︰ 5 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ LENGTH SHAPE PRODUCTS,Plastic ,hardware
Gross Weight︰ 180KG
Main Parts︰ CYLINDER MADE BY GERMANY
Free Fittings ︰ INK CUPS , SILICONE PADS , STEEL PLATE
H.S.code︰︰ 8443198000

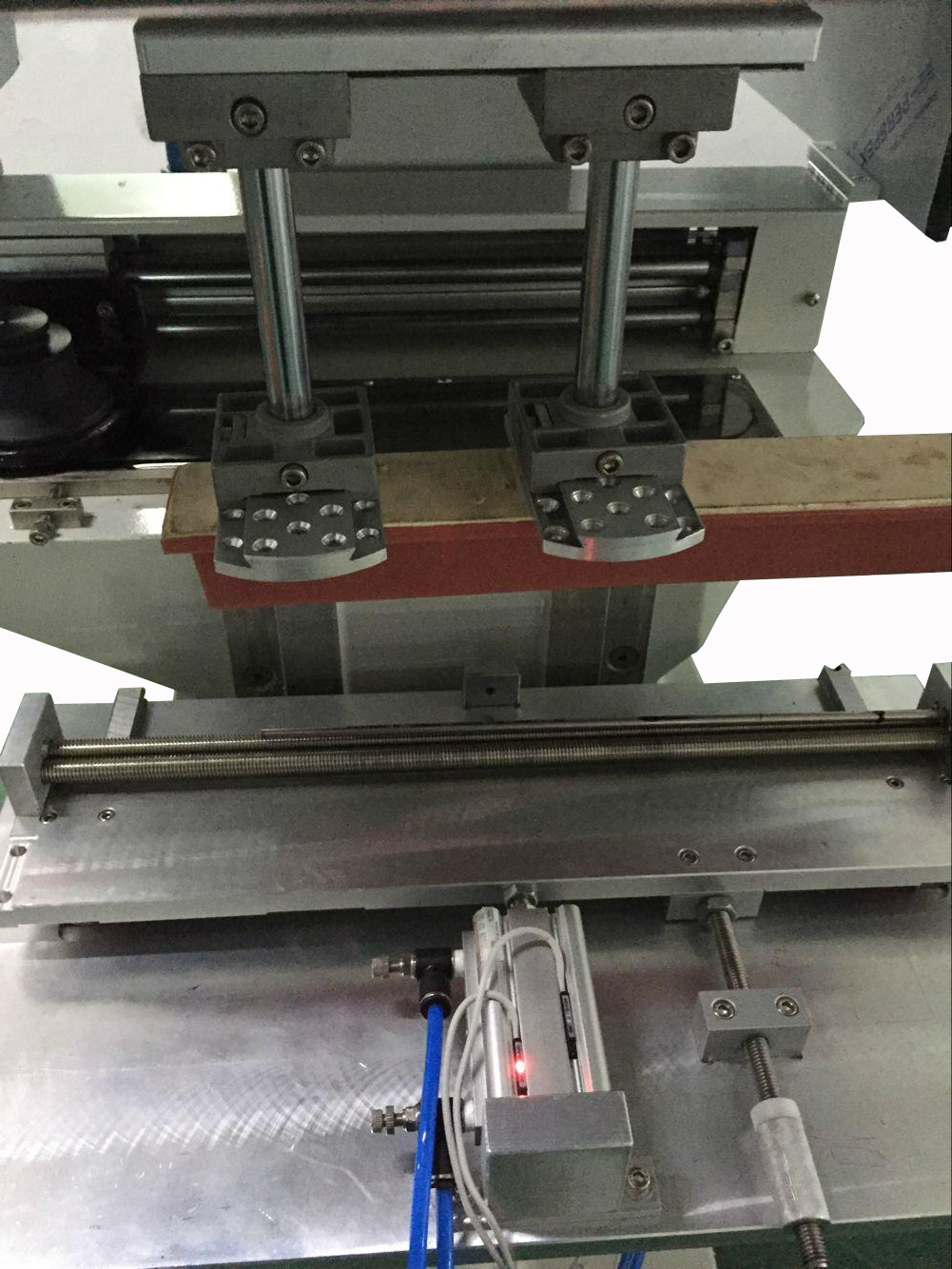

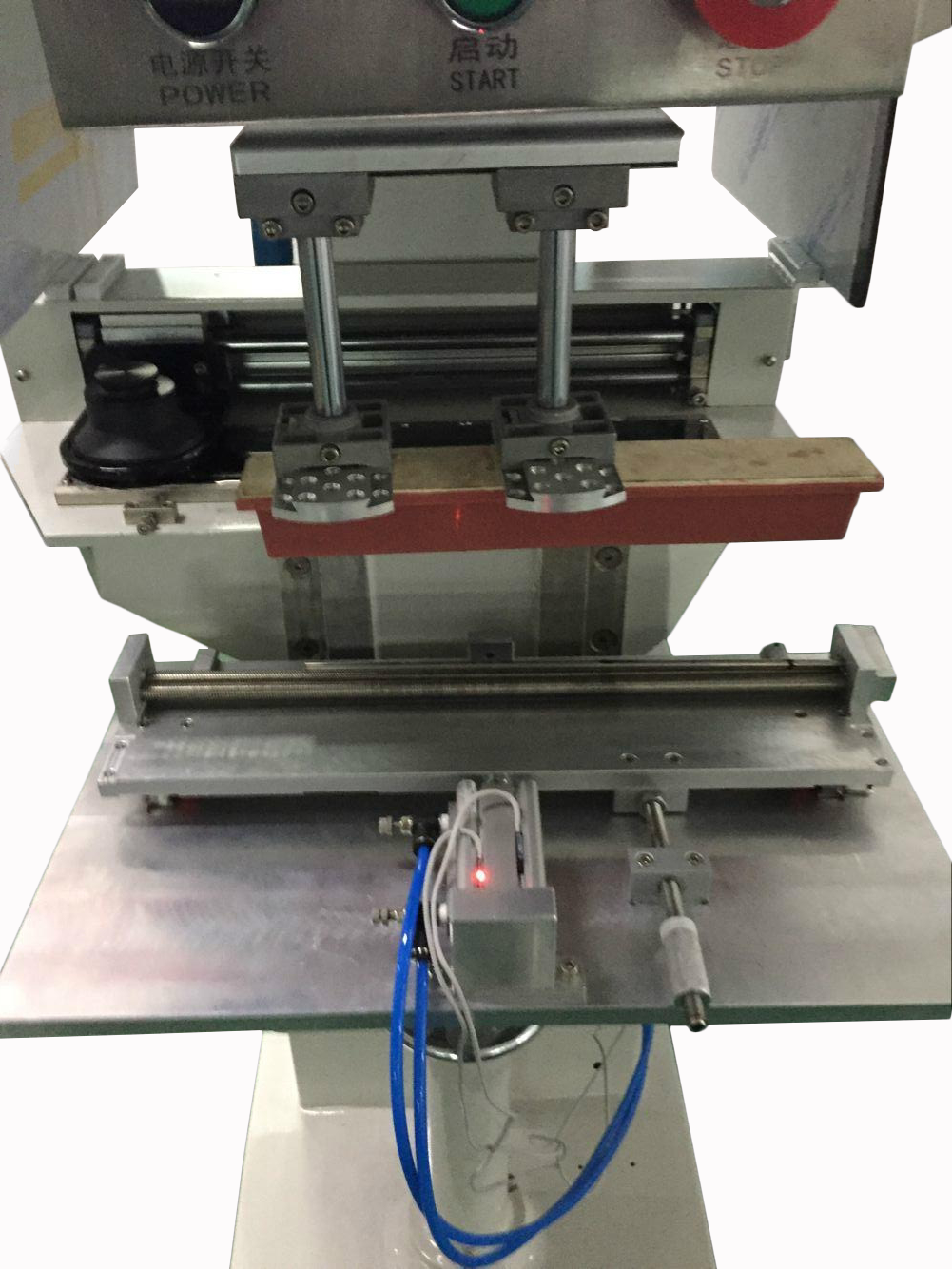

Product Image
