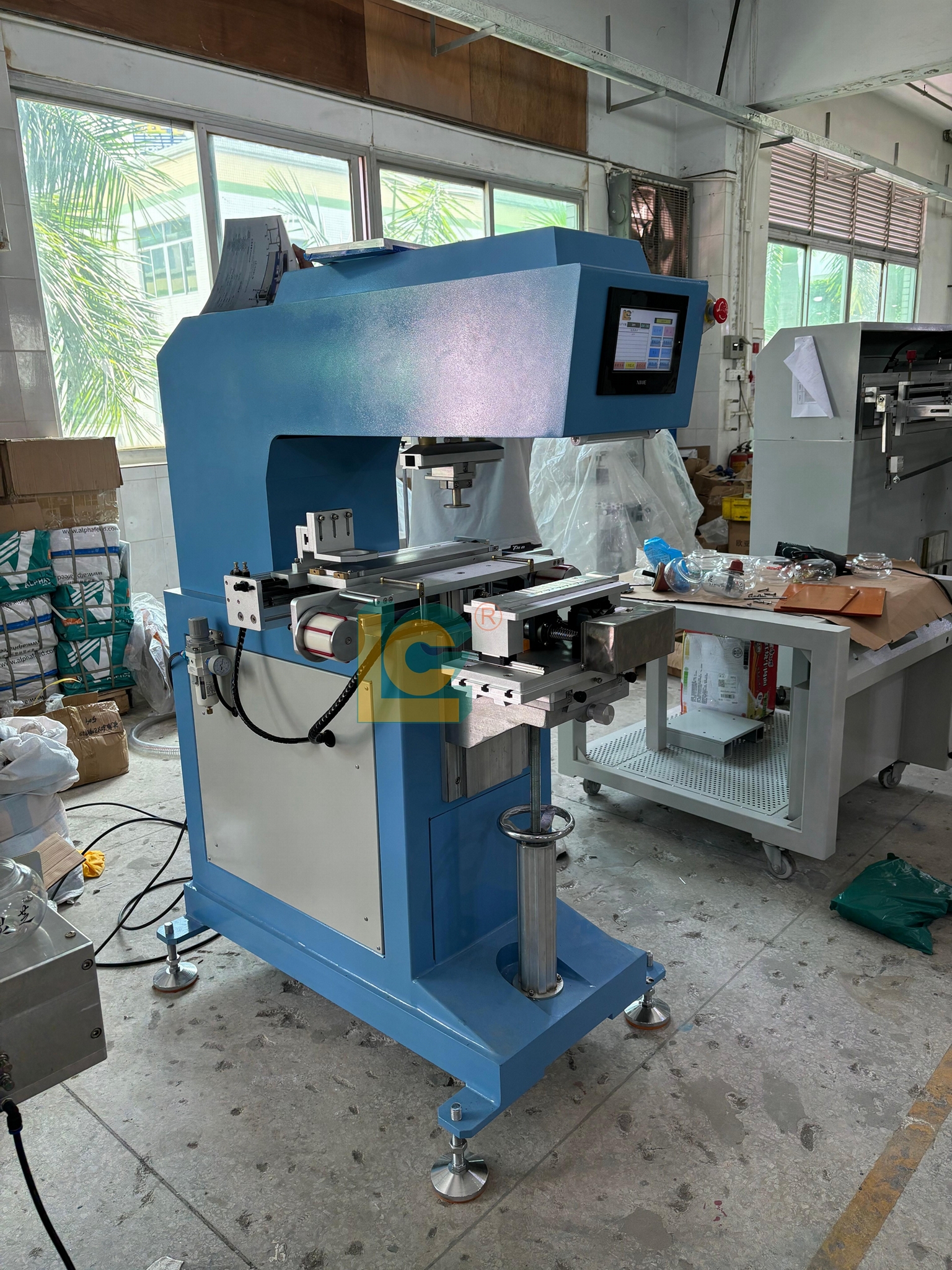

Semi-automatic 1color Ink Cup Pad Printer for medical needle
Parameter:
1.Print head front and rear travel: 300mm
2. Standard steel plate size: 100×400x0.5mm
3.Oil diameter of oil cup: 90mm
4. Maximum printing size: 70×200mm
5. Printing speed: 600~800pcs/hr
6. Printing station: 1 position
7.Power supply: 220V 60/50Hz, 300W
8.Air pressure: 5~7BAR
9.Machine size :1100*650*1500mm
Advantages:

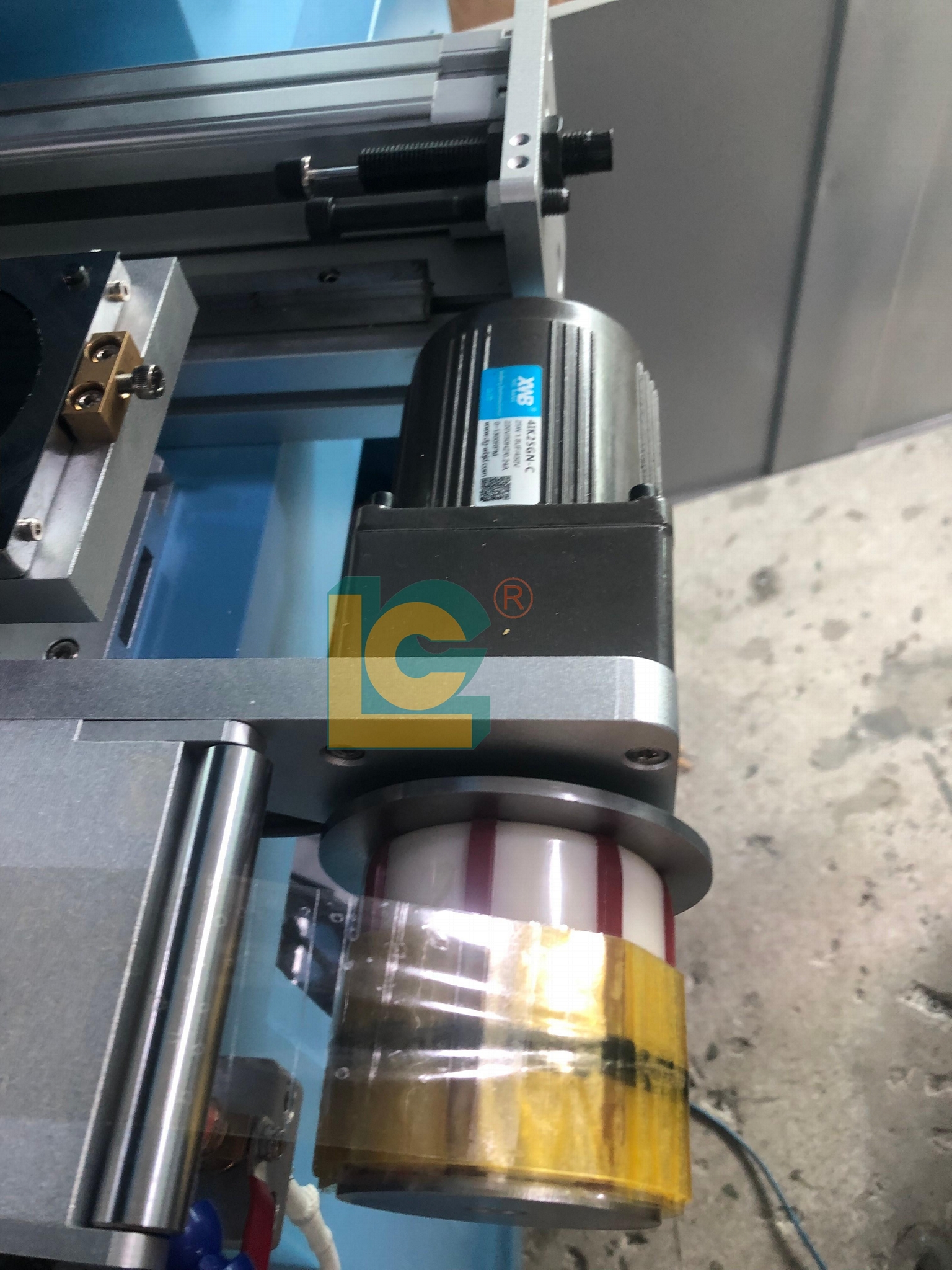

1.Jig slide moved with servo motor
2.Up/down pad head is driven with servo motor.
3.PLC touch screen
4.Auto pad cleaning function
5.With hot-air blower
6.seperate printing mode as one is standard printing mode, the other is rolling print for needle.
