Large-size Plane Screen Printer

Model No.︰

LC-1200P

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 10800 / SET

Minimum Order︰

1 SET

Share on:

Product Description

LC-1200P Plane screen printer with vacuum. This machine is high quality useful printing on PVC, paper, package bag, silicone key press, electronic procducts. Compute keypress
Advantages

It is using the electric printing, the upper and lower table operation is the Japanese motor, four slider positioning so it runs very smooth. And the left and right print head is driven by the motor, therefore printing is smooth and the printing effect is excellent.
Parameter
1.Model number--- LC-1200P
2.Product thickness---60mm
3.Max. printing area:--- 1200×800mm2
4.Max work table size---1500×1000mm2
5.Printing Speed----450P/H
6.Machine Weight---650kg
7.Pressure-----0.6Mpa
8.Machine shape---2200 ×1300×1800mm
9.Voltage power---AC380V

Package size:2300*1430*2010mm

Model number

LC-400P

LC-500P

LC-700P

LC-6090P

LC-1200P

Product thickness

60mm

60mm

60mm

60mm

60mm

Max work table siz

300×500mm

400×600mm

500×700mm

700×1000mm

1500×1000mm

Max printing area

250×400mm

350×500mm

400×600mm

600×900mm

1200×800mm

Printing speed

1500pcs/hr

1300 pcs/hr

900 pcs/hr

550 pcs/hr

450 pcs/hr

Air pressure

6bar

6bar

6bar

6bar

6bar

Voltage

AC110V/220V

AC110V/220V

AC110V/220V

AC380V

AC380V

Machine appearance(mm)

850×870×1750

960×900×1780

1080×9000×1680

1080×850×1280

2200 ×1300×1800mm

Machine weight

192kg

210kg

260kg

300kg

650kg



1.Microprocessor controls,high automation and easy operation.
2.4-digit auto counter built-in.
3.Automatic ink scraping,ink withdrawing and printing scraper lifting.
4.Printing stroke and speed is adjustable to meet different needs.
5.Automatic squeegee balance-keeping ensures equal printing pressure.
6.Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
7.High precision printing and easy adjustment.
8.With the function of vacuum sorption in





Price Terms︰ EXW,dongguan ,china
Packing︰ WOODEN CASE
Lead Time︰ 7 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ PVC , paper package bag,silicone key press,
Gross Weight︰ 440KG
Main Parts︰ FESTO CYLIDER
Free Fittings ︰ SILK SCREEN FRAME ,SCREEN SQUEEGE

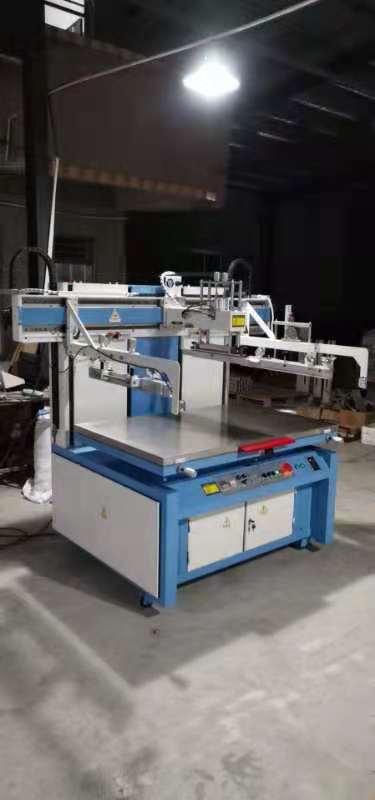

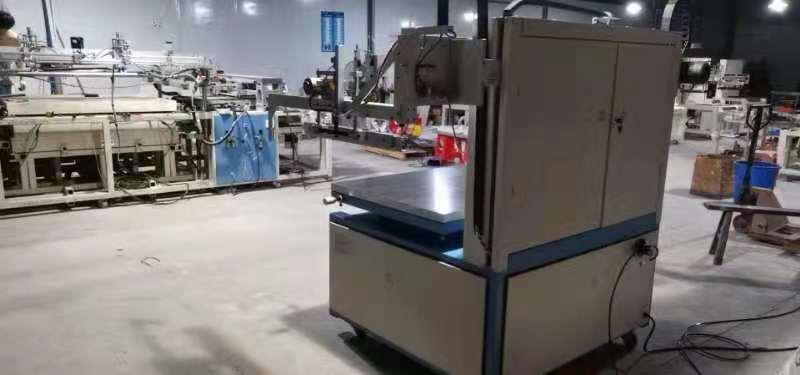

Product Image
