Small Table--style UV Cured Machine

Model No.︰

TM-200UVF

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

Our last new Desktop style  UV Curing Model is TM-200UVF. It is small volume and easy carrying,widely  use for  of field of drying  printing UV ink ,UV paper printing ,UV glue ,UV tunnel drying ,UV PRINTEER,UV Packing , UV testing .favorable price and high quality .

1.Manipulation of the equipement is simple。

2.The product is developed as low output/low price。

3.Can select from separation type and conveyor type。

4.There is little space limitation since the size ia small。

Tech  Parameter:
1.  Model  NO. TM-200UVF
2.  max product width: 200mm
3.   max product length:800mm
4.  UV Process shine area:200×800mm
5.  conveyer speed: 0-12m/min
6.  UV Lamp power:3KW *2 PCS/
7.  conveyer belt size:800*200 (L*W)
8.  UV light power supply: 220V/50 HZ

9.UV Machine  Dimension: 810×430×850mm(L×W×H)

10.Net Weight:110kg

Small Table--style UV Curing Machine

Model number

TM-200UVF

TM-300UVF

TM-400UVF

style

Desktop

Desktop

Desktop

max product width

200mm

300mm

400mm

max product length

1000mm

1200mm

1200mm

UV Process shine area

200×1000mm

300×1200mm

400×1200mm

 conveyer speed:

0-10m/min

0-10m/min

0-10m/min

UV Lamp power

3KW ×2PCS/

3KW ×2 PCS/

3KW ×2 PCS/

conveyer belt size

200×1000mm

300×1200mm

400×1200mm

UV Machine  Dimension:

1100×220×750mm

1300×320×750mm

1300×420×750mm

Net Weight

110kg

130kg

165kg




Free Fitting :
one pcs UV lsmp  (3000W)

Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----5days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 0.85
Gross Weight ---65KG



Price Terms︰ FOB CHINA
Packing︰ PLYWOOD CASE
Lead Time︰ 7 DAYS AFTER PAYMENT
Application area︰ UV PRINTING ,UV lamps, UV Packing,UV glue,
Gross Weight︰ 180kg
Free Fittings ︰ UV lamp & tooling

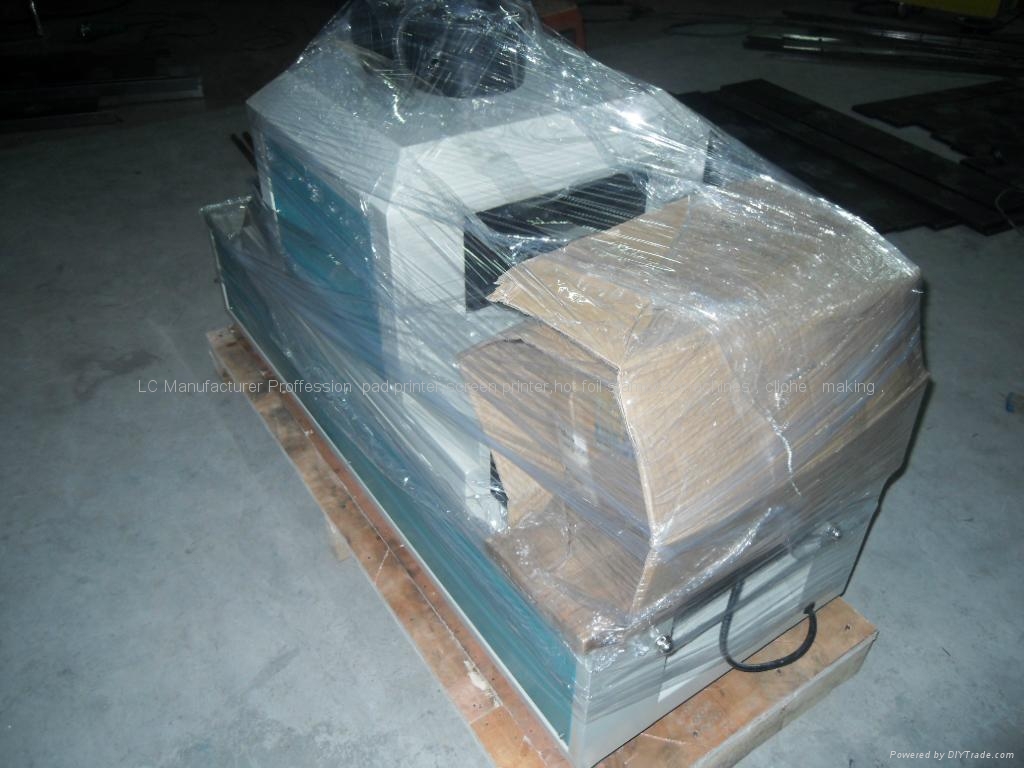

Product Image
