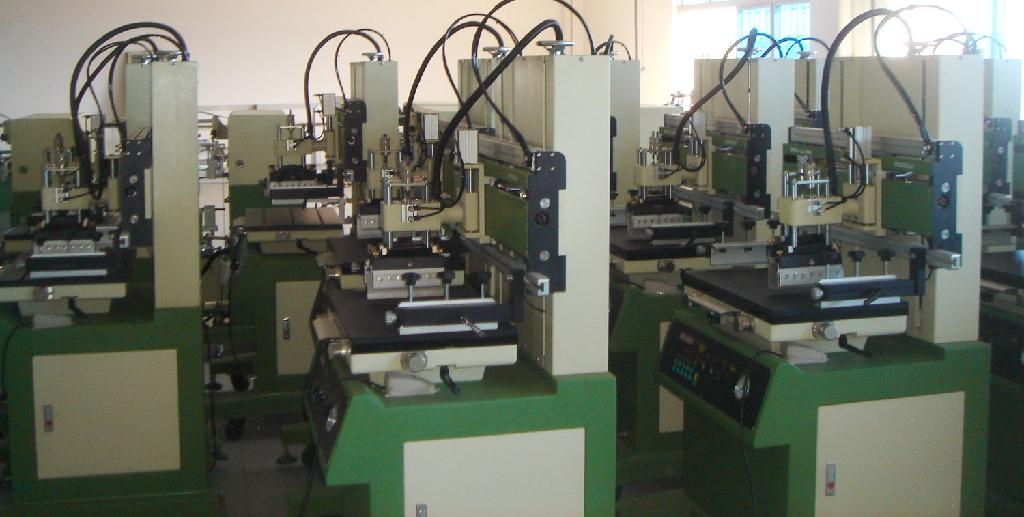

Plane Glass Surface Screen Printer

LC-6090P Plane screen printer with vacuum. This machine is high quality useful printing on PVC, paper, package bag, silicone key press, electronic procducts. Compute keypress
Advantages
1.   Microprocessor controls,high automation and easy operation.
2.4-digit auto counter built-in.
3.Automatic ink scraping,ink withdrawing and printing scraper lifting.
4.Printing stroke and speed is adjustable to meet different needs.
5.Automatic squeegee balance-keeping ensures equal printing pressure.
6.Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
7.High precision printing and easy adjustment.
8.With the function of vacuum sorption in

Parameter：
1.     Model number--- LC-6090P
2.       Product thickness---200mm
3.       Max. printing area:--- 600×900mm²
4.       Max work table size---700×1100mm²
5.       printing Speed----1000P/H
6.       Machine Weight---300kg
7.       pressure-----0.5Mpa
8.       Machine shape--- 880×850×1280mm³
9.       Voltage power---220V/60HZ   110V/50H
