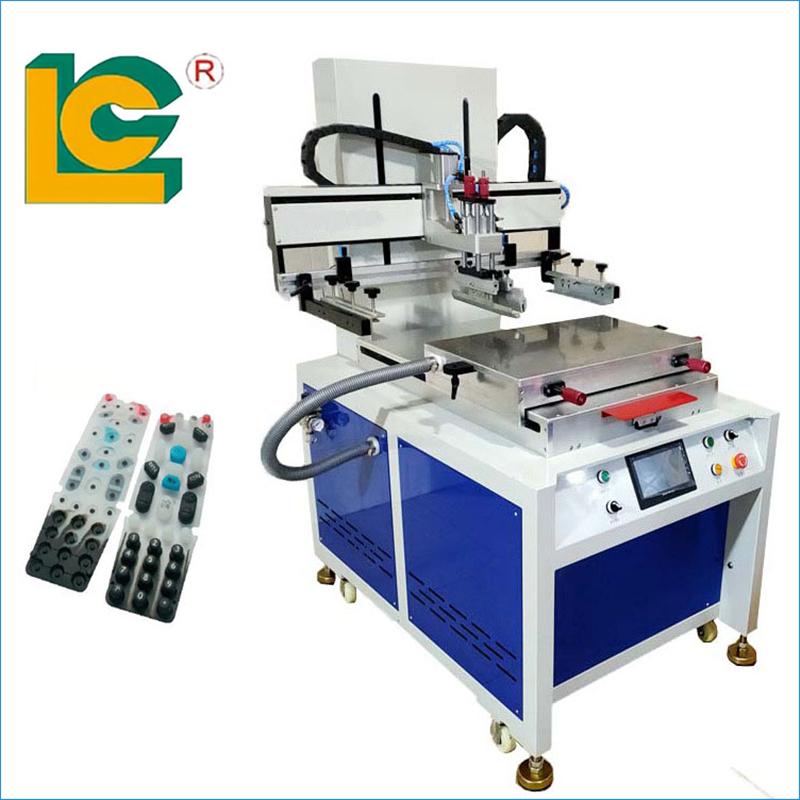

Servo Flat precision screen printing machine with movement vacuum table

Model No.︰

LC-4060SP

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 4530 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Structure:

Working table   Vacuum working table Size: 400*600mm
Actions Up-down of screen plate
To be printed Plain objects
Squeegee stroke  Adjust the Limited switch
Squeegee and screen plate control  High precision linear guideway

Usage and characters:

Guide

· Install movement table ensure operation more safety;

· Fit printing soft and thin products such as paper, plastics film etc;

·  With vacuum working table ensure adsorbing object when printing;

· Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;

· Also widely used in Glass plate, Machine panel screen printing;
With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;

·  Suitable for printing sheet-fed adhesiving sticker;

· Suitable for printing water transfer label and heat transfer label through diffrent process;

· High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Application

· Widely used in Glass printing field;

· With UV curing machine, Can finish many UV special printing process for UV package industry.

· Suitable for printing Mobile windows ;

· Suitable for printing water transfer label and heat transfer label through diffrent process;

· The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

Function

· Working table can be in-out automatically, operation more safe;

· High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;

· Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;

· Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

· Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

· Screen forme Clamping device free to adjust to fit different sizes of screen;

· Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

· Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

· Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

· Microcomputer program control operations;

· 4-Digit auto counter; to facilitate the measurement of production efficiency.

· Full servo system and operation more simple and high accurate.

Parameters:

  • Max printing thickness: 150 mm;
  • Air consumption: 80Litre/Min;
  • Dimension of working table: 500*700mm;
  • Max printing areas: 400*600mm;
  • Max printing speed: 1000Pcs/H;
  • Max frame dimension: 600*950mm;
  • Compress air: 5-7 bar;
  • Stroke of cylinder up and down:160mm;
  • Stroke of Squeegee: 600mm;
  • Table Precision: 0.05mm;
  • Rang adjustment of table: 10mm.
  • Power supply: 220V;
  • Compress air: 5-7Bar;
  •  Package size: 1280*1030*1590mm
  •  Gross weight: 370kg;





Price Terms︰ FOB Shenzhen
Packing︰ Wooden case
Lead Time︰ 7 Days After Payment
Standards Certificate︰ CE
Gross Weight︰ 370kg
H.S.code︰︰ 8443192190

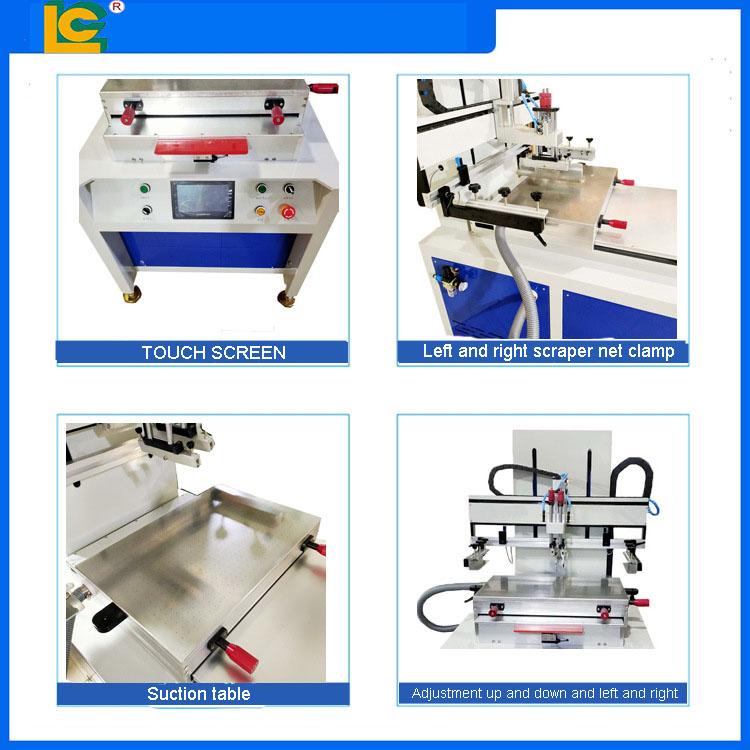

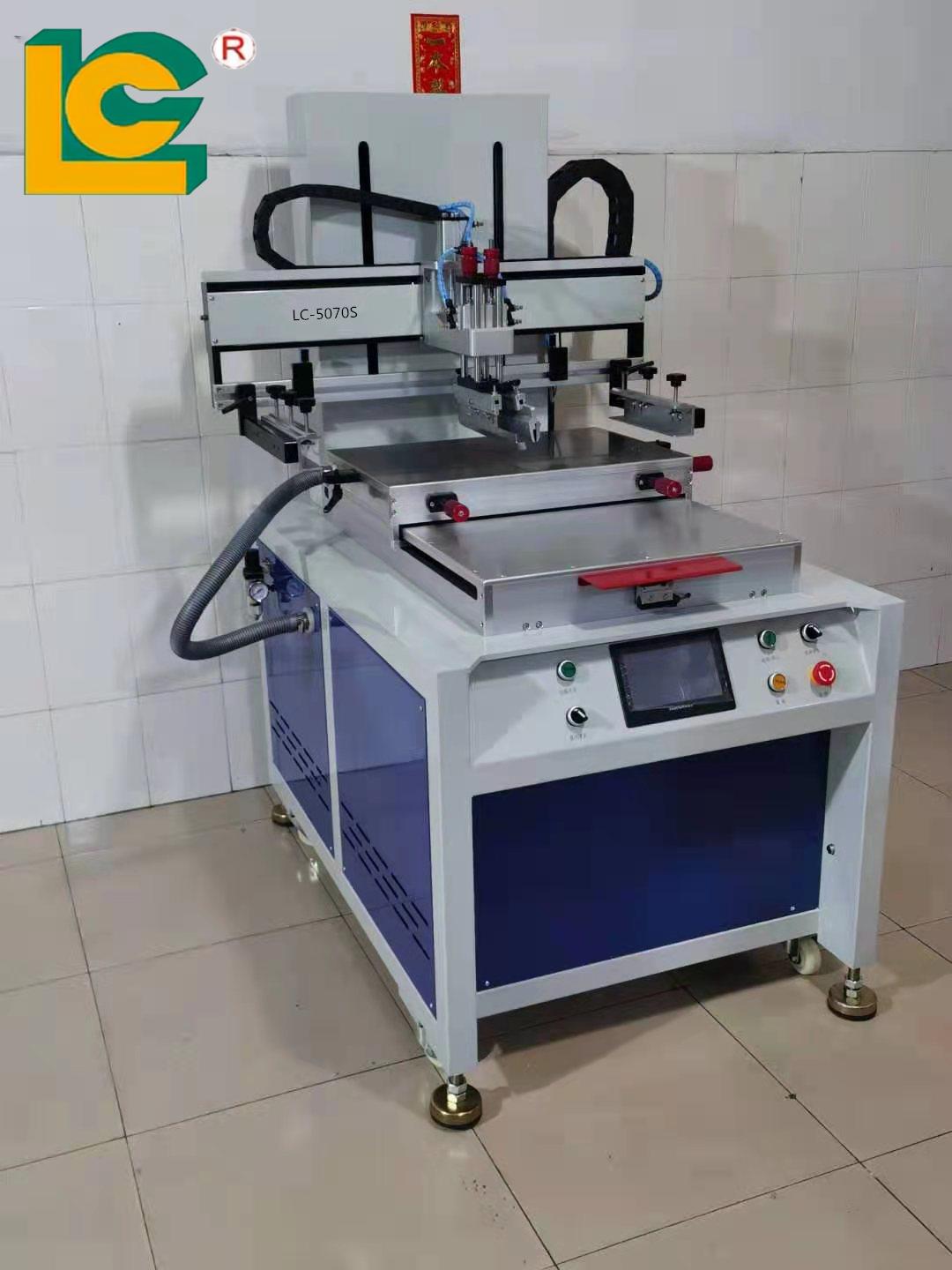

Product Image
