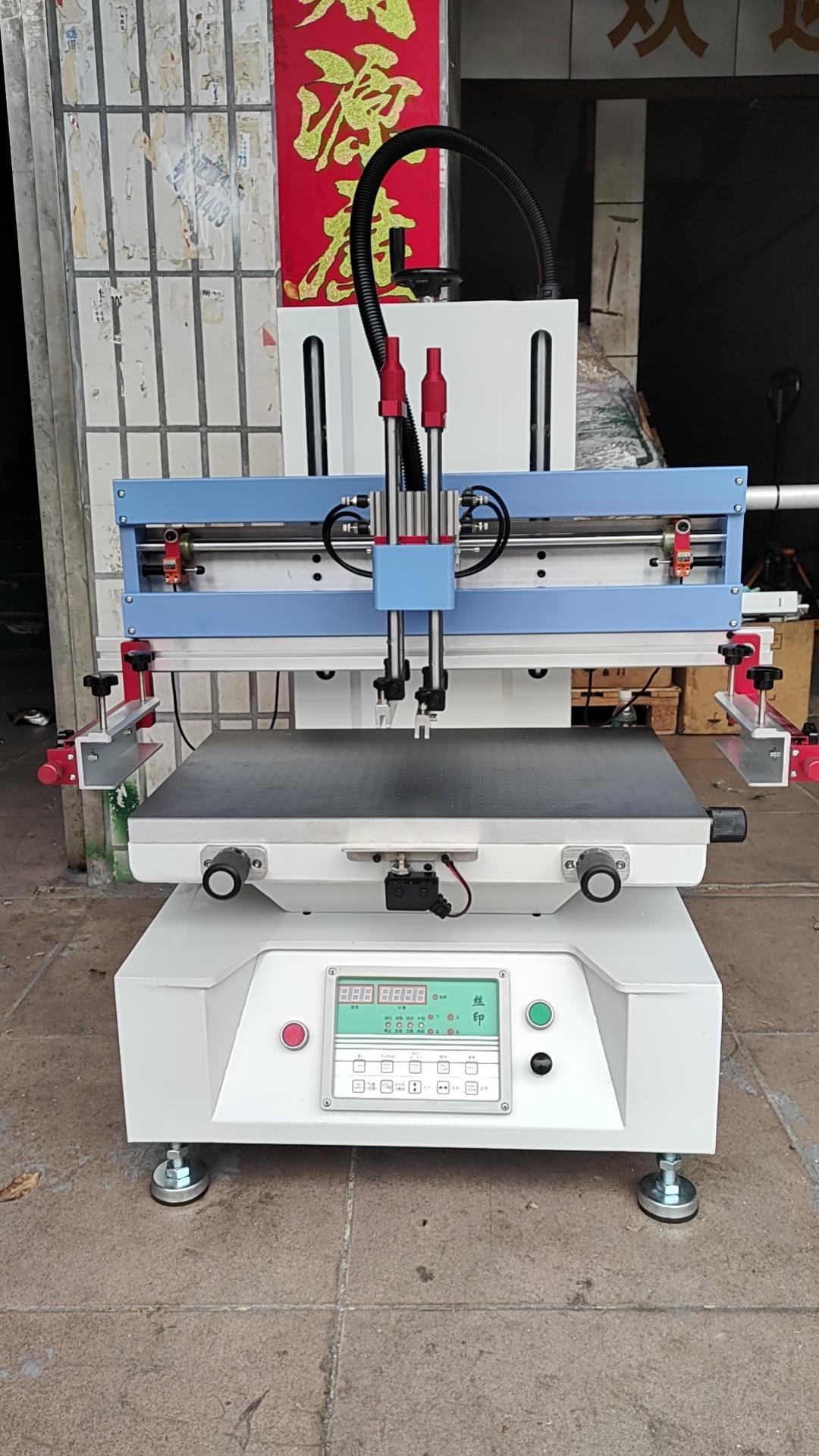

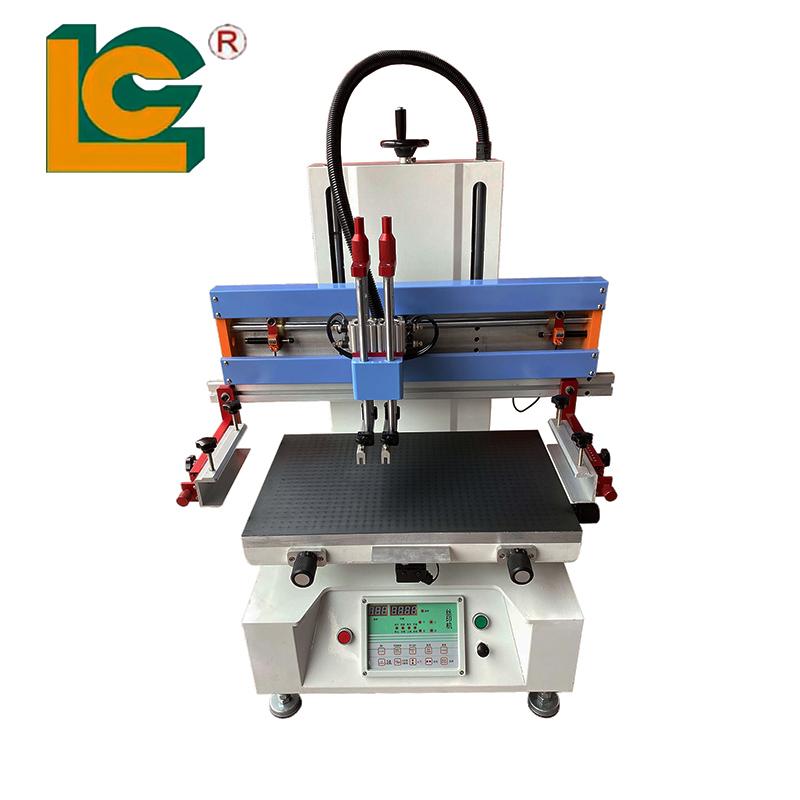

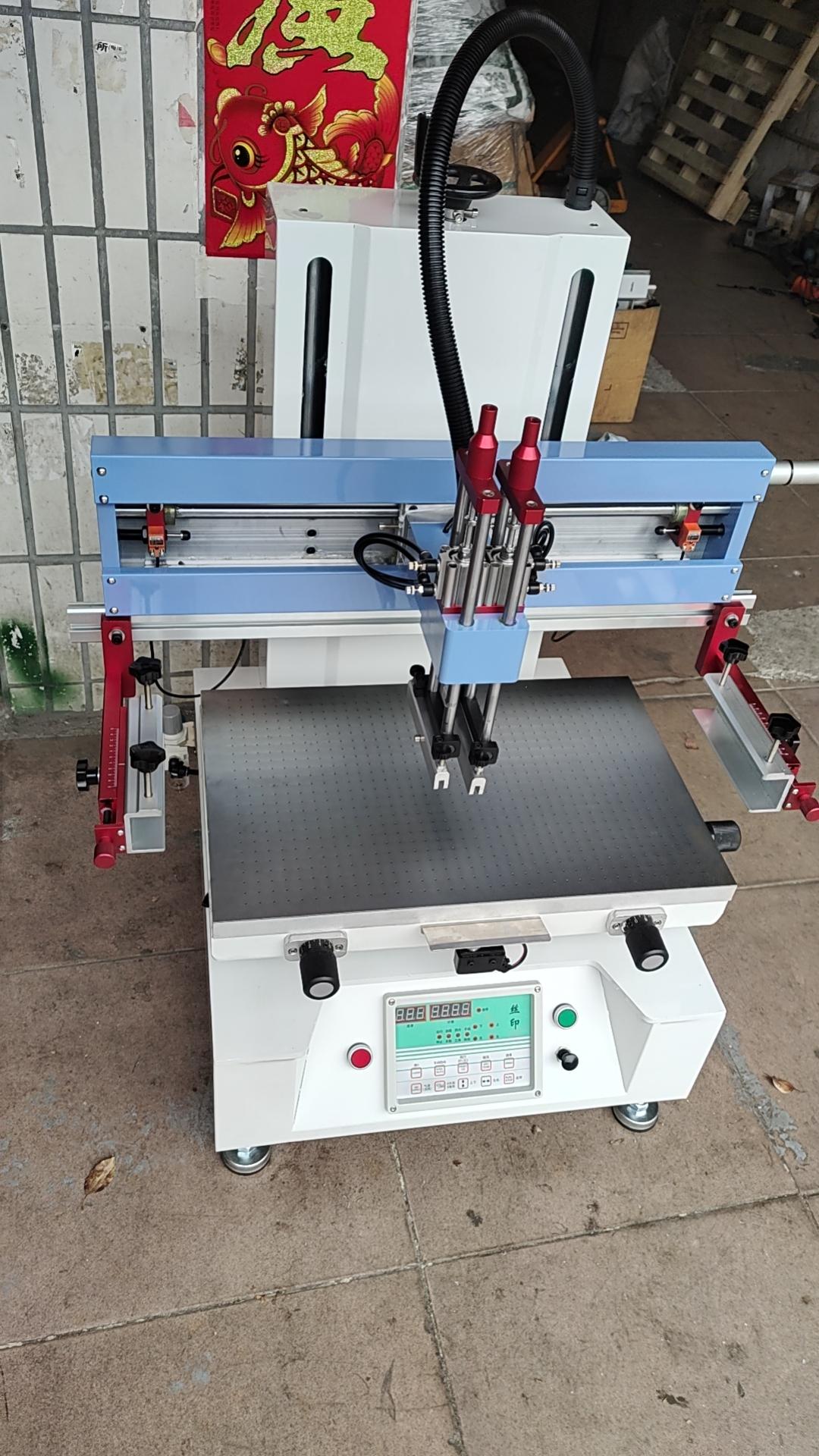

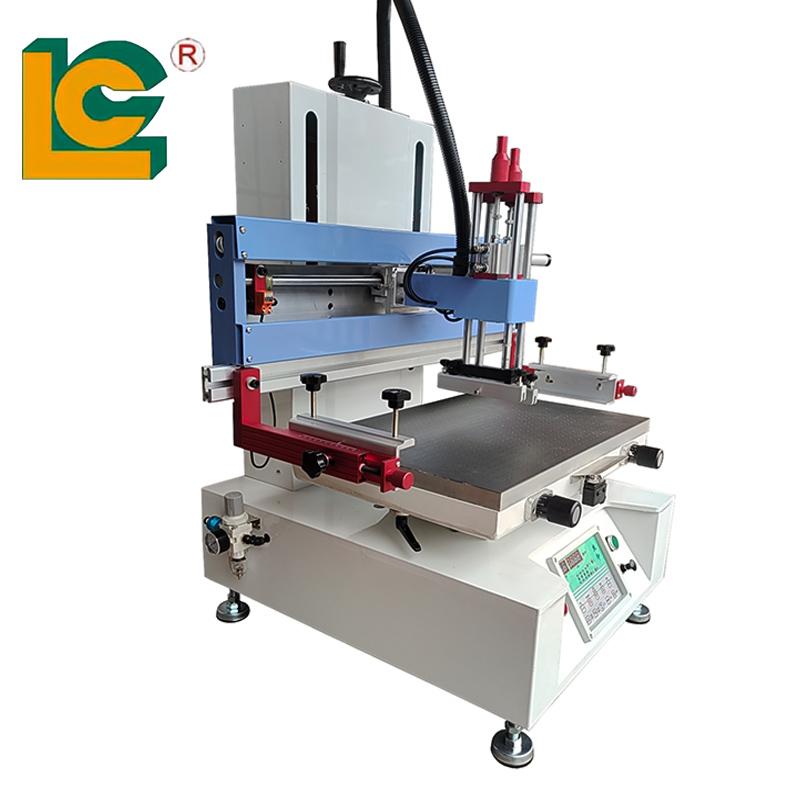

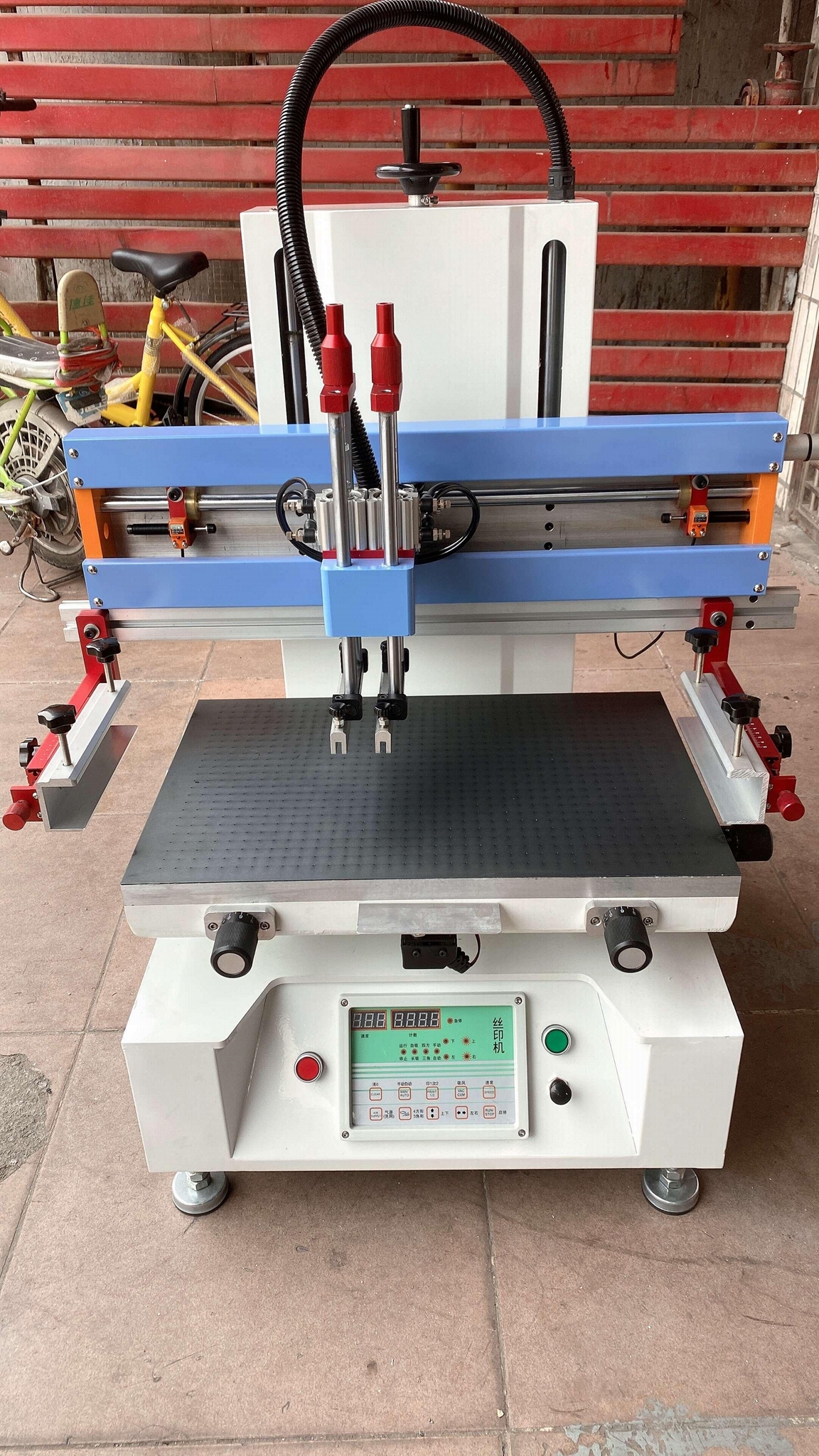

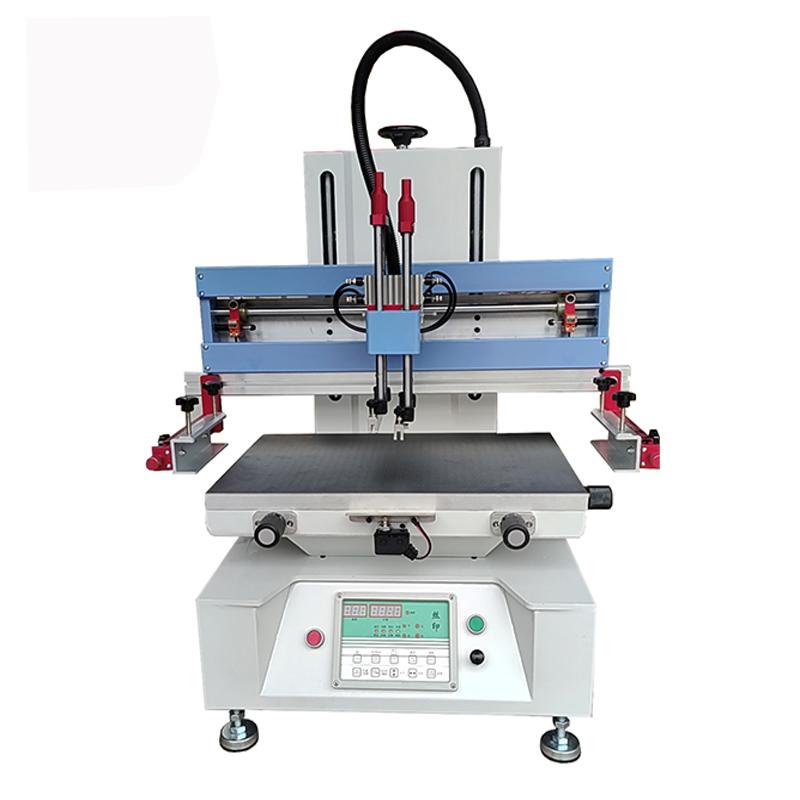

Desktop Flat Screen Printing Machine

Model No.︰

LC-4060

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

Suitable for printing on various materials such as wood, plastic, metal, glass, leather, cosmetics, gifts, or ceramic etc.Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc...

Printing objects such as decal, cards, transfer paper, pester, sticker, PVC/PET/PC films, metal nameplate etc which are made of non-deforming materials

Feature:
1. Advanced computerized system control
2. Built-in LED digital counter
3. Light-weight, strong aluminum cast machine frame
5. Can be operated in manual and semi-auto mode to suit different worker's skill level.
6. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
7. The depth, pressure, speed, levelness and stroke of the scraper/water injection rod can be adjusted to suit your various printing needs.

Specifications:
1. Thickness of printing matter: 0~60mm
2. Size of printing table: 400*600mm
3. Max printing area: 350*550mm
4. Max Stroke of up-and-down frame: 125mm
5. Max. printing speed: 2000pcs/hour
6.Air pressure: 5-7 Bar
Power voltage:  220V    50Hz
Power consumption: 65 W
Machine dimension: 950*700*1070mm



Price Terms︰ FOB ShenZhen, China
Packing︰ WOODEN CASE
Lead Time︰ 7 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Application area︰ decal, cards, transfer paper, pester, sticker, PVC/PET/PC films
Main Parts︰ FESTO CYLINDER MADE BY GERMANY
Free Fittings ︰ SCREEN Frame

Product Image
