Flatbed Screen Printing Machine with rotary system for plastic box

Model No.︰

LC-600PR

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 set

Share on:

Product Description

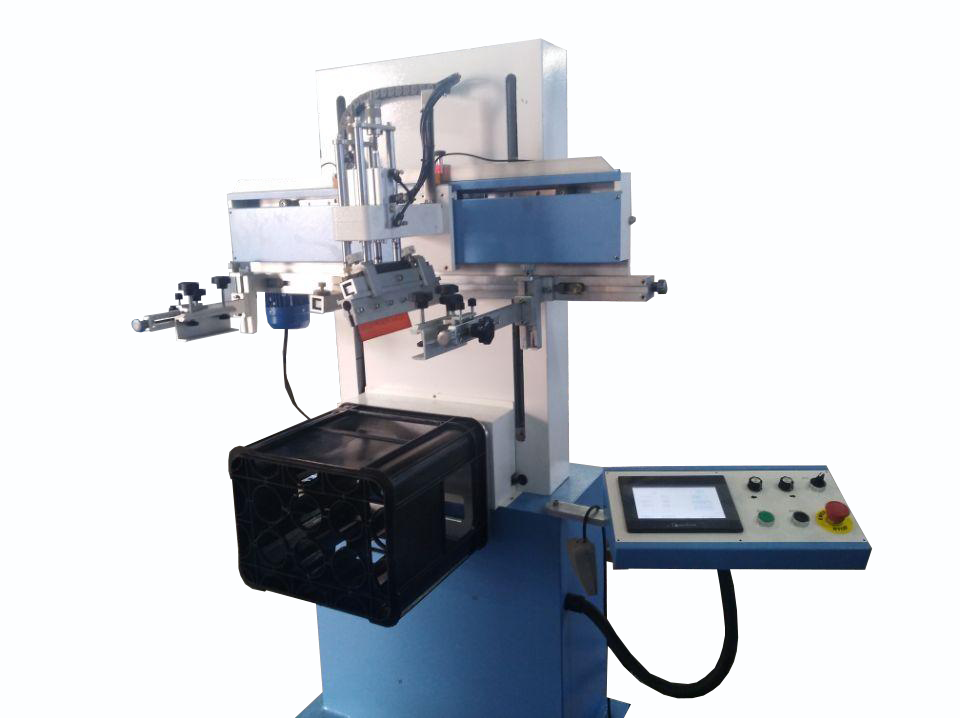

PLC Flatbed screen printing machine with rotary system

This machine suit for print plastic box, can be automatic turn to other side of the box

Applications:

Suitable for precision planar printing metal, glass, ceramic, plastic, wood, leather and other materials products. Widely used in: electronics, advertising, packaging, printing, sports equipment, toys, stationery, gifts and other industries. Products such as PCB, LCD, EL, IC, SMT and so on. Meanwhile, the model is also suitable for other precision printing, stickers, ceramic flower paper, membrane switch (button), posters, automotive glass, instrumentation, building plaques, nameplates, billboards and other signs.
Feature:

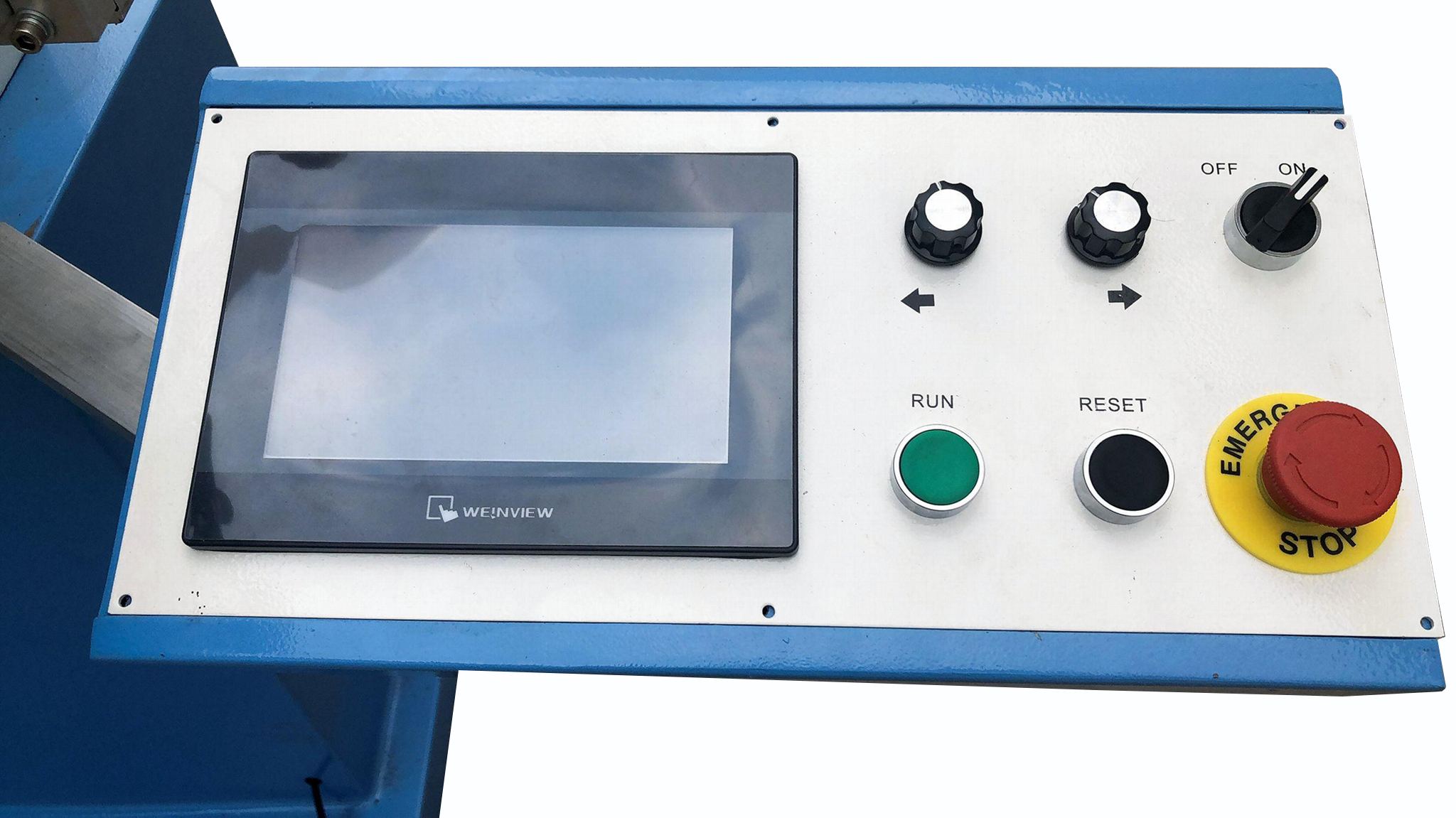

1, The machine with PLC and the touch screen panel control, easy to operate, accurate and reliable.
2, printing stroke and speed are adjustable to meet different printing requirements
3, India scraping, back to Mexico independent power and precision fine-tuning device with a separate stroke and speed.
4, the table can be independently adjusted horizontal and vertical direction and angle of rotation, optional suction table or T-slot table tops.
5, the frame size ages, installation position of the free space, automatic off-grid.
6, lift long stroke design for easy handling of the workpiece.
7, using the German FESTO pneumatic components.
8, the machine runs fast, stable, low noise.
Technical Parameters:
Operation mode selection: automatic / semi-automatic
Start: Toou screen Panel / foot switch
Squeegee pressure control: constant pressure regulator
Max.substrate height: 600mm
Working table size: 500 × 700mm
Maximum printing area: 450 × 600mm
Lifting stroke: 200mm
About travel: 700mm
The fastest speed: 1000pcs / hour
Positioning accuracy <0.04mm
Pressure Requirements: 6 Bar
Power :: 110V / 220V 50Hz
Machine size: 1080 × 900 × 1680mm
Weight: 260 Kg



Price Terms︰ EXW,dongguan ,china
Packing︰ wooden case packing
Lead Time︰ 15 days after comfirm payment
Standards Certificate︰ CE
Application area︰ PVC film, paper, metals, plastic rulers, flat products
Gross Weight︰ 175 kg
Main Parts︰ screen frames
Free Fittings ︰ screen frames and squeege
H.S.code︰︰ 84439000

Product Image
