SD16000 Infrared Ray Drying Mahcine

Model No.︰

SD16000

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 15870 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Infrared ray Tunnel Conveyor dryer LC-SD16000

Description

Conveyor parameter :
1)Temperature range: Normal~200º C
2) Enterrance length:1.9M .
3)Exit length: 0.8M.
4)Drying box area: 12M length .
5)Conveyor total length: 16M.
6)Conveyor width: 1M.
7)Belt material: 2*2.5mesh glass fiber Teflon
8)Enter high: 120mm.
9)Leg high:375mm
10)Working Power Supply: AC 380V 50HZ
11)Belt speed adjustment: 0-30M/MIN
12) Cooling System with Ten fans.

13)Insulation cotton for Heat area BOX

14)Galvanized iron bracket: 2pcs

Remark message

1.Price Term:EXW DongGuan

2.Payment Term: 30% T/T as deposit,70% before delivery.

3.Delivery Time: 28 working days after confirming T/T payment.

4.Package: Plywood case.



Price Terms︰ EXW DongGuan
Packing︰ wooden case
Lead Time︰ 28 working days after confirming T/T payment.
Standards Certificate︰ CE
H.S.code︰︰ 9403208090

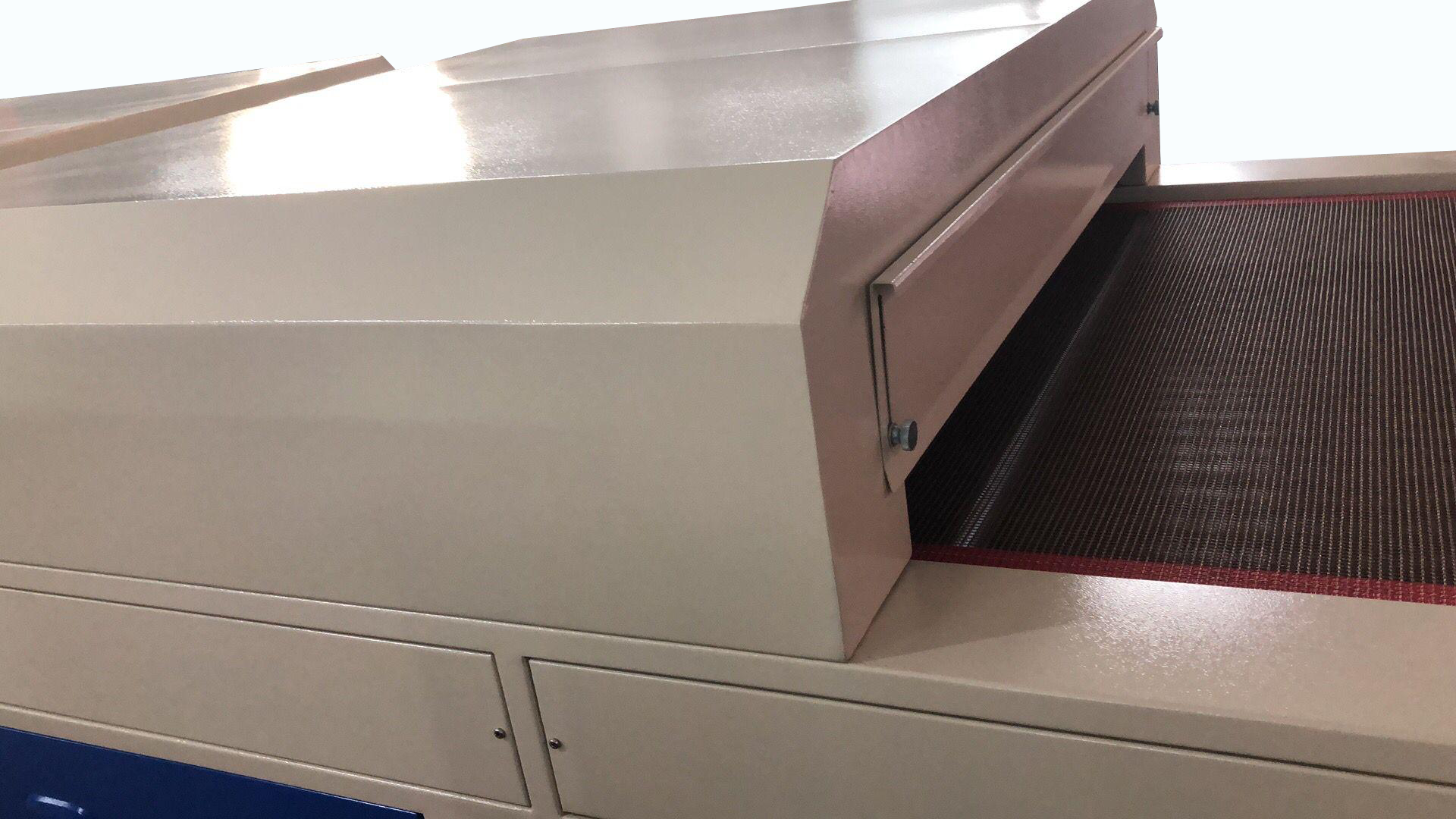

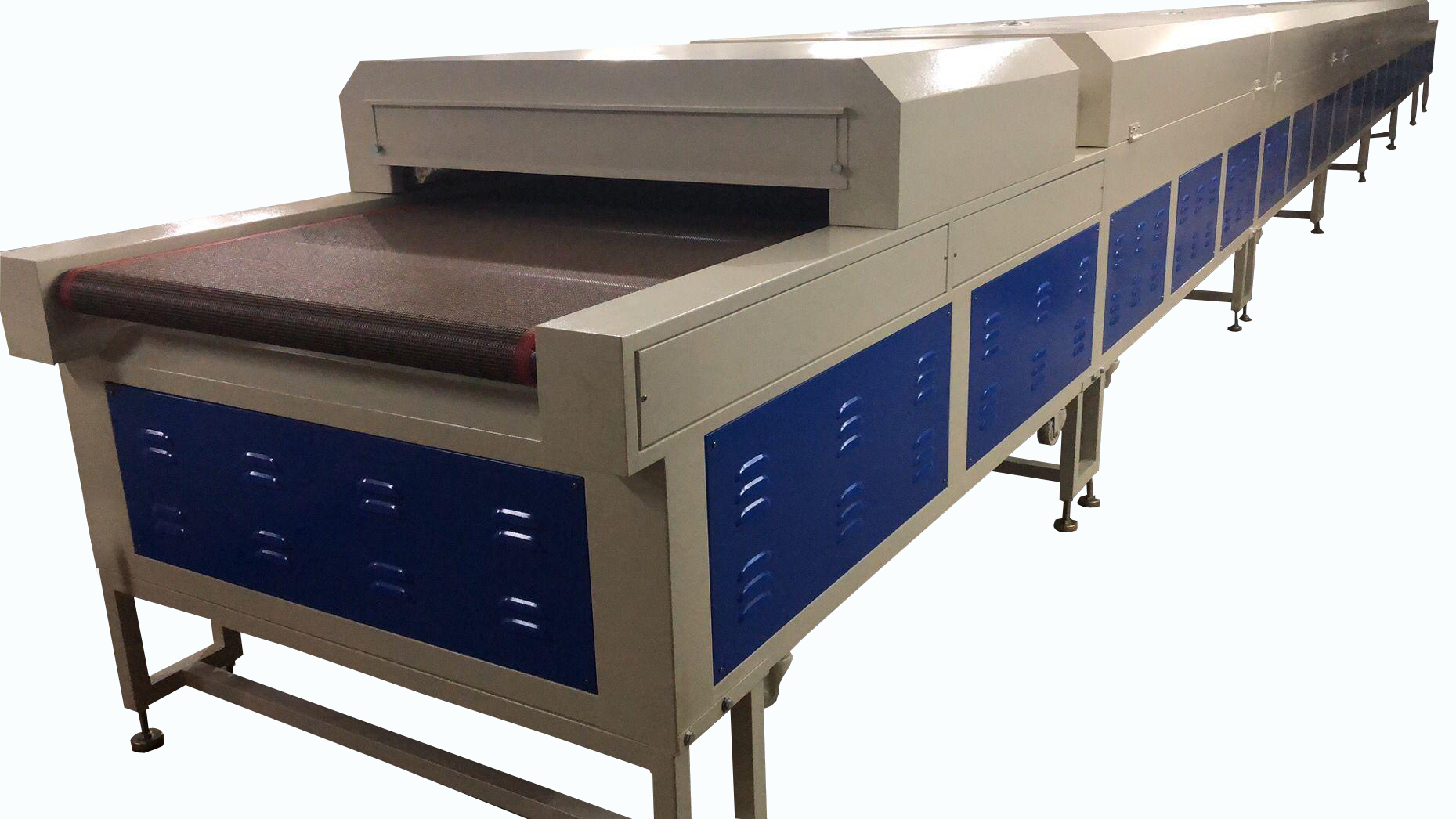

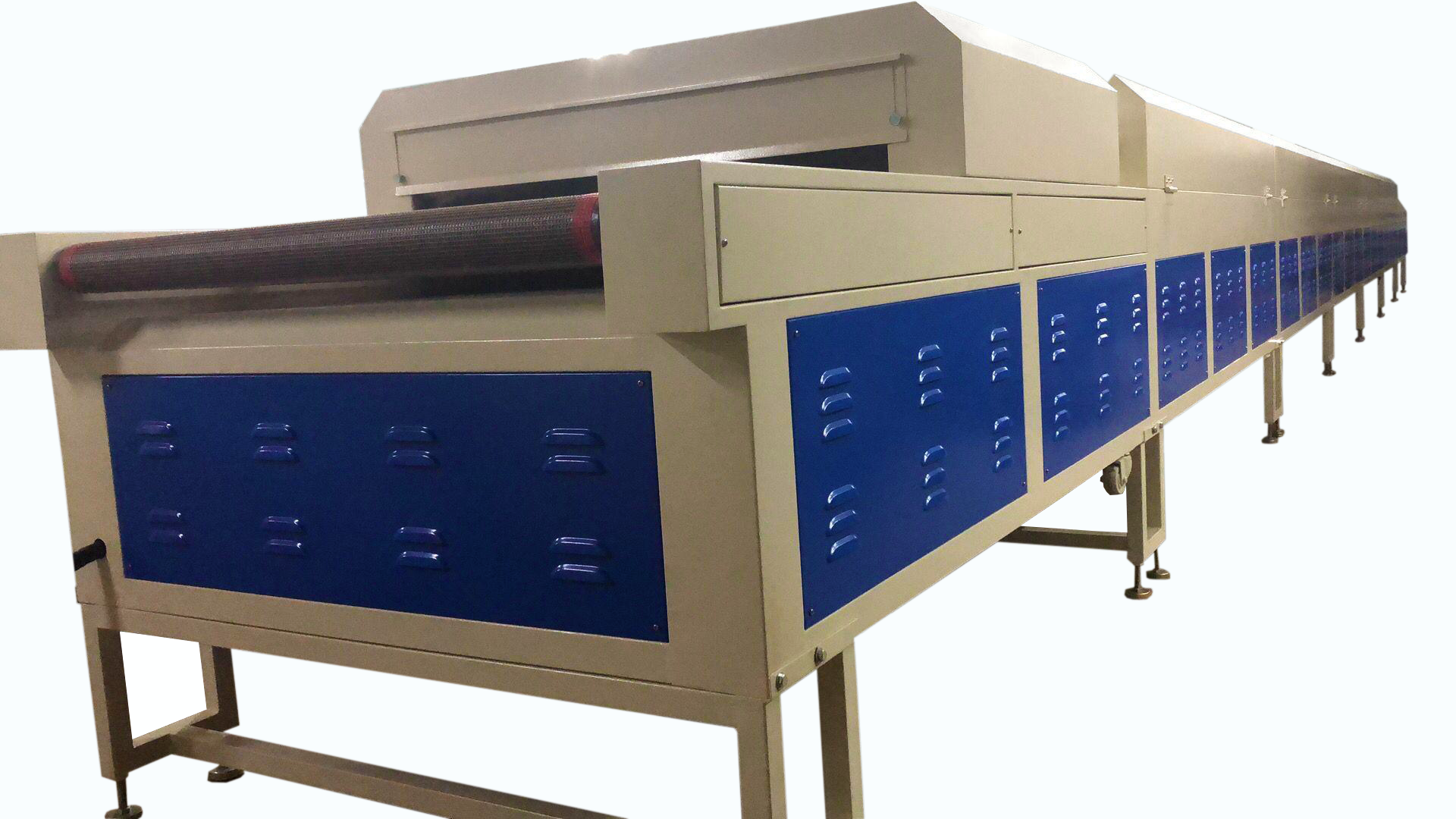

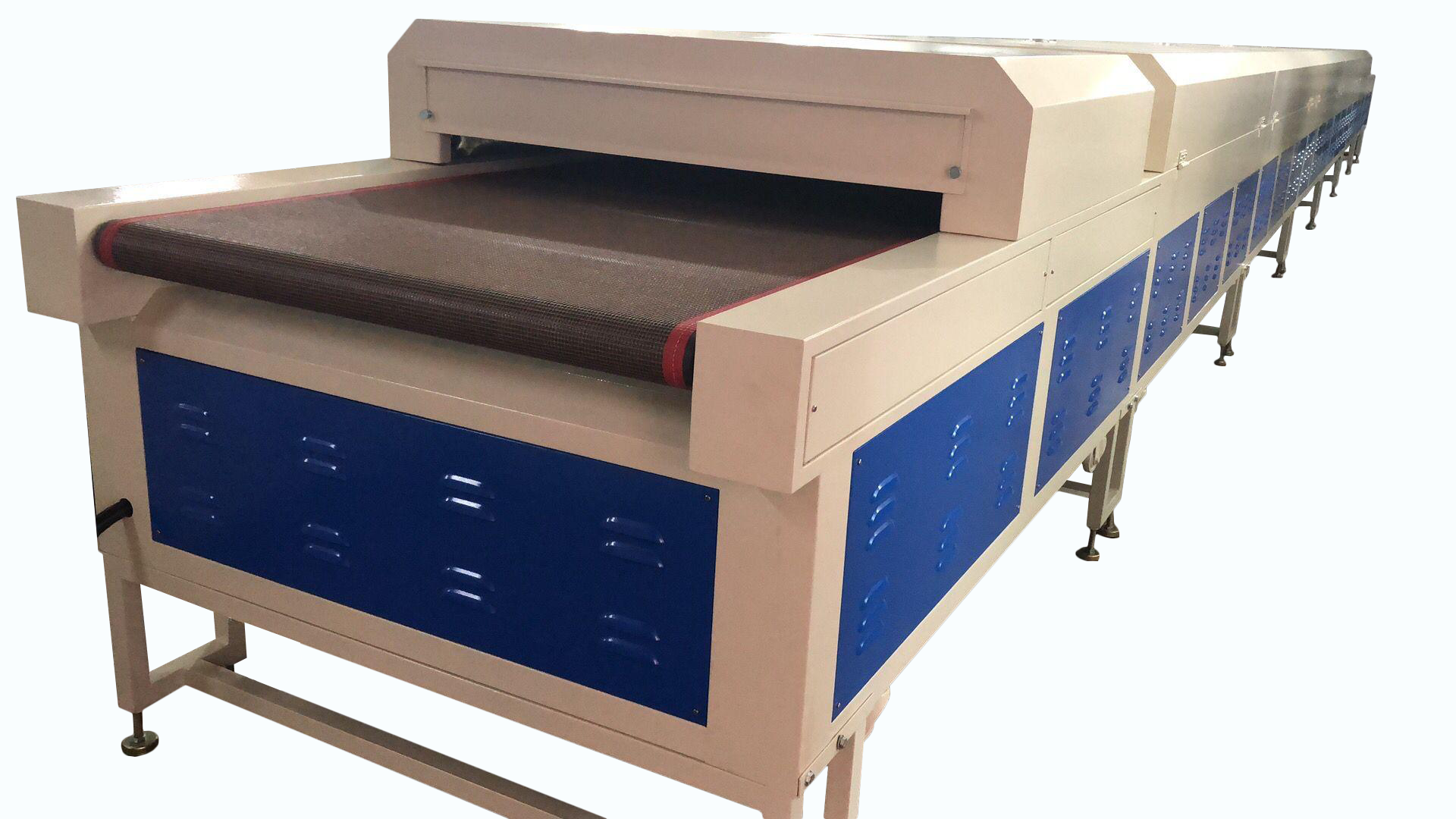

Product Image
