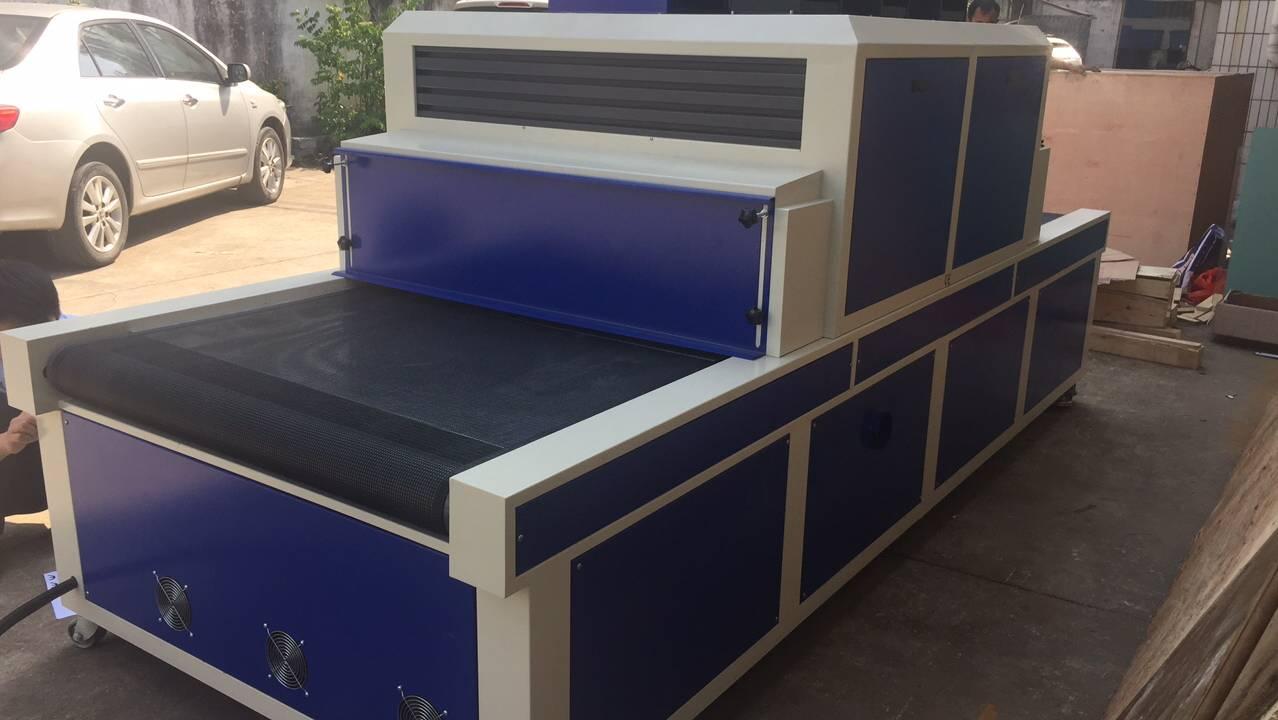

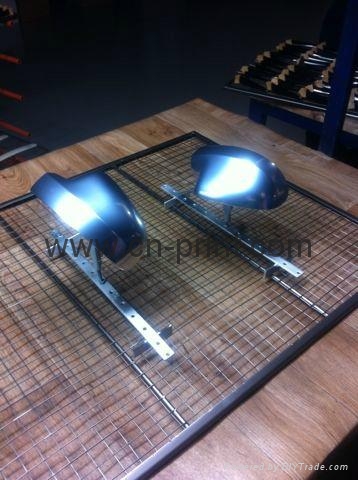

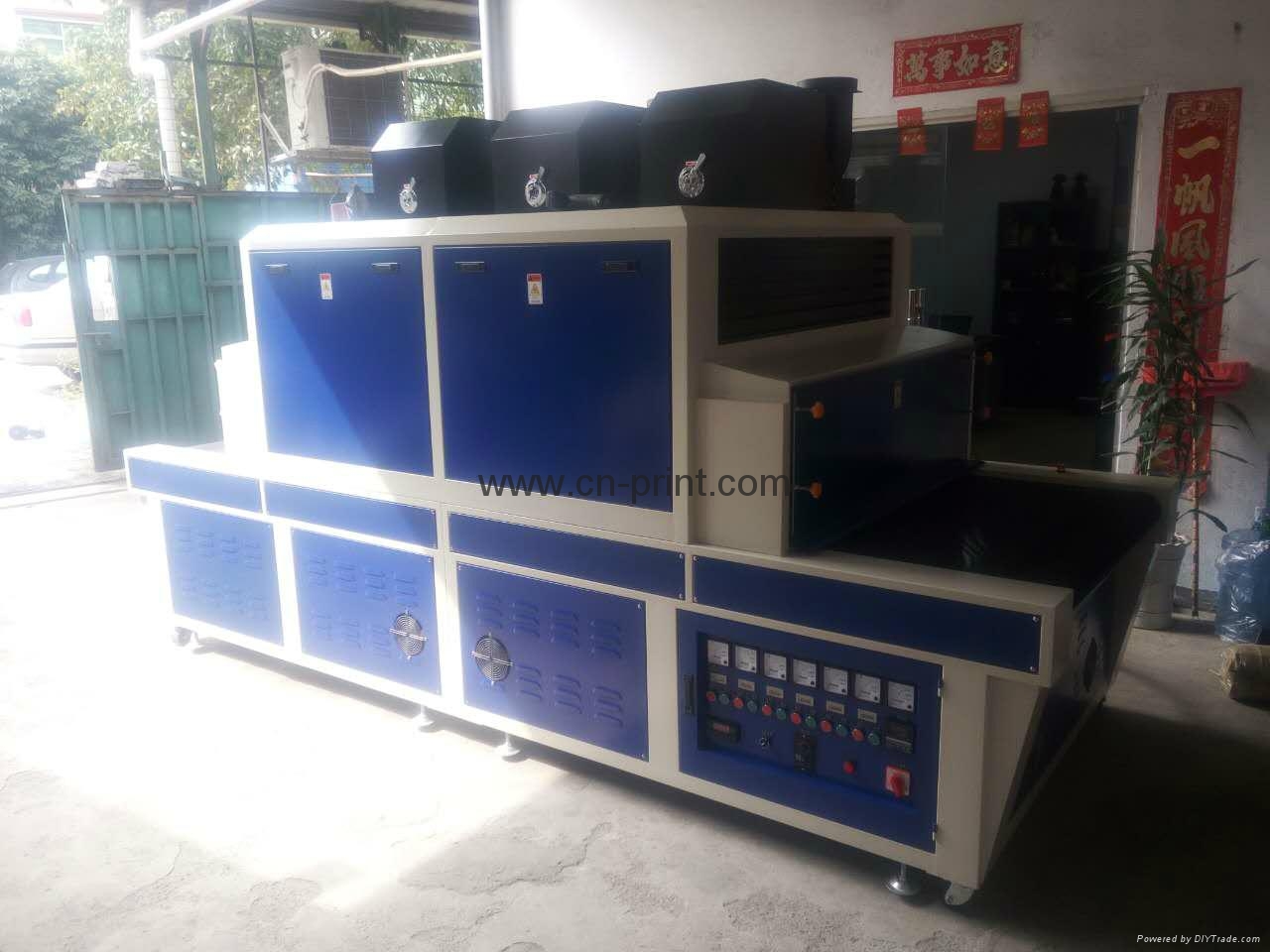

6sets UV Lamp systems UV drying machine for spare parts is specially used for drying auto parts UV paint TM-1100UVF-6 this machine is including 6 sets UV lamps UV drying machine. Each UV lamp system can be used seperately according to different shape products. The UV lamp angle is adjustable.
Model NO. TM-1100UVF-6 with 6 UV lamps,
1. UV lamp qty to be shipped with the machine: 6pcs UV lamps
2. Conveyor width: 1100mm
3. max working part length: 1800mm
4. Max Products height: 300mm
5. conveyer speed: 0-10m/min
6.UV Lamp power：4PCS*8KW/380V 2pcs 5.6KW
7. top part of conveyer belt size：3300*1100
8 UV light power supply: 380V/50 HZ
9. UV Machine Dimension: （L*W*H) 3400*1200*2140 mm
10.Wind fan wattage: 500W/380V *2pcs
11.Motor wattage:1000W/3P/380V
12. .Speed change ways: Continue
