Automatic 3-colour cylinder UV Screen Printing machine

Model No.︰

LC-120AL-3

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 SET

Share on:

Product Description

https://www.youtube.com/watch?v=17J70H8SD7g

Function:
  1, This screen printing mahine combine one master printer and several subidiary printers to multicolor Production line.
  2, Designed for round and oval-shaped screen printing on circular and elipse containers. Simple and reasonable structure, convenient and speed adjustment and stable operation.
  3, The machine intergrates automatic feeding device, surface flame treatment, automatic pre-alignment, automatic screen printing and UV  curing (ultraviolet curing) and other features.
  4, Automatic screen printing machine combines mechanical conveyor and LCD display.The maximun printing speed is 4500pcs per hour.
  5, This printing system is equipped with various warning devies such as low pressure and overloading. The sensor can detect"n product, no printing"
  6, the whole automatic machine electrical components and control systems used in Germany and Japan components, ensure that the machine is stable.
  7, We provide screen printing machine and pad printing machine design and constrction services for special applica-tion.

LC-120AL-1 automatic screen printer main part brand

1. MAIN MOTOR: SITI(Italy)
2. PLC:  Omron(Japan)
3. SENSOR: Optex(Japan)
4. TOUCH SCREEN: Proface(Japan)
5. Switch: Schneider(France)
6. CONTACTOR:(Schneider)(France)
7.RELAY: Idec(Japan)
8. INVERTER: Omron(Japan)
9. UV CURING (Primarc)Britain
10. Cylinder:Festo(Germany)

​Parameter   LC-120AL-N Automatic screen printing machine
Printing Product Shape Eliptical Cylindrical
Max printing length 120mm 270mm
Max printing width 250mm 250mm
Object application dimension 25mm<R<260mm 25mm<D<100mm
60mm<L<270mm 60mm<L<270mm
Max running speed 4500pcs/Hr 4000pcs/Hr
UV lamp power 4KW/pcs
Air supply 6Bar
  Master&Subsidiary Printer Auto-feeding system(optional) Auto-unload platform(optional)
Power Supply AC380V 3Phase
45A/(1-3)pas 100A/(4-5)pas
AC220V 2Phase
0.4KVA
AC220V 2Phase
90KVA
Machine Diension Master:1900*1200*1600mm
Subsidiary:2600*1200*1600mm>
2850*1300*1500mm 2130*530*800mm
Machine Weight Master:1000kg
Subsidiary:800kg
480kg 150kg


Price Terms︰ EXW,DONGGUAN ,CHINA
Packing︰ WOODEN CRATE
Lead Time︰ 30 DAYS AFTER DEPOSIT
Standards Certificate︰ CE
Application area︰ lipstic, bottles,
Main Parts︰ 1. MAIN MOTOR: SITI(Italy)
Free Fittings ︰ Fixture, silk screen plate.

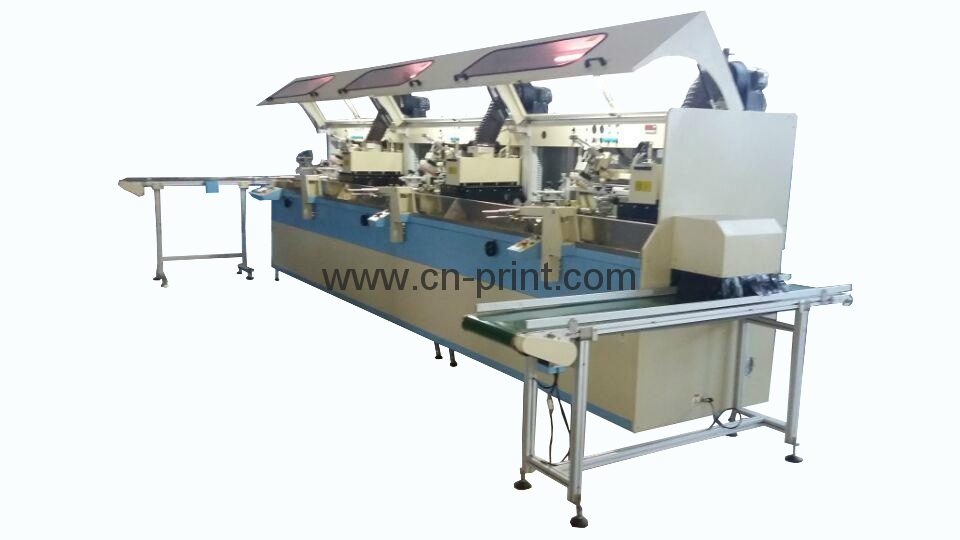

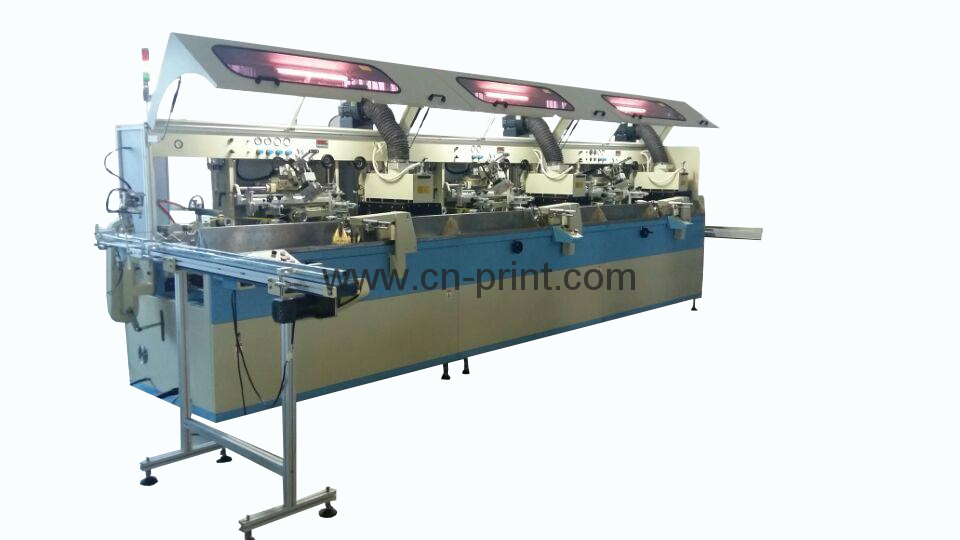

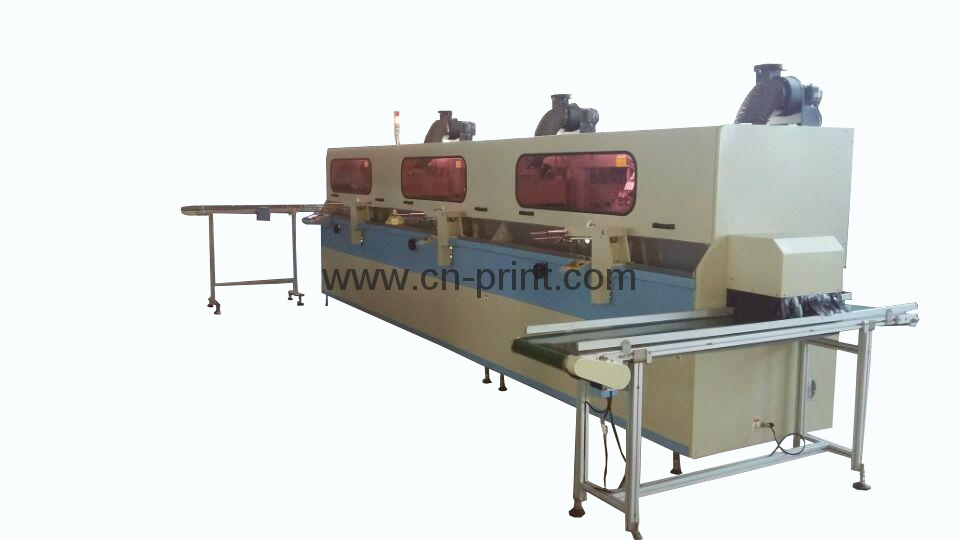

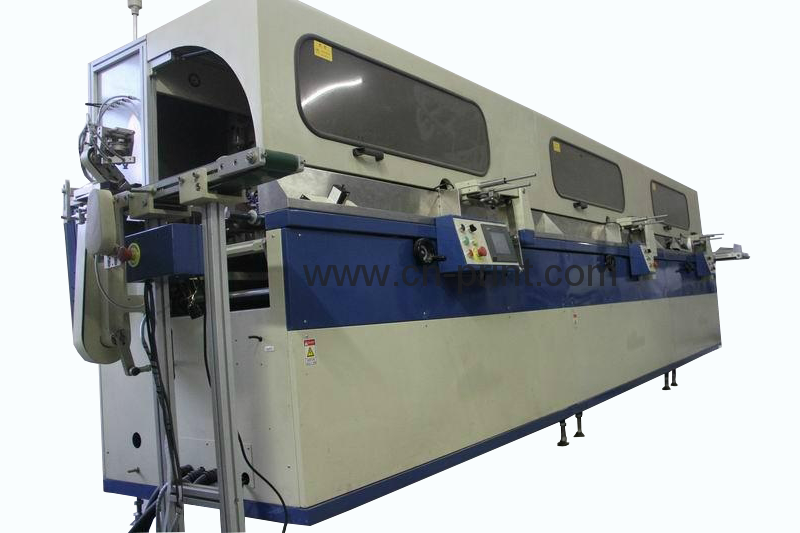

Product Image
