IR Hot Drying Tunnel

Model No.︰

SD-5000W

Brand Name︰

LC

Country of Origin︰

China

Unit Price︰

US $ 5500 / SET

Minimum Order︰

1 SET

Share on:

Product Description

Description:

IR Drying tunnel  for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This  tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.

 Features:

1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.

2.  adopt hot circulating system,save energy effectivly.

3. Teflon screen belt , customers' designs are welcome

4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.

5.Adjustable belt speed and tunnel temperature controls.

 Parameters:

1

Conveyor length :5000*

2

Conveyor width:800mm

3

machine size: (L)5100x(W)1250x(H)1260mm  Hight of the entrance :120mm

4

working power: AC 380V 50HZ

5

Temperature adjustment: 0-200 Centigrade

6

constant temperature will be 2º C more or less

7

temperature resolution: 1º C

8

Belt speed adustment: 0-10M/MIN

9

 Gross weight: 420KG

Warranty

For all our machines, we provide one-year warranty.
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
Any warranty shipping cost to us is responsible by buyer.
Any shipping cost to buyer is responsible by us.





Price Terms︰ EXW PORT OF SHENZHEN CHINA
Packing︰ PLYWOOD CASE
Lead Time︰ 15 DAYS AFTER PAYMENT
Standards Certificate︰ ISO-9001
Application area︰ DRYING plastic products ,metal ink .spary painting ing solvent INK ,IR DRYING TUNNER
Gross Weight︰ 600KG
Main Parts︰ ceramic heating tube & Quartz Heating tube

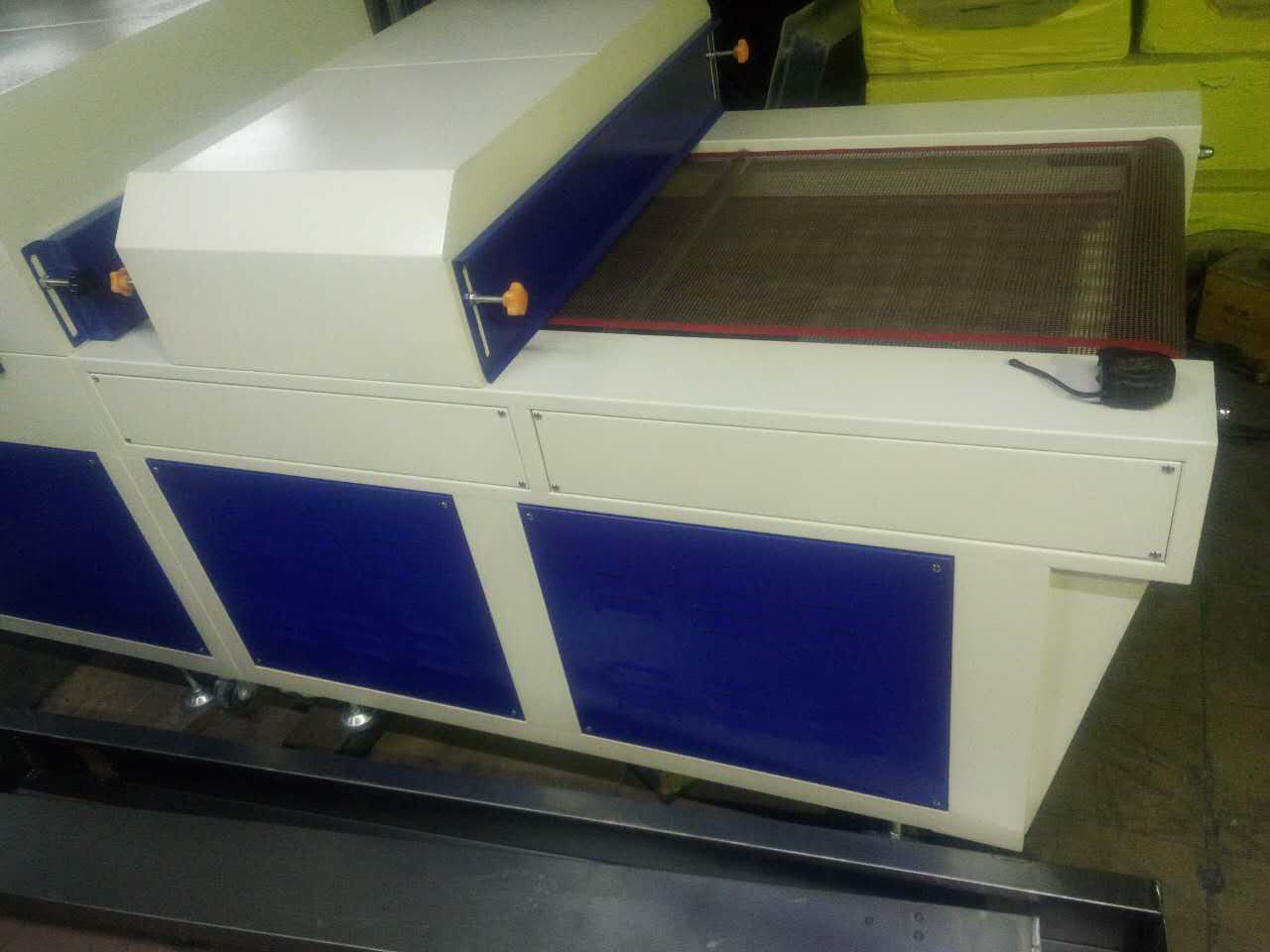

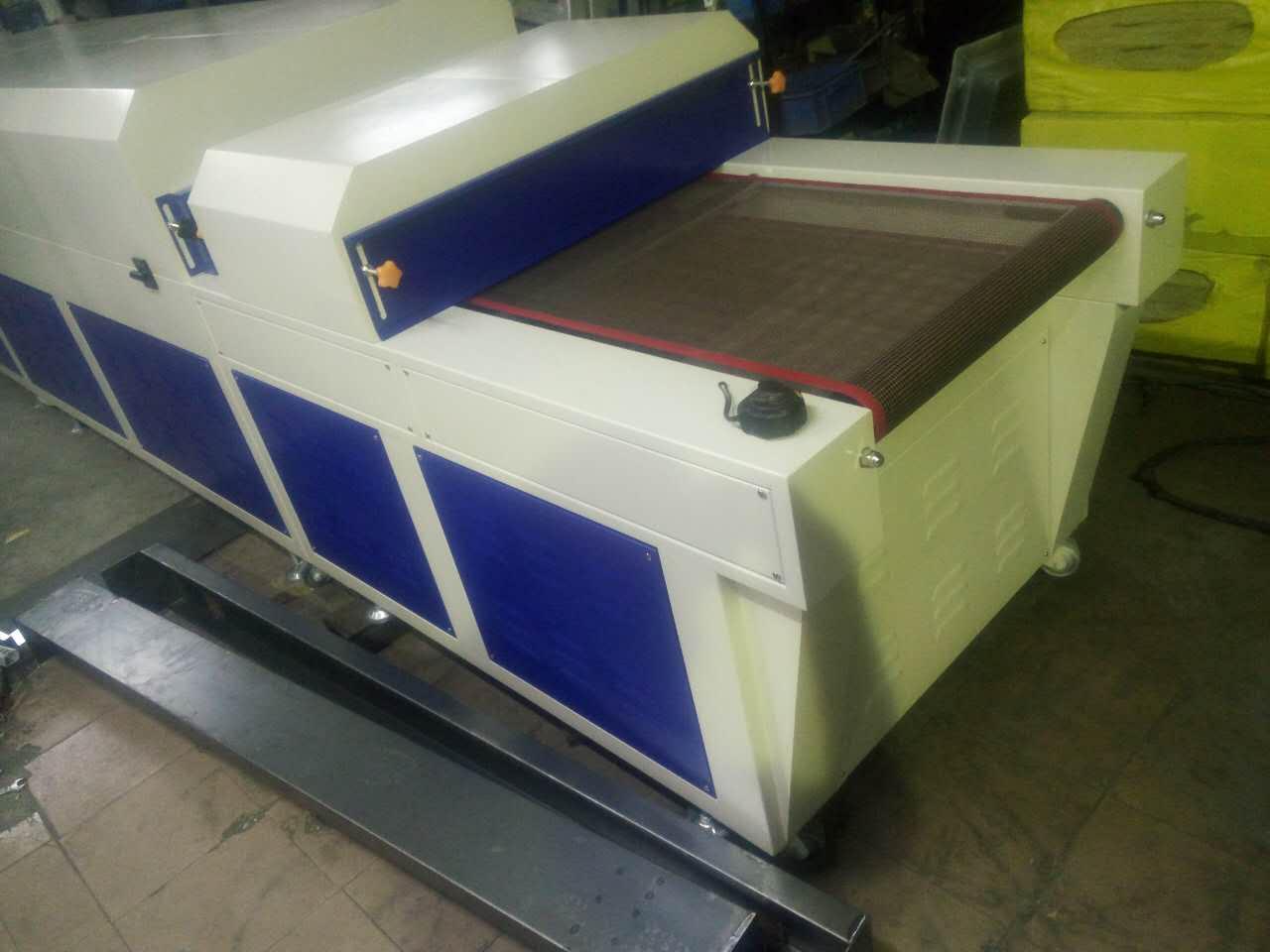

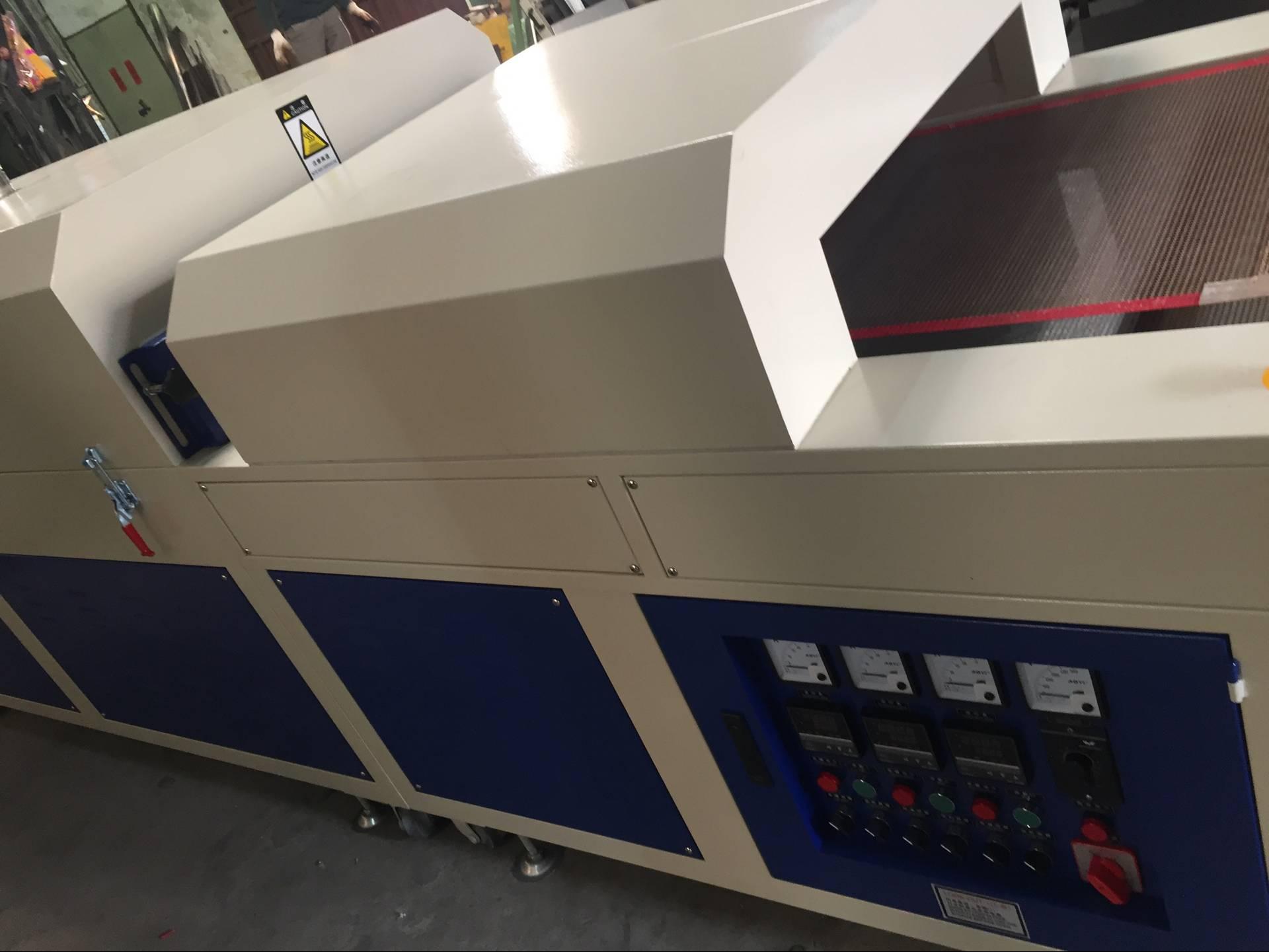

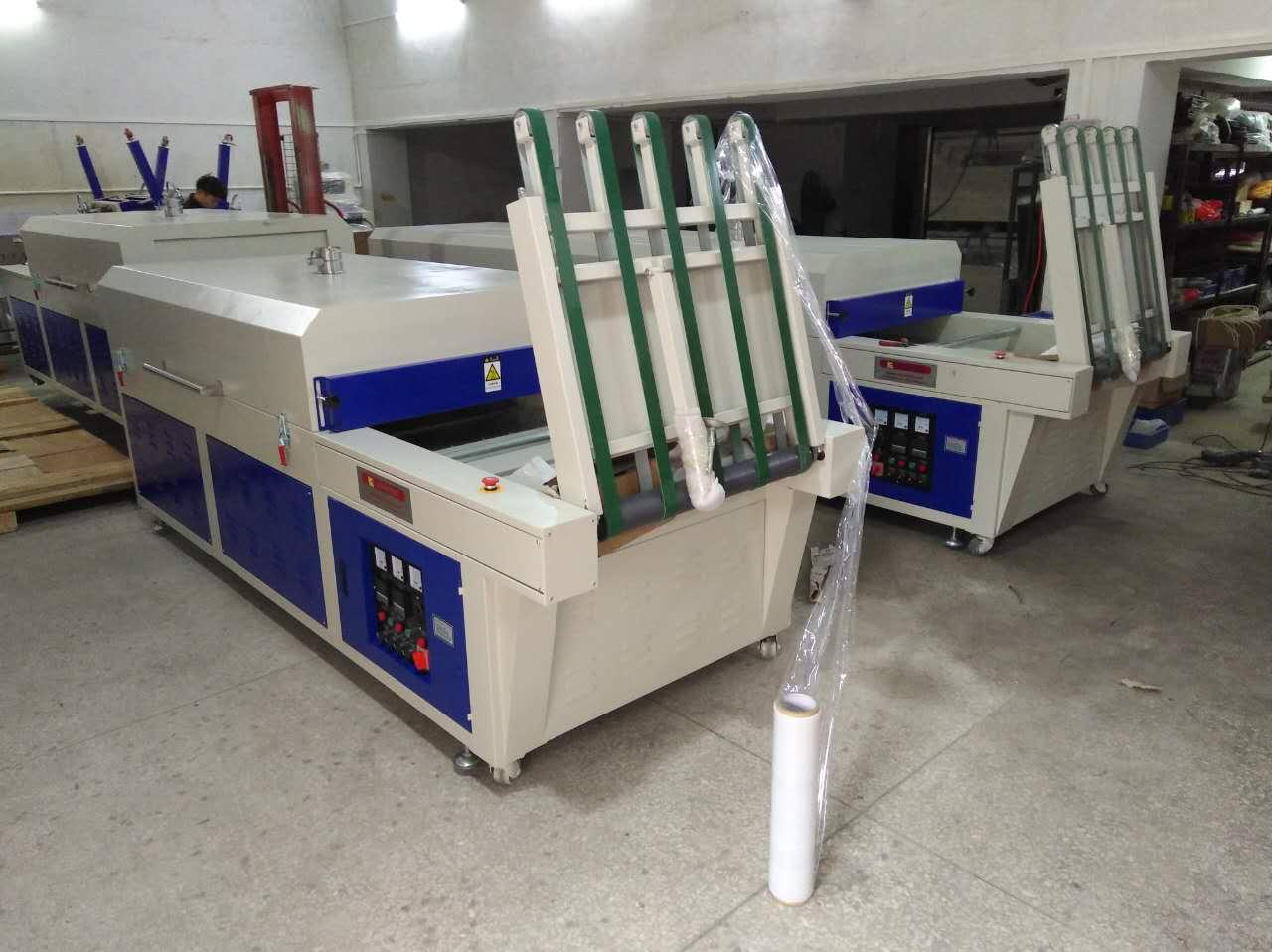

Product Image
